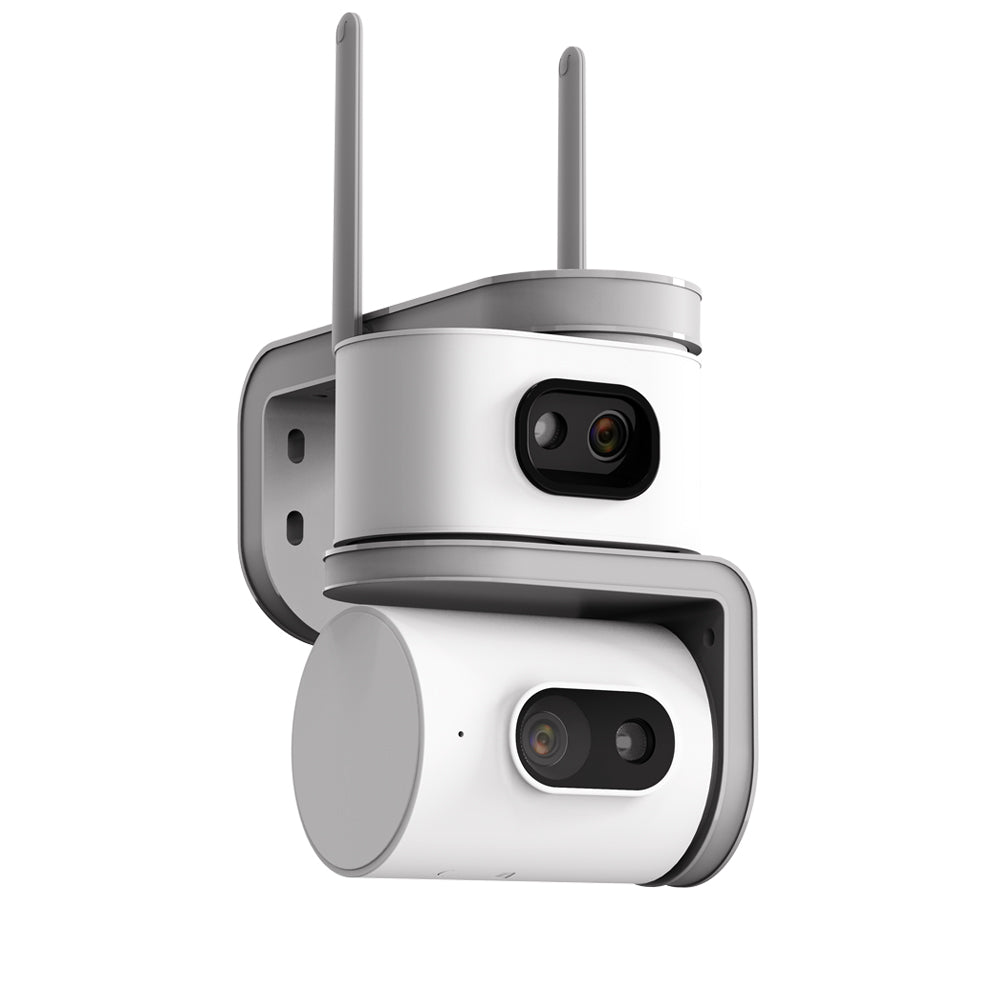

QD01 2MP+2MP HD WiFi PTZ Camera Dual lens Dual Screen IP Camera PIR Motion Detect Two-way Audio IP66 Waterproof Outdoor Security Wireless Camera
Description
Specifications:
Model |
QD01 |
|
APP |
ICM365 |
|
operating system |
Compression technology |
H. 264 compression algorithm 32Kbps~2Mbps |
video |
Master control chip |
Multi-party HC17231 |
sensor |
0.1Lux%/F1.2 (color): 0.01Lux/F1.2 (black and white) |
|
resolution |
2 million+2 million pixels |
|
frame rate |
1-25fps |
|
video format |
PAL |
|
signal-to-noise ratio |
≥38dB |
|
CMOS performance |
Support automatic white balance, automatic gain control, and automatic backlight compensation |
|
Lens / Viewing Angle |
Horizontal 355 degree viewing angle, vertical 90 degree viewing angle, electronic pan tilt monitoring, 4MM lens |
|
Compression type |
Baseline Profile / Main Profile / High Profile |
|
Coding Standards |
Built-in omnidirectional noise-cancelling microphone and speaker, supporting bidirectional real-time audio transmission, |
|
audio |
audio input |
1 built-in -38dB microphone |
audio output |
Built in 1 speaker 8 ohms 1W |
|
LED light |
2 pieces of 850 infrared+white light |
|
Panoramic features |
multi-purpose |
Infrared mode full-color mode |
Panoramic Display Mode |
Multiple display modes, including horizontal, vertical, and quad screen |
|
power supply |
power supply |
DC 12V |
interface |
12V external power supply |
|
Video Management |
Recording method |
Manual recording, alarm recording, and whole-day recording |
video storage |
Cloud storage services: Supports Micro SD card (up to 128GB) |
|
module |
WiFi5995 IEEE802.11b/g/n |
|
network |
WIFI |
2.4GHz single frequency 10Mbps/100Mbps |
Platform Integration |
Support P2P and forwarding (use forwarding after purchasing cloud services; ordinary users use P2P) |
|
call the police |
audible alarm |
support |
intelligent tracking |
support |
|
Custom detect area |
support |
|
Sound detect |
support |
|
motion detect |
support |
|
System Configuration |
IOS 7.0, Android 3.0 or above |
|
System Requirements |
Platform Monitoring |
Support real-time monitoring on Android, Apple, tablet, and PC clients |
Onvif Protocol |
Support ONVIF protocol |
|
other |
Household electricity supply |
Household AC110~220V |
power consumption |
LED infrared 1.4W |
|
Operating Humidity |
-10 ℃~45 ℃, humidity less than 95% (no condensation) |
|
single weight |
0.25KG |
|
Product dimensions in cm |
||
