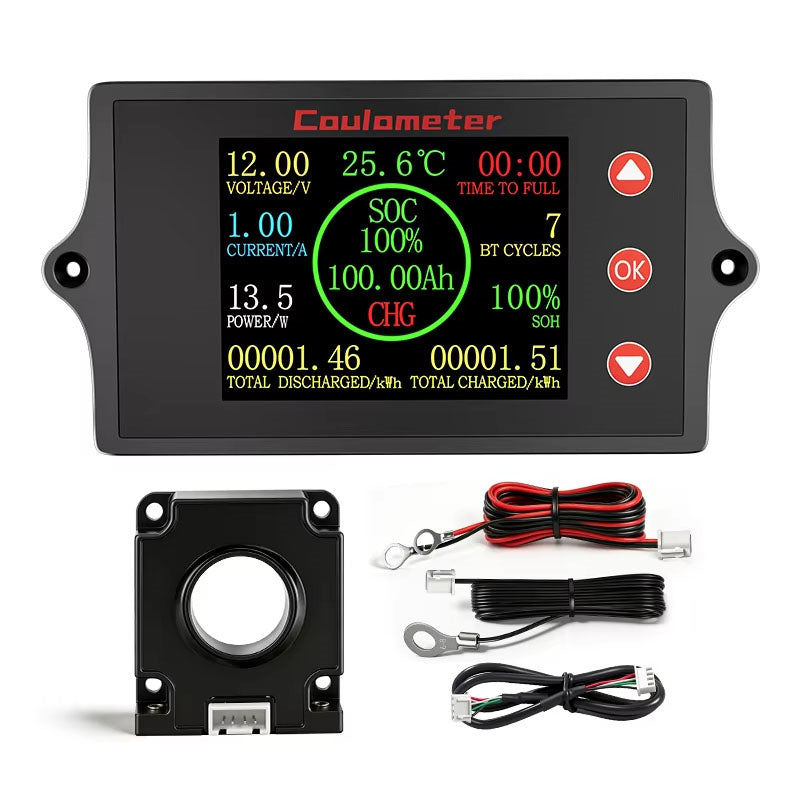

PZEM-049 Universal Battery Monitor Hall Coulometer 8-100V 500A LCD Display Current Voltage Capacity Indicator

Specification

Model: PZEM-049

Voltage Range: DC 8-100V

Current Range: 0-500A

Display: 2-inch TFT dot matrix LCD

Main Functions: Voltage / Current / Power / Capacity / Temperature & SOC display / Alarm

Accuracy: ±1%

Temperature Range: -30°C~105°C

Protection Level: Splash-proof panel

Installation Method: Embedded installation

Language Support: Chinese / ENGLISH

Interface: External temperature sensor, XH Port

Features

1. Professional-grade coulometer provides high-accuracy, bidirectional current readings for comprehensive power analysis.

2. A clear 2-inch TFT dot matrix LCD screen displays all critical battery data in real time.

3. All-in-one monitor for voltage, current, power, capacity, temperature, SOC, SOH, and cycle count.

4. Features a configurable alarm function to provide alerts for key battery parameters, enhancing system safety.

5. Monitors battery temperature with an external probe and tracks state of health (SOH) for better battery maintenance.

Package included

1 x PZEM-049 Coulometer Display

1 x Hall sensor (Optional: 100/300/500 A)

1 x XH data cable (Optional: 0.5/2 m)

1 x 3m temperature sensor

1 x 2m OT battery cable
