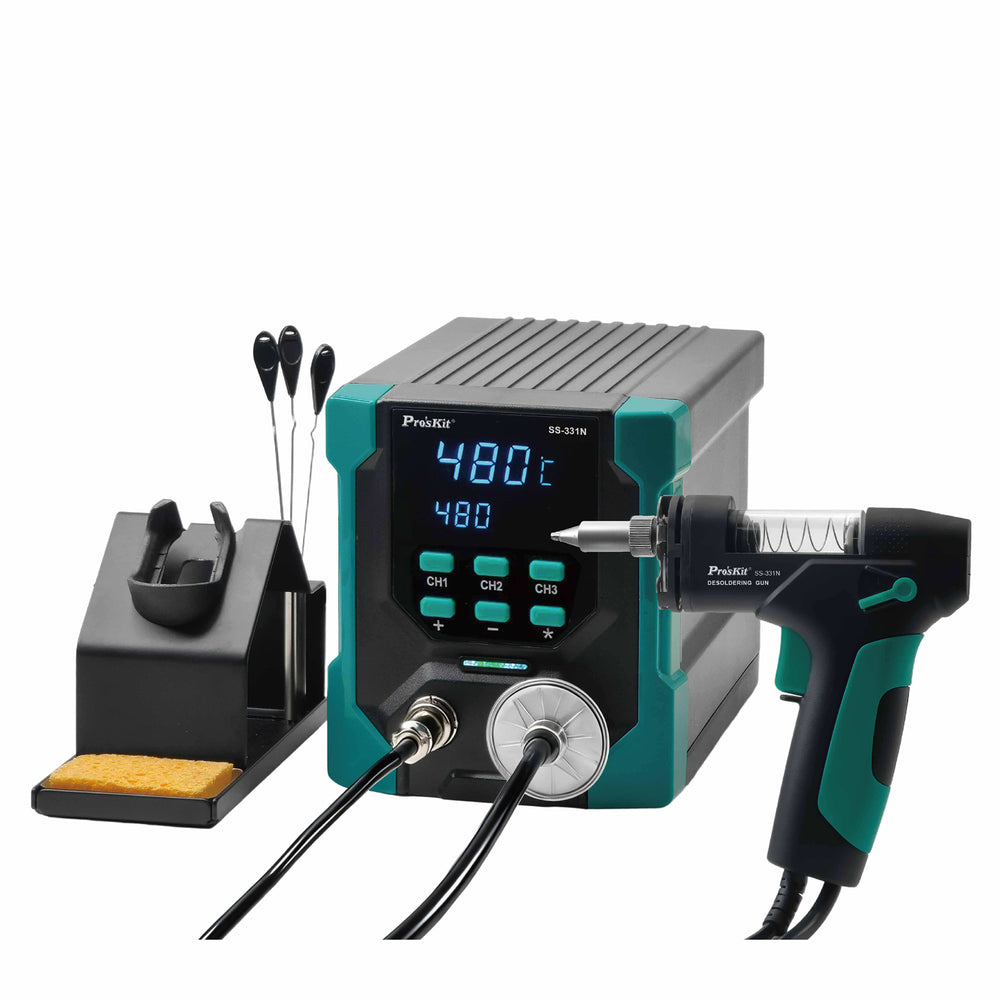

Pro'sKit SS-331NH Desoldering Station 160W Digital Vacuum Solder Sucker BGA Rework Station with LED Display 480C Adjustable Temperature Fast Heating Suction Pump and 3 Spare Tips for Professional Electrical Repair and PCB Desoldering
$157.99
In Stock
Description
Specifications:
Model: SS-331NH
Voltage: 220V-240V ~ 50/60Hz
Power Consumption: 160W
Soldering Power: 150W
Temperature Range: 160°C ~ 480°C (320°F ~ 832°F)
Vacuum Pressure: ~600mm Hg
Heating Element: Ni-Cr Heater
Suction System: Air Pump + Solenoid Valve
Display: Large LED Screen
Temperature Units: Celsius (°C) / Fahrenheit (°F)
Station Dimensions: 130 x 190 x 150 mm
Weight: Approx. 1.3kg
Features:
1. High-Power Rapid Heating: The 160W industrial-grade system with a Ni-Cr element ensures fast heat-up and stable temperature control, ideal for lead-free desoldering on multi-layer boards.
2. Precision Vacuum Suction: Utilizing an air pump and solenoid valve system, it delivers instant 600mm Hg suction power, ensuring clean solder removal in a single pass.
3. Smart Memory Channels: Features three programmable preset channels (CH1/CH2/CH3), allowing users to switch between frequently used temperature settings instantly for enhanced workflow efficiency.
4. Intuitive Digital Interface: A clear LED display provides real-time temperature monitoring and easy calibration, while the built-in sleep mode conserves energy and extends tip life.
5. Ergonomic Professional Design: Engineered for comfort during extended use, the unit includes customizable delayed suction and pump delay settings to prevent clogging and optimize performance.
Package Included:
1 x Pro'Skit SS-331NH Main Station
1 x Desoldering Gun
3 x Spare Tips (ø1.0 / ø1.2 / ø1.5mm)
3 x Cleaning Tools (ø0.7 / ø0.9 / ø1.2mm)
3 x Filter Sponges (ø16.8mm)
2 x Suction Filters
1 x Stand with Cleaning Sponge
1 x Power Cord
1 x User Manual
