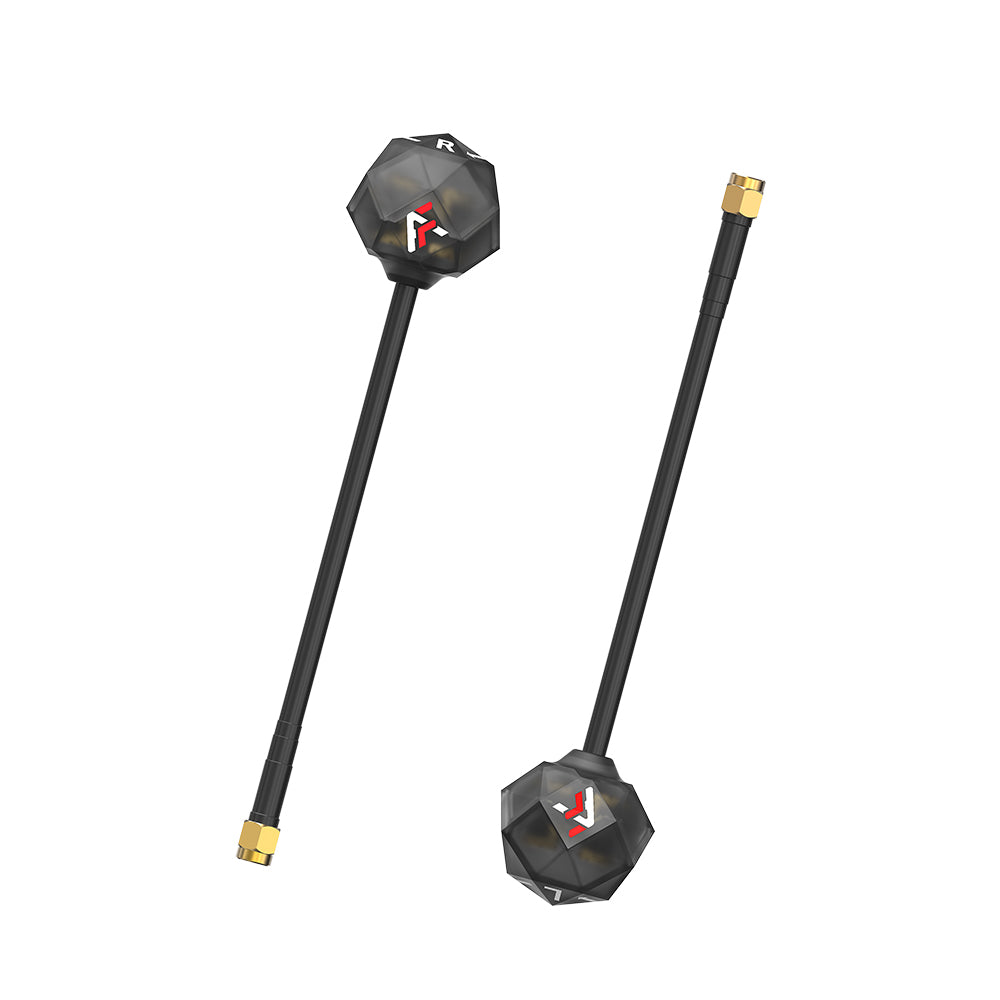

Prism V2 Antenna for Long Range FPV 5.8G High Gain LHCP/RHCP 5dbi FPV Antenna, LDS Tech + Calibrated for Stable Signal SMA Male 60-150mm for FPV RC Drones - Black / 60mm / RHCP

Specification:
Product Name: Prism V2 Antenna
Color: Red / Black
Length: 60mm(Pro)/100mm(Pro)/150mm(Max)
Center Frequency: 5.76GHz(5760)
Gain: 4dbi+(Pro),5dbi+(Max)
Bandwidth: 5.6GHz-6GHZ
Radiation Efficiency: 85%
VSWR: 1.2
Axial Ratio: ~1
Cross-Polarization Rejection:-25DB
Interface: SMA Male
Weight: 8g/10g/18g
Production Process: LDS

Features:
- Advanced LDS Technology: Precision manufacturing ensures high performance with minimal energy loss and consistent signal calibration across all - frequencies.
- Enhanced Gain Capability: Provides 4dBi+ (Pro version) and 5dBi+ (Max version) for extended range and clear signal transmission.
- Optimized Bandwidth: Operates smoothly within a frequency range of 5.6GHz-6GHz for uninterrupted long-range connectivity.
- Compact and Versatile Design: Available in lengths of 60mm, 100mm, and 150mm with a lightweight build of 8g/10g/18g for easy installation.
- Unique Color Options: Choose from Red, or Black to match personal preferences while ensuring standout aesthetics.

Package included:
1 x Prism V2 Antenna
