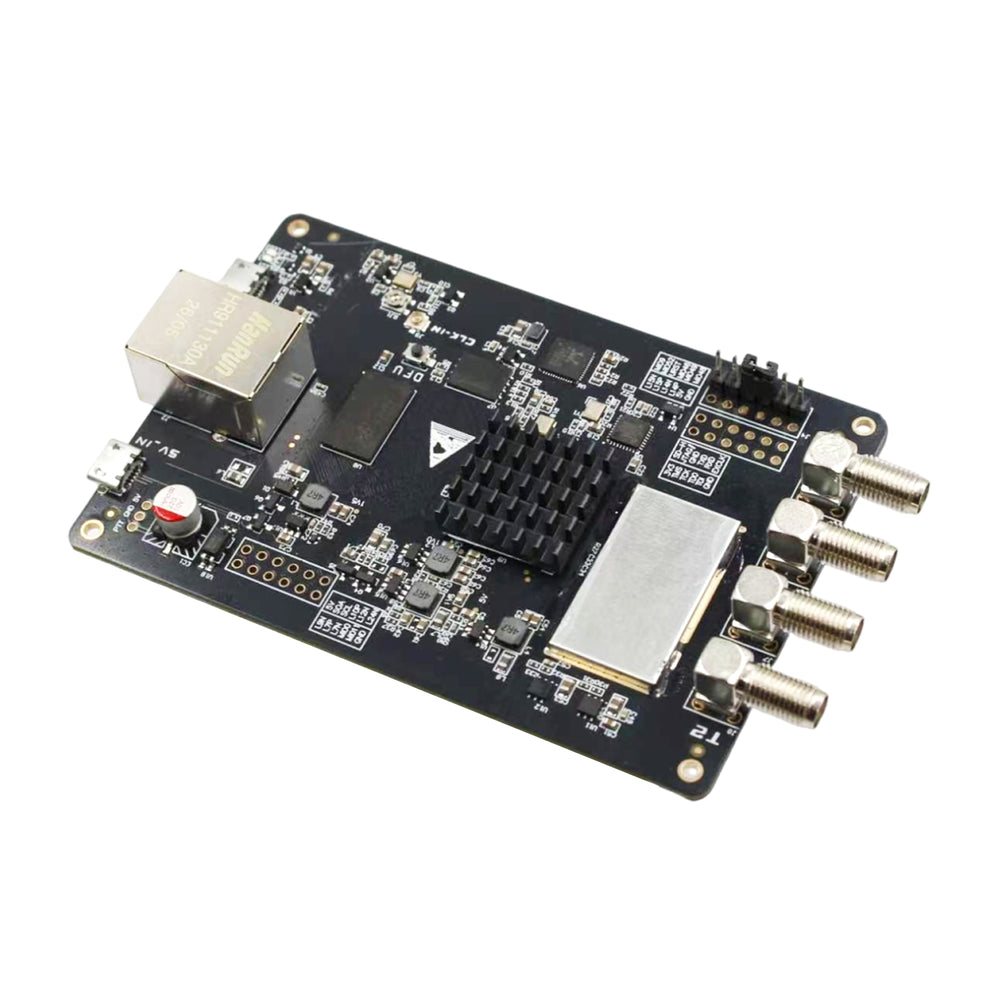

Pluto+ 70MHz~6GHZ AD9363 SDR Radio Receiver Dual Channels TX RX High-Speed Onboard Gigabit Ethernet Development Board Kit - Black

Specification:
Product Name: PLUTO+ SDR Transceiver Radio
RF Frequency Range: 70 MHz ~ 6 GHz
Channels: 2 transmit (TX), 2 receive (RX)
ADC/DAC Chip: AD9363 (unlockable to AD9361 or AD9364)
Reference Clock: 40 MHz VCTCXO, 0.5 ppm stability
SoC: Zynq7020 FPGA (28k logiccells)
RAM: 512 MB
Flash Memory: 32 MB
Ethernet: 1000 Mbps Gigabit Ethernet (HR911130A connector)
USB: USB 2.0 OTG, Micro USB interface
Micro SD Card: Supports SD card boot-up
DC Power Input: 5V ±0.5 V, 2A via micro USB (5V_IN)
Board Size: 100 mm x 67 mm (3.9 in x 2.6 in)

Features:
1. Wideband software-defined radio platform covering 70 MHz to 6 GHz for TX/RX experiments.
2. Dual independent transmit and dual independent receive channels for MIMO applications.
3. Onboard Gigabit Ethernet port for high-speed network connectivity and remote operation.
4. Micro SD card slot enabling standalone boot and storage expansion.
5. Integrated 40 MHz VCTCXO with fine frequency calibration for precise RF work.
6. Multiple expansion headers and I/O pins for custom development, JTAG, and external clock input.

Package Includes:
1 x PLUTO+ SDR Transceiver Board
2 x USB Cable
