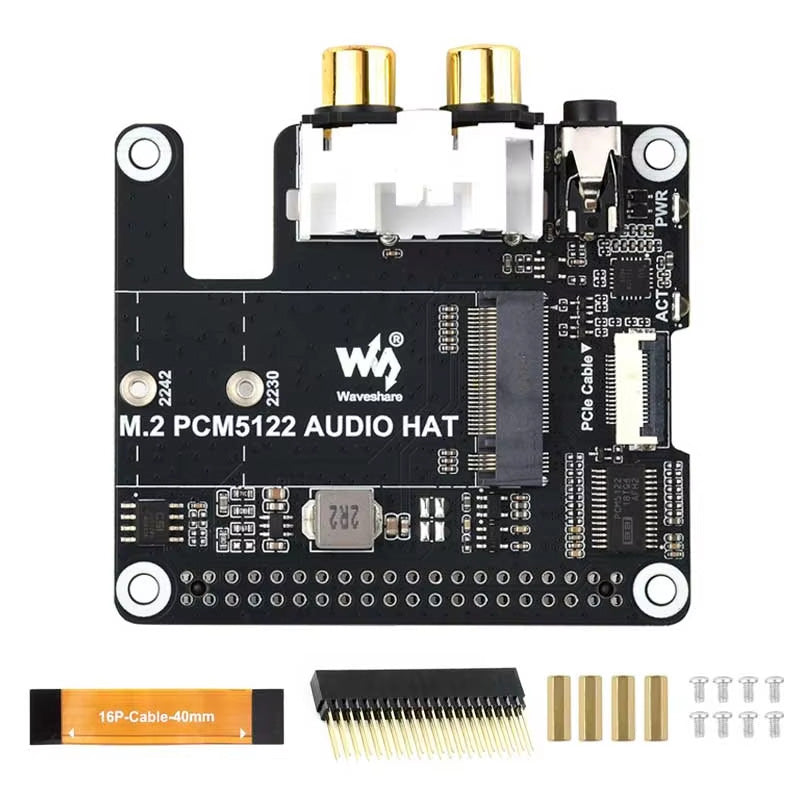

PCIe To M.2 HAT With I2S Audio Extension For Raspberry Pi Supports NVMe Protocol Solid State Drive PCM5122 DAC Onboard RCA Connector Headphone Jack - Black
$21.15
In Stock
Description
Specifications:
Product name: PCIe to M.2 HAT with I2S Audio (Designed for Raspberry Pi 5)
Interface base: Raspberry Pi 40PIN GPIO header
Compatibility: Raspberry Pi series boards
DAC chip: PCM5122 professional stereo DAC
Control interface: I2C
Audio transmission: I2S
Audio outputs: 3.5mm headphone jack; RCA connector
Sampling frequency: up to 384KHz
Audio resolution: up to 32-bit
M.2 support: 2230 / 2242 size M.2 Solid State Drive or M.2 M KEY AI module
M.2 interface: M KEY, up to 8 Gbps data rate
Operation: Driver-free, plug and play
Features:
Designed for Raspberry Pi 5 and compatible with Raspberry Pi series via 40PIN GPIO.
PCM5122 stereo DAC with I2C control and I2S audio for clear playback.
3.5mm headphone jack and RCA connector for flexible audio output.
Supports up to 384KHz sampling and 32-bit audio data.
M.2 M KEY slot supports 2230/2242 SSDs or M KEY AI modules, up to 8 Gbps.
Package included:
1 x PCIe to M.2 HAT with I2S Audio
