    Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission
    Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission

    Partom 1.2GHz 200mW 12CH Wireless FPV Transmitter Fox‑R02 Receiver Combo SMA Male for RC Drone Airplane Long Range AV Transmission

    $36.99
    In Stock

    Description

    • Camera Resolution: Without
    • RC Drone Spare Parts: FPV Receiver
    • Frequency: 1.2/1.3Ghz
    • Applicable User: Beginner
    • Interface Type: SMA
    • Application: Other
    • Power: 0-200mw
    Description: Brand Name: Partom Item Name: FPV Transmitter + Receiver Combo Specifications of FPV Transmitter:
     Item No.: CQL-200TX Frequency: 1.2GHz Channel: 12 Power: 200mW
    Baud Rate: 50000bps Working Voltage: DC 12V Dimension: 29x24x9mm Weight: 15g Transmission Signal: Video / Audio (Synchronize)
    Transmission Distance: 100-200m Connector：SMA Male
    Specifications of FPV Receiver:
     Item No.: Fox-R02 Frequency: 1.2GHz Channel: 12 Receive Signal: Video / Audio (Synchronize) Sensitivity: -85DB
    Voltage Input: DC12V
    Working Current: 250mA
    Video Output: 1Vp-p Signal Output: 1Vp-p Demodulation: FM Operating Temperature: -20℃ ~ +60℃ Operating Humidity: 85%RH Storage Temperature: -40℃ ~ +80℃
    Size : 115x60x20mm
    Weight : 130g
     Connector：SMA Male

    Receiver Frequency Table:
    Channel Frequency Channel Frequency Channel Frequency
    CH0 0.910G CH1 0.980G CH2 1.010G
    CH3 1.040G CH4 1.080G CH5 1.120G
    CH6 1.160G CH7 1.200G CH8 1.240G
    CH9 1.280G CH10 1.320G CH11 1.360G

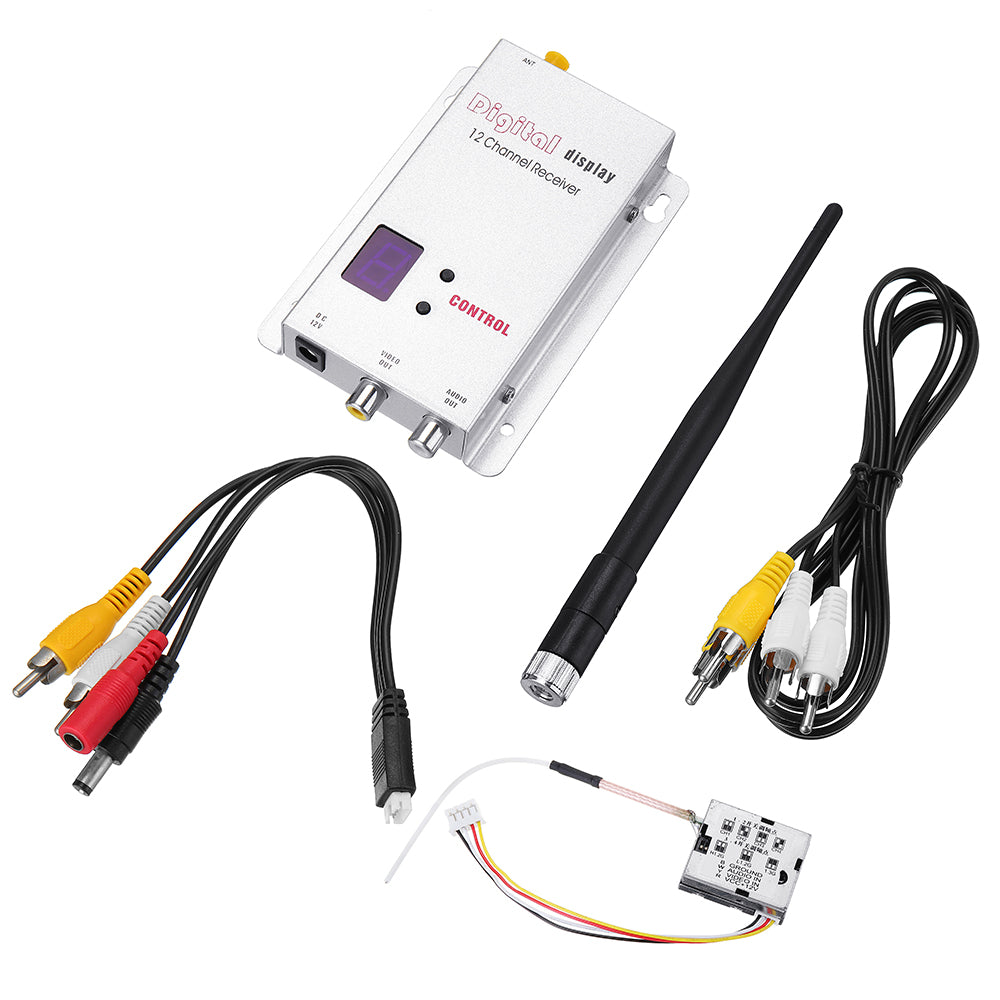

    Package Included: 1x FPV Transmitter 1x FPV Receiver 1x Antenna 2x Cables
