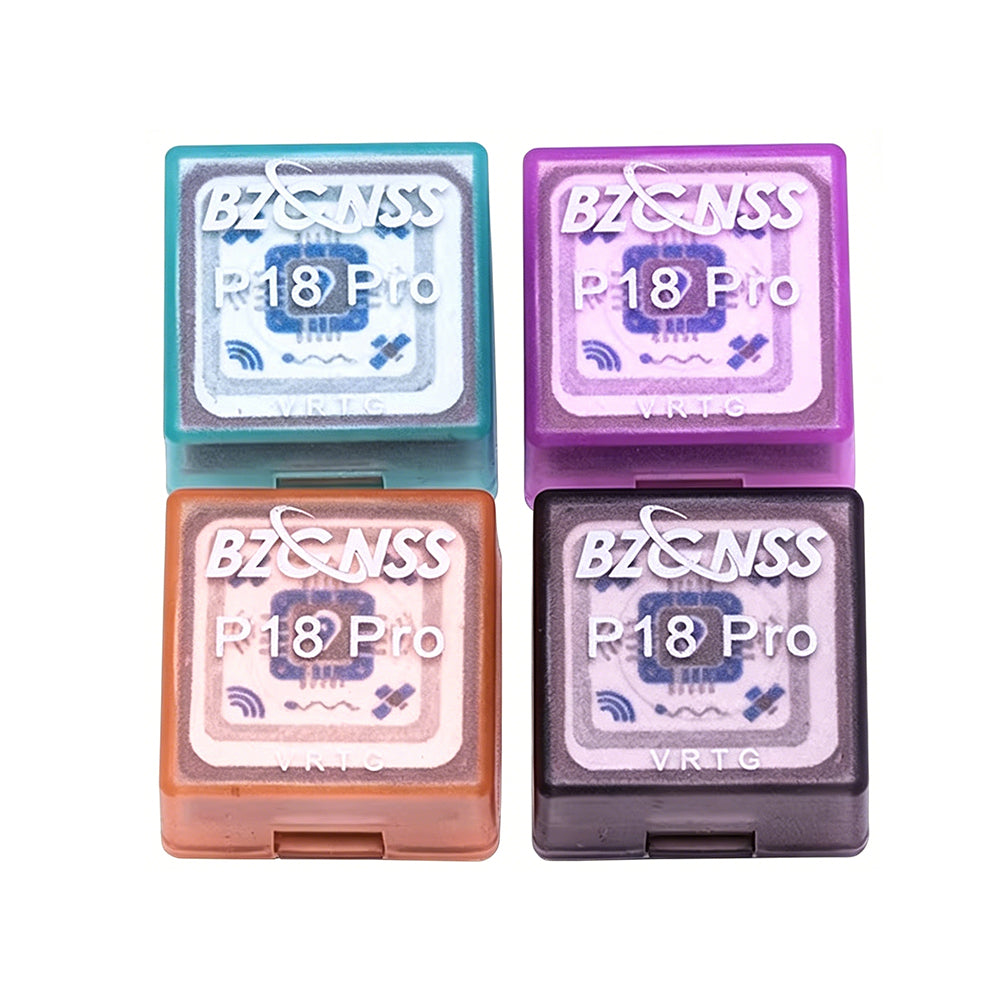

P18 Pro GPS Module 5V with SH1.0 4-pin FPV Return Rescue Support Five-mode Positioning for FPV Racing Drone RC Airplane Mulit-Rotor Quacopter - Black

Model

P15 PRO

P18 PRO

P25 PRO

Software support

Betaflight, INAV, AP, MP

Betaflight, INAV, AP, MP

Betaflight, INAV, AP, MP

Cold start

≤20S

≤20S

≤20S

Hot start

≤1S

≤1S

≤1S

Maximum search star

50+

50+

50+

Baud rate

115200

115200

115200

Frequency

10HZ

10HZ

10HZ

Supports satelite systems

Five-mode positioning

Five-mode positioning

Five-mode positioning

Working voltage

5V

5V

5V

Port line

SH0.8 spacing 4-pin socket

SH1.0 spacing 4-pin socket

SH1.0 spacing 6-pin socket

Is there a compass

No

No

Yes

Size

17.3mm*17.3mm*9.3mm

20.3mm*20.3mm*10.3mm

27.2mm*27.2mm*13.9mm

Weight (without wire)

6.8g

8.4g

13.9g

Tracking sensitivity

-167dBm

-167dBm

-167dBm

Recapture sensitivity

-160dBm

-160dBm

-160dBm

Cold start sensitivity

-148dBm

-148dBm

-148dBm

Hot start sensitivity

-160dBm

-160dBm

-160dBm

Horizontal accuracy

2m(CEP50)

2m(CEP50)

2m(CEP50)

Speed Accuracy

0.05m/s

0.05m/s

0.05m/s

Temporal heading angle accuracy

0.3deg

0.3deg

0.3deg

Time accuracy

RMS 30ns99% 60ns

RMS 30ns99% 60ns

RMS 30ns99% 60ns

Auxiliary positioning

≤2s

≤2s

≤2s

Second pulse

0.25Hz–10MHz

0.25Hz–10MHz

0.25Hz–10MHz

Height

<80000m

<80000m

<80000m

Speed

<500m/s

<500m/s

<500m/s

Maximum acceleration

≤4g

≤4g

≤4g

Operating temperature

-40°C~+85°C

-40°C~+85°C

-40°C~+85°C

Storage temperature

-40°C~+85°C

-40°C~+85°C

-40°C~+85°C

PPS lamp

Steady light before positioning,

flash after positioning

Steady light before positioning,

flash after positioning

Steady light before positioning,

flash after positioning
