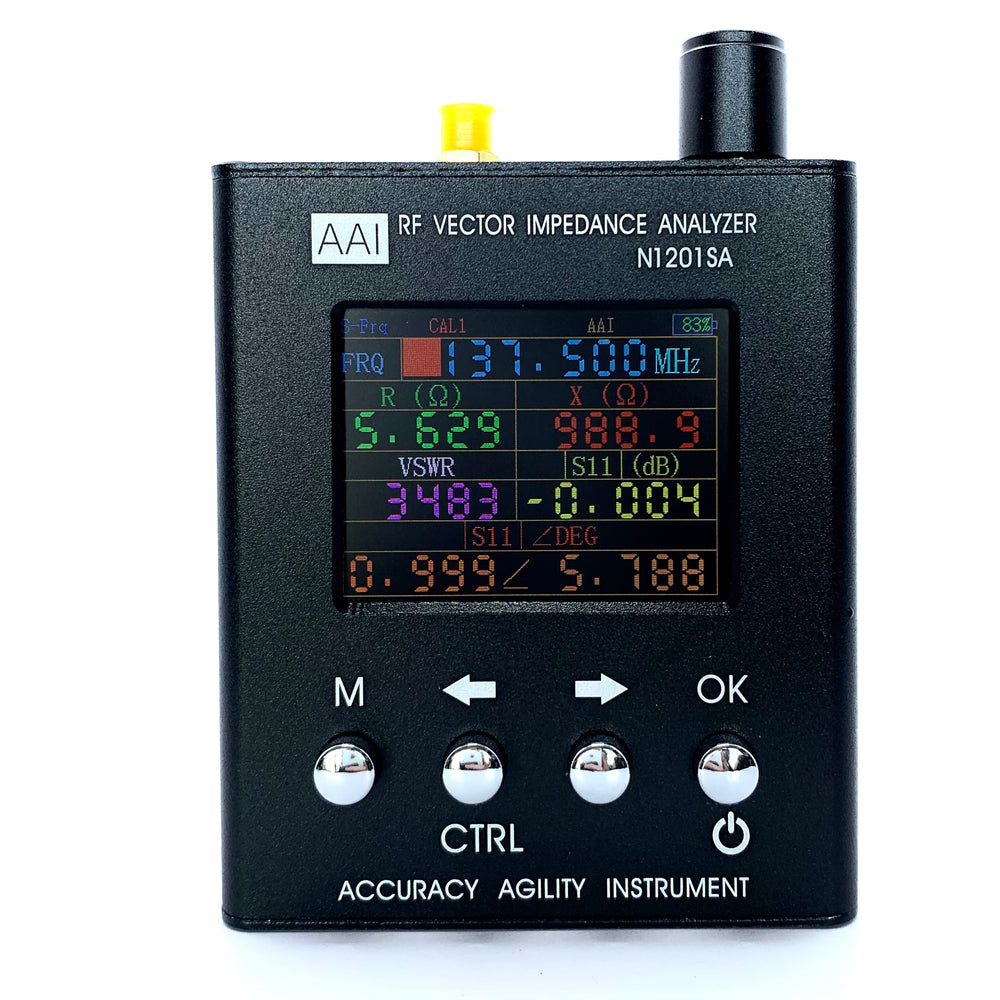

ORIGINAL English Verison N1201SA 137.5-4400MHz UV RF Vector Impedance ANT SWR Antenna Analyzer Meter Tester

Description:
Model: N1201SA
Working Frequency: 137.5MHz～4400MHz
Frequency Step: 1kHz
Display: 2.4-inch TFT, 320×240 (QVGA) resolution
Battery Capacity: 2000mAh (7.4Wh)
Power Consumption: <1.5W
Charging Current: 400mA
Charger Port: USB (for charging only)

Measurement Related:
Measurement Parameters: Resistance, Reactance, Standing Wave Ratio (VSWR), S11
Resolution: Four significant digits
Frequency Accuracy: <±3ppm
Connector: SMA-K

Measurement Range:
Impedance: 0.1Ω～1000Ω (absolute impedance)
Standing Wave Ratio (VSWR): 1.000～65
S11 (dB): 0dB～-60dB

Single Point Measurement Error:
Impedance: < Absolute Impedance ×5%±0.1Ω (Z<200Ω, <1.5GHz)
VSWR: < Effective Reading ×10%±0.1
S11 (dB/°): 0.1dB/5° (0dB~-10dB); 1dB/10° (-10dB~-20dB); 5dB/20° (-20dB~-40dB)

Other Performance:
Directivity: <35dB (140MHz～2GHz) (Calibrated); <30dB (2GHz～2.7GHz)
Scan Points: 280
Output Level: -18dBm
Work Temperature: 0℃～40℃
Atmospheric Pressure: 860hPa～1060hPa
Cable Length Measurement: None
Transmission Line Characteristic Impedance Measurement: None

Note: The appearance of different batches may vary slightly, but this does not affect the core functions and performance.

Package included:
1 x N1201SA Tester
