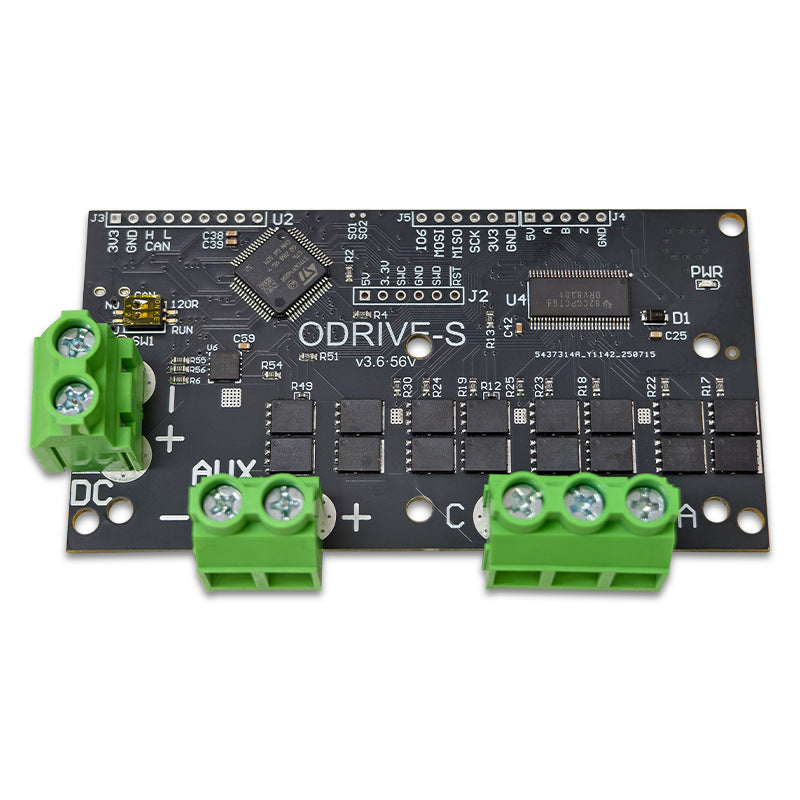

ODrive S V3.6 FOC BLDC Motor Controller 60A Support CAN PWM Pulse Encoder TLE5012B AS5047 AMT10X MT6816 ARM Cortex M4 - Black
$33.99
In Stock
Description
Specifications:
Model: ODrive-S V3.6-FOC-BLDC
Processor: ARM Cortex-M4 STM32F405RGT6
Max Current Output: 60A
Communication Interfaces: CAN, USART, PWM, pulse interface
Supported Encoders: TLE5012B, AS5047, AMT10X, MT6816, etc.
Temperature Sensor: Integrated board temperature sensor with overheat protection
Features:
1. High-Performance Floating Point Processor: Equipped with ARM Cortex-M4 STM32F405RGT6 processor for efficient and precise motor control with floating-point computation capabilities.
2. Robust BLDC Motor Support: Designed to drive brushless DC motors up to 60A operational current, making it suitable for demanding applications.
3. Multiple Communication Interfaces: Offers versatile connectivity options, including CAN, USART, PWM, and pulse interfaces to accommodate diverse integration needs.
4. Wide Encoder Compatibility: Supports various encoder types such as TLE5012B, AS5047, AMT10X, and MT6816, providing flexibility for different applications.
5. Active Thermal Monitoring: Built-in temperature sensor for real-time monitoring and integrated overheat protection to ensure operational safety.
Package Included:
1 x ODrive-S V3.6-FOC-BLDC Single Servo Motor Controller
1 x 40P Pin Header
