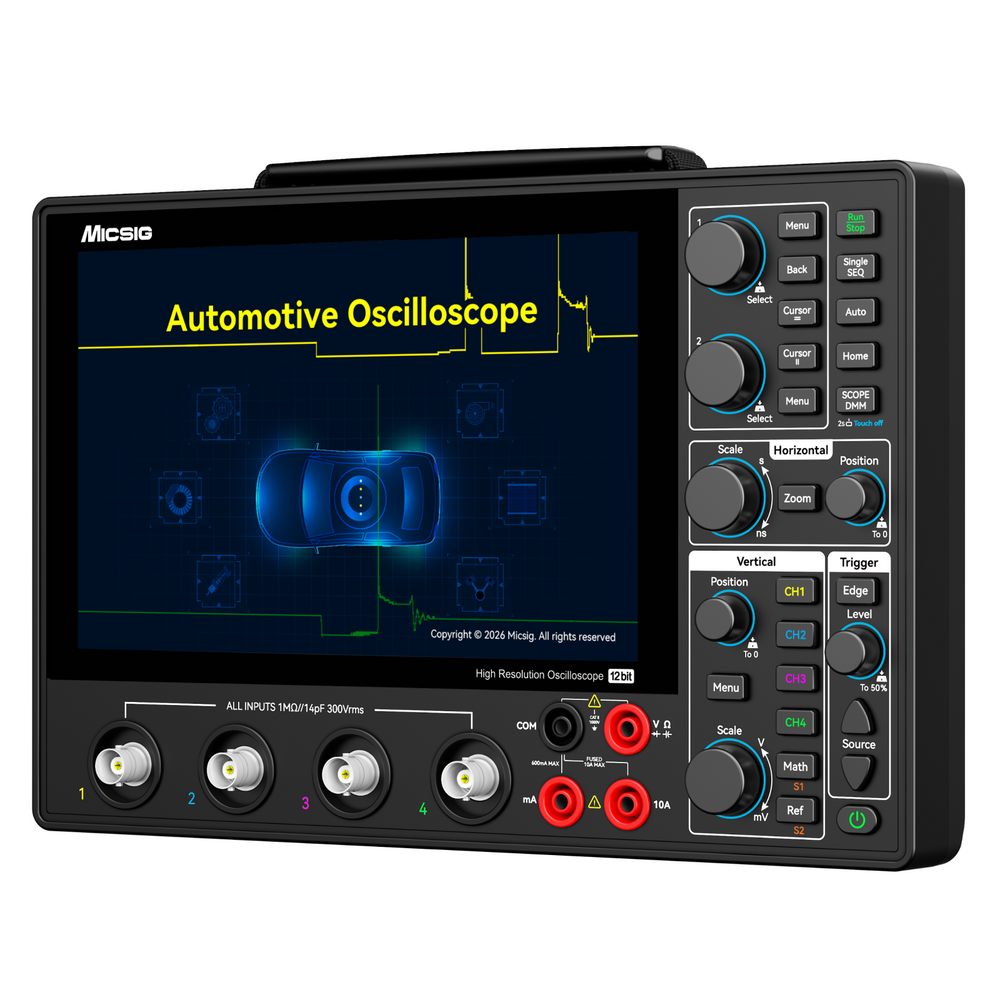

NEW Micsig AHO14-200 Automotive Oscilloscope 12bit 200MHz Bandwidth 1GSa/s Sampling Rate 4 Channels 110Mpts Memory 8 Inch Touch Screen
Description
Specification
Model: AHO14-200
Bandwidth: 200MHz
Rise Time: ≤1.75ns
Multifunction Meter Accuracy: 4⅚ Digits
Real-Time Sampling Rate: 1GSa/s
Analog Channels: 4
Memory Depth: 110Mpts
Vertical Resolution: 12bit
Max. Waveform Capture Rate: 50,000wfms/s
Support Test: Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests
Interfaces: USB 3.0 Host, USB Type-C, LAN,
Display: 8" TFT LCD capacitive touch screen, 1280*800 pixels
Battery: 3.7 V、16000mAh Lithium-ion battery Charging
Charging: Standard DC 12V adapter, supports Type-C 5V charging
Dimension: 265*174*31mm (Width × Height × Thickness)
Weight: 1.73kg
Features
1) 12bit high resolution automotive oscilloscope with 200MHz bandwidth and 1GSa/s real-time sampling rate.
2) Integrated 4⅚-digit multimeter for measuring voltage, current, resistance, continuity, diodes, and capacitance.
3) Pre-configured automotive diagnostic functions, compatible with all vehicle models.
4) Built-in 16000mAh lithium-ion battery and ultra-slim 3.1cm body for convenient field work.
5) Supports charging/start circuits, sensors, actuators, ignition, and network tests including CAN, CAN FD, LIN, Flexray, and K line.
Package included
Standard Kit:
1 x AHO1 Series Automotive Oscilloscope
2 x Passive Probe
1 pair x Multimeter Pen
4 x BNC-Banana Cable
2 pair x Flexible Piercing Needle
2 pair x Alligator Clips
1 set x Power Adapter
1 x Battery (built-in)
1 x Calibration Certificate
1 x Quick Guide Collection
Master (upgrade) Kit:
1 x AHO1 Series Automotive Oscilloscope
2 pair x Flexible piercing needle
1 pair x Multimeter Probe
2 x Passive Probe
1 pair x Multimeter Pen
4 x BNC-Banana Cable
2 pair x Alligator Clips
1 x Battery (built-in)
1 set x Power Adapter
1 x Secondary Ignition Probe
1 x Calibration Certificate
1 x Quick Guide Collection
1 x Suitcase
