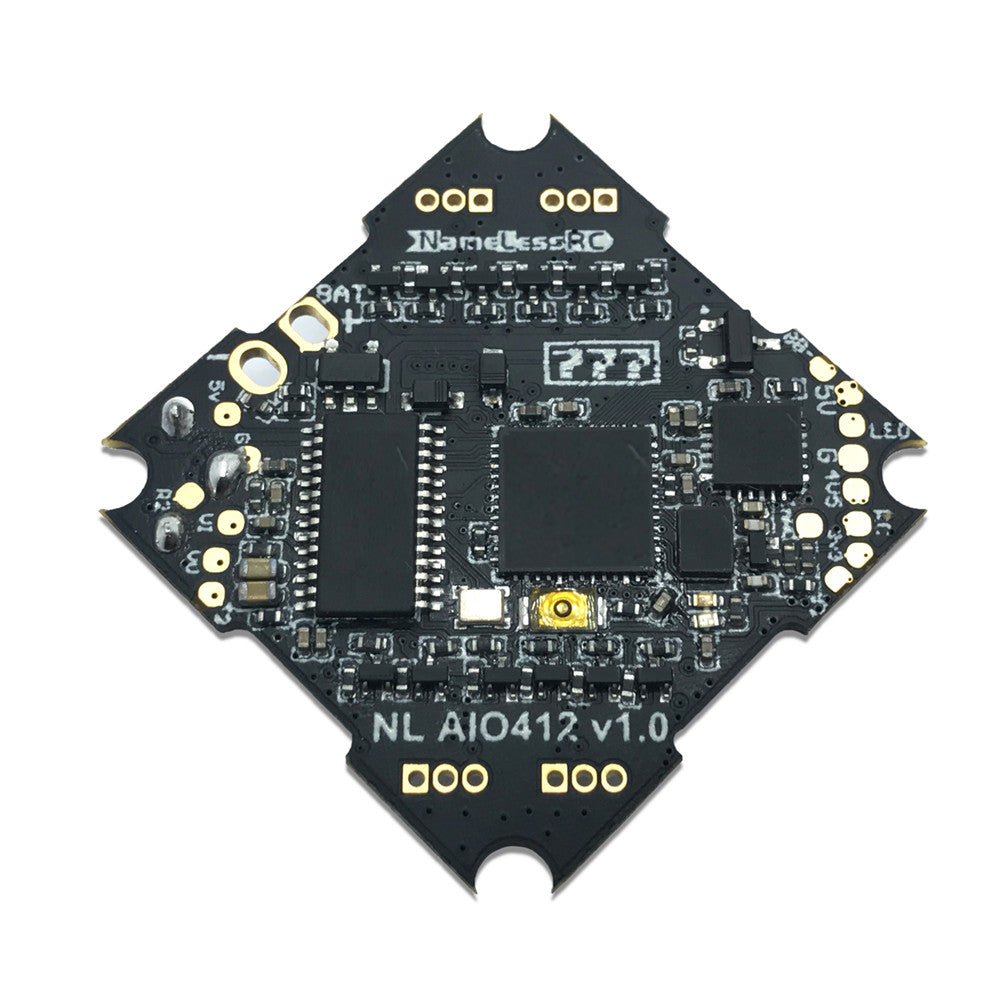

NameLessRC AIO412 F4 Flight Controller AIO OSD BEC & 12A BL_S 2-4S ESC for FPV Racing Drone

Specification:
Brand Name: NameLessRC
Model: AIO412
Item Name: F4 Flight Controller AIO OSD BEC Built-in 12A 4In1 ESC
Input Voltage: 2-4S Lipo / HV Lipo

CPU: STM32F411CEU6 (100MHZ)

Sensor: MPU-6000 (connected by SPI)
- Built-in Betaflight OSD
- Built-in 5V 2.5A BEC Output with LC Filter

- Built-in Current Sensor

Size: 28.5×28.5mm

Net Weight: 4.2g
- Support DSM2/X RX, Frsky XM/XM+ RX, Frsky R9M RX , Fu-taba RX, Flysky RX, TBS Crossfire Receiver

ESC Specification:

Power supply: 2-4S LiPo/LiPo HV ( 7.4-17.4V)

Continue Current: 12A

Burst current: 15A

Firmware: BLHELI_S

Motor Connectors: 1.25mm header pins connector

Default protocol: DSHOT600

Features:

- The largest support 4S Lipo HV battery, with Current meter

- F411 Flight Controller, BEC 5V 2.5A

- MPU6000 Gyroscope

- Include Buzzer pad

- Invert and non-invert SBUS port

- Light design

Package Included:
1x F4 Flight Controller Built-in 12A ESC Board
1x XT30 Connector Cable
4x Anti-vibration Standoffs
1x bag of Screws
4x Plug Connectors

NameLessRC AIO412 F4 Flight Controller AIO OSD BEC & Built-in 12A BL_S 2-4S ESC for Tinywhoop FPV Racing Drone
