    Descriptions:

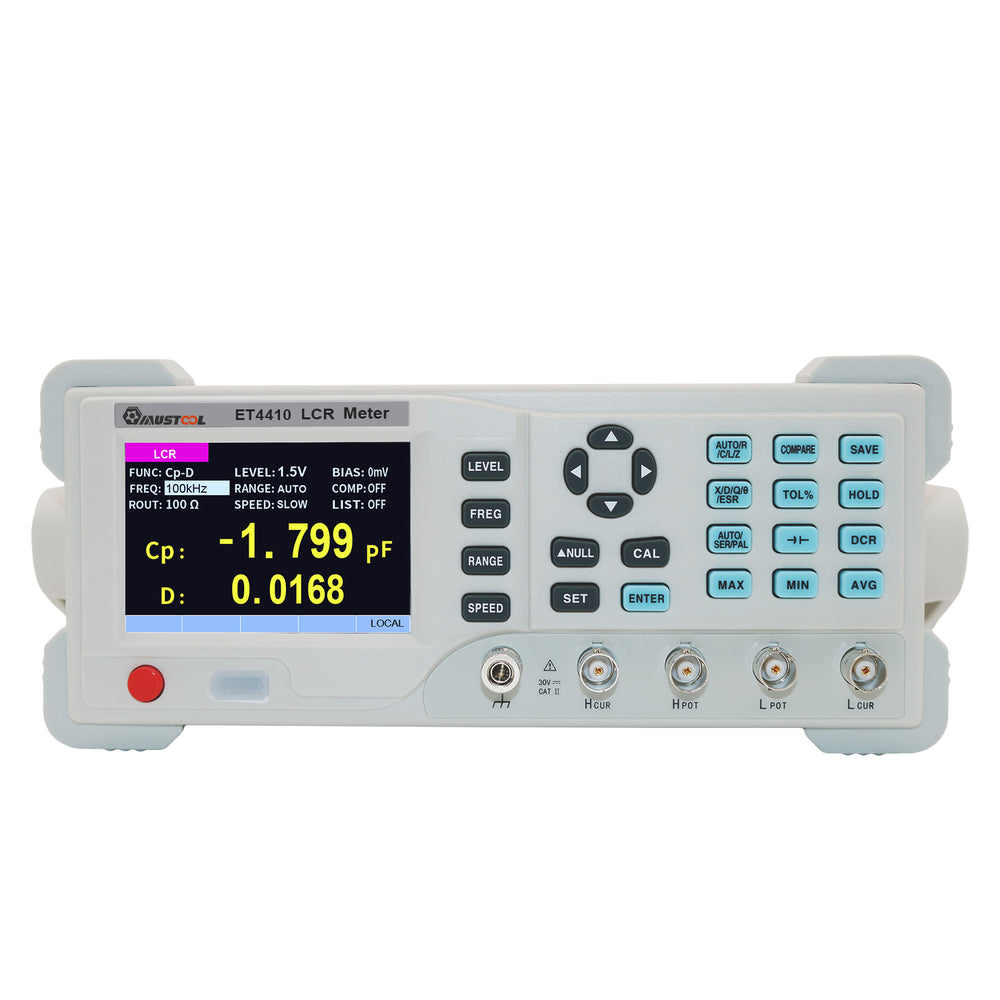

    Mustool ET4410 series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety of measurement parameters into one body. It is convenient for users to carry out remote control with USB and RS232 and also perform the sorting of components using handle. In function, it can not only adjust the output frequency and test level, but also record the value of components in the process of measurement. In the performance parameters, its basic accuracy reaches 0.2%.

    Features:

    ● Measurement frequency up to 100kHz
    ● Test level 100 ~ 2000mV
    ●Support the measurement of DC resistance and electrolytic capacitor
    ●Internal bias voltage output (1mV-1500mV)
    ●Automatic identification of component measurement
    ●3.5-inch TFT display, 5 and a half bits display
    ●USB, RS232 communication interface, Handle sorting
    ● Data recording function (maximum and minimum values, average value)    		 ● Support SCPI communication protocol
    ● Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users.
    ● Basic accuracy 0.2%
    ● Manual and automatic range
    ● Be equipped with open circuit and short circuit correction
    ● Comparator has sorting and alarm function
    ● Provide a variety of test ports
    Specifications:

    Model

    ET4410

    Digits

    Main parameter: 5 digits; secondary parameter: 5 digits

    Measurement Parameter

    Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR

    Measurement Range(L)

     0.01μH - 9999H

    Measurement Range(C)

    0.01pF - 9999μF

    Measurement Range(R)

    0.0001Ω - 99.99MΩ

    Basic Accuracy

    0.2%

    Test Frequency (Hz)

    100~100kHz  16 point

    Measurement Display Speed

    2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)

    Internal Bias

    0-1500mV adjustable, 1mV stepping

    Test Level

    100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV

    Correction Function

    Open circuit correction, short circuit correction

    Screening function

    The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%

    Selection of comparator

    Five gear sorting, third gear qualified, one gear failed, one ancillary gear

    Communication Interface

    Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

    Others

    Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness,  optional in English and Chinese
    ●Power supply voltage: 220V AC ± 10%, or 110V AC ± 10%, 45-65Hz
    ●Working environment: 0 ~ 40 ℃, relative humidity <80%.
    ●Storage environment: -10 ~ 50 ℃, relative humidity <80%.
    ●Dimensions: 265mm * 105mm * 305mm (width * height* depth).
    ●Mass: 2.3kg.
    ●Power consumption: <10W
    Package Includes:

    1 x Mustool ET4410 LCR Tester
    1 x Set of accessories
