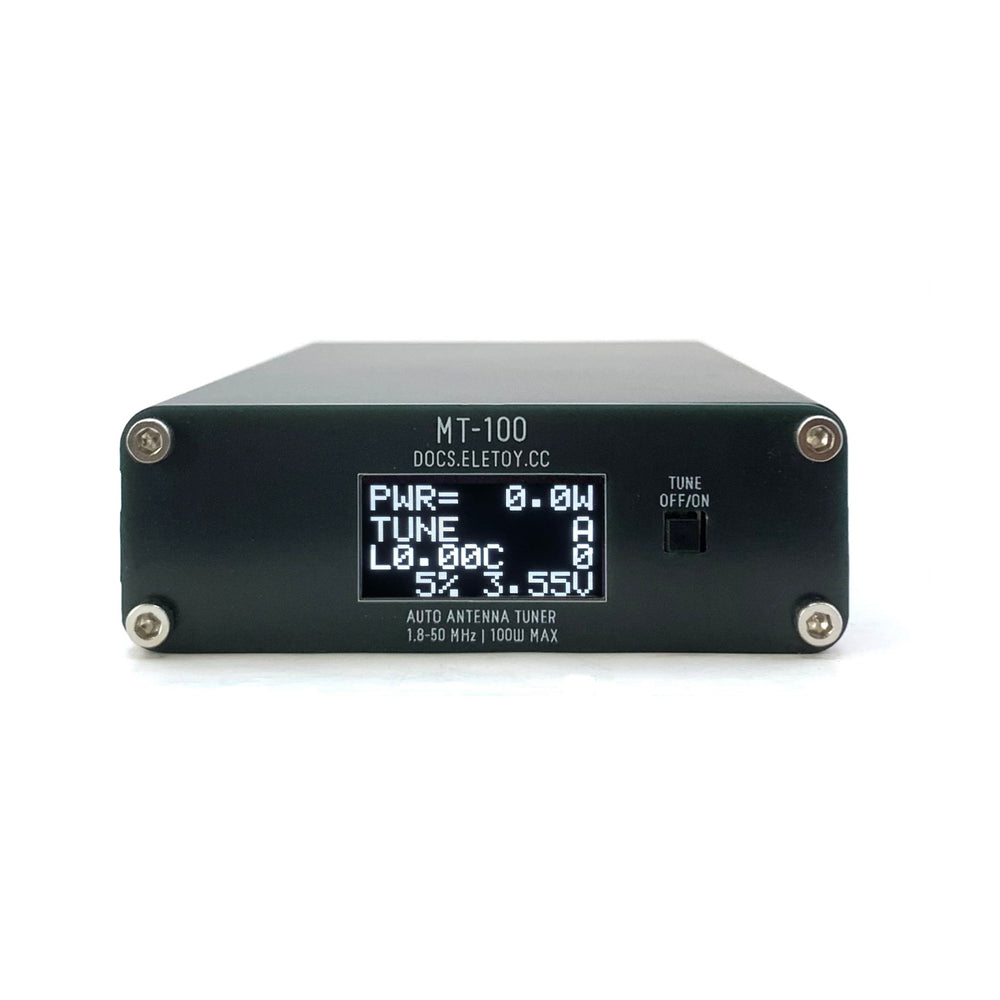

MT100 Automatic Antenna Tuner 1.8-50MHz 100W 7L7C L-Network HF Auto Tuner For HAM Antenna - Black

Specification:

Product Model: MT100

Product Type: Automatic Antenna Tuner

Frequency: 1.8 - 50 MHz

Maximum Power: 100W PEP

Tuning Power: 1 - 15W

Impedance: 50 ohm

Matching Range: ~20 - 1000 ohm (all bands)

Matching Network: 7L7C L-network, L_max = 18.48uH, C_max = 2369pF

Tuning Time: ~2 - 5 seconds

Battery: Built-in 18650 lithium battery

Charging: USB 5V 1A

SWR Alarm: 3.5mm jack, HIGH/LOW/GND

Connectors: SO-239 x 2 (TX / ANT)

Dimensions: ≈15.2 x 8.7 x 3.1 cm

Weight: 394g

Compatible antennas:

Common HF antennas such as dipole, vertical, end-fed, and long-line antennas, with an original VSWR of 5:1 or less, can be matched.

Features:

1) Covers 1.8-50MHz HAM bands with up to 100W PEP power handling.

2) 7L7C L-network with 128 inductor steps and 128 capacitor steps for fast tuning in 2-5 seconds.

3) Default auto mode tunes on transmit and automatically rematches after frequency changes.

4) One-button control supports tuning, mode switching, and power on or off.

5) OLED screen shows power, SWR, inductance, capacitance, and battery status in real time.

Package Included:

1 x MT100 Main Unit

1 x Type-C Charging Cable
