MLite-880 Software-Defined Radio Full Band SDR SSB CW AM SAM NFM WFM support Longwave Medium Wave Shortwave Aviation Band - Black
$209.99
In Stock
Description
Introduction:
>>>Manual: Click here to open<<<

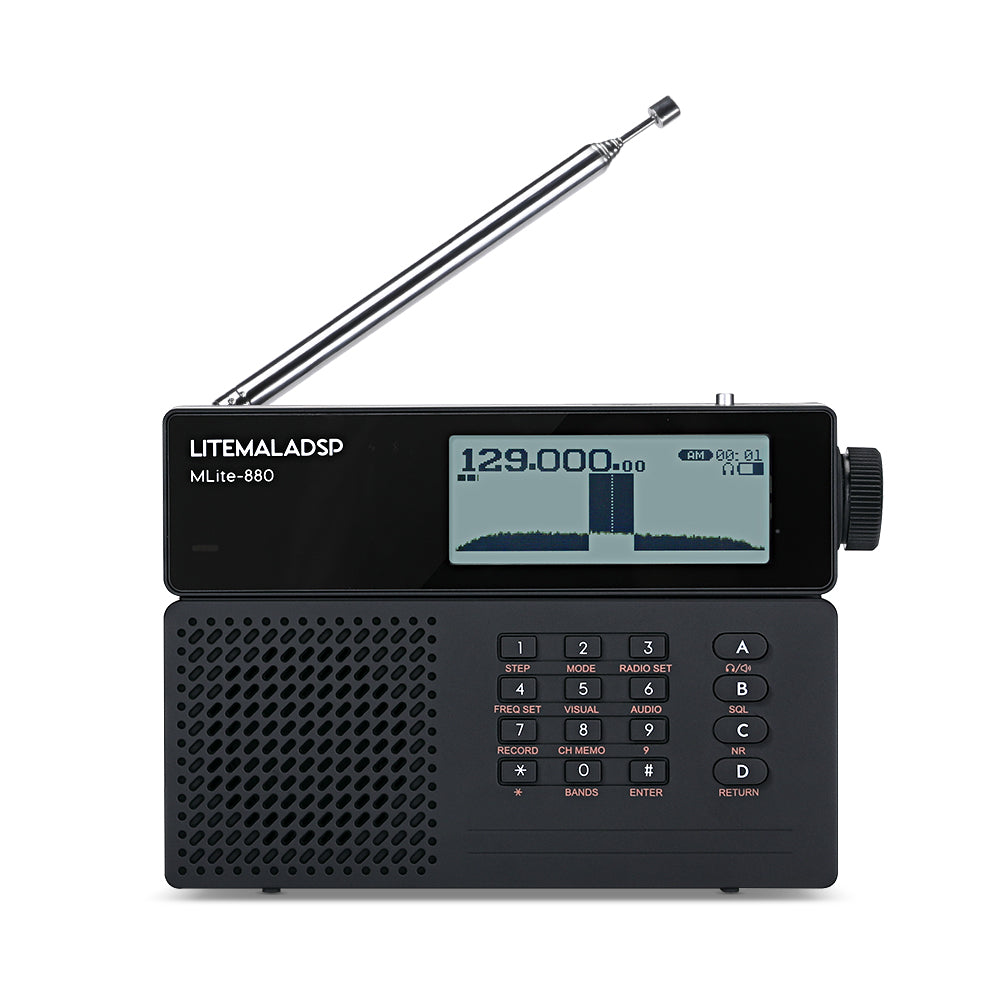

This is an officially licensed MLite-880 mini Malachite radio, a true digital defined radio equipped with fully functional hardware. Firmware upgrades allow for continuous improvement. Since its launch, the DSP malachite has been well-received by radio enthusiasts. Considering that previous generations of malachite radios used touchscreens, and to meet the diverse needs of more enthusiasts, after two years of development, a traditional physical button operation mode has finally been created. This is an SDR digital radio combining traditional radio and malachite technology, which we believe will bring a unique experience to every user.General characteristics: Receiver type: SDR Communication Receiver Types of demodulators: SSB, CW, AM, SAM, NFM, WFM Frequency Range for FM: 65-108MHz Frequency Range for LW/MW/SW: 130kHz-30MHz (LW/MW/SW) Frequency Range for VHF: 118-148MHz Sensitivity SSB: ≤-110dBm (12dB SINAD) Sensitivity LW(AM): ≤-90dBm (12dB SINAD) Sensitivity MW, SW(AM): ≤-95dBm (12dB SINAD) Sensitivity FM(WFM): ≤-105dBm (12dB SINAD) Sensitivity VHF(FM): ≤ -110dB (12dB SINAD)
Antenna input type: Hiz, 50 Ohm Length of telescopic antenna: 70cm
Overrall dimensions: 157mm*110mm*36mm
Weight: 420g
Charging: Voltage/Current: 5V / 1A Battery Level Detection: Supported / Screen Display Battery Type: 21700 Lithium Battery 5000mAh Charging Time: Approx. 5 hours
Battery life: Approx. 24 hours
Detailed Description of Functionsand Performance:
· A new-generation portable radio based on SDR (Software-Defined Radio) technology
· LCD graphic display with 192x64 resolution and adjustable backlight brightness
· Integrated real-time spectrum display function found in professional radio equipment
· Received Signal Strength Indicator(RSSI)
· Digital Automatic Gain Control(AGC), supporting 5 AGC modes: MANUAL/FAST/MIDDLE/SLOW/LONG
· NR(Noise Reduction): Professional digital noise reduction algorithm for precise suppression of background noise and optimal sound quality.
· NB(Narrowband Filtering/Pulse Suppression): Suppresses pulse noise for clearer reception
· External antenna input interface, compatible with various types of external antennas.
· Bias-T power supply for external active antennas
· Antenna input impedance supports two types: high impedance (HiZ)/50 ohms
· Bluetooth connectivity, supporting Bluetooth headphones and Bluetooth speakers.
· Preset station memory for quick switching
· One-key band selection: supports VLF, LF, MW, SW, FM, AIR, VHF
· Frequency ranges:
- FM: 65 MHz-108 MHz/76 MHz-108 MHz/87 MHz-108 MHz/70 MHz-108 MHz
- LW/MW/SW: 130 kHz-30 MHz (including MW/SW/LW/AIR bands)
- VHF: 118 MHz-165 MHz
· Supports SSB(USB/LSB), CW, AM, NFM, and WFM reception
· Supports WFM stereo reception
· Supports WFMRDS data decoding
· Direct frequency input via numeric keypad
· Uses a 21700 lithium battery with easy replacement and a capacity of 5000 mAh
· Adjustable digital filter bandwidth:
· AM mode: continuously adjustable from 0.15 kHz to 15 kHz
· WFM mode: supports automatic bandwidth mode and 17 manually selectable fixed bandwidth options
· Built-in synchronous AM detector
· Wide-range tuning step options
· Supports automatic frequency 0ffset adjustment for WFM
· USB Type-C interface supporting charging, audio transmission, and CAT communication
· Battery level indicator
· Built-in telescopic antenna, with optional HiZ mode to improve MW and SW reception performance
· SQL (Squelch), with adjustable squelch threshold
· Audio equalizer for radio listening: Off/Soft/ Live/ Club/Rock/ Bass/ Jazz/Pop/Vocal, 8 modes
· High-precision crystal oscillator with frequency calibration support
· Auto-scan function for quickly locking onto valid signals
· Full-band radio recording, supporting real-time on-device saving and playback of stored audio
· SSB (Single Sideband) reception: supports USB/LSB modes, minimum step size of 10 Hz, combined with synchronous detection technology
Package includes:
1 x MLite-880
(Note: The loop antenna is not includes, for reference only)
Parameter:
| Mode Classification | Sub-item | Specific parameters |
| Frequency Modulation (FM) | Frequency | USA: 87 - 108 MHz |
| China/Europe: 76 - 108 MHz | ||
| Russia: 64 - 108 MHz | ||
| Step | 50kHz/100kHz/200kHz/1MHz | |
| Medium Wave (MW) | Frequency | USA (AM): 520 - 1710kHz |
| China/Europe (MW): 522 - 1710kHz | ||
| Step） | 1kHz/9kHz/10kHz | |
| Long Wave (LW) | Frequency | USA: 153 - 519kHz |
| China/Europe: 100 - 519kHz | ||
| Step | 1kHz/9kHz | |
| Short Wave (SW) | Frequency | 1.711 - 29.999MHz |
| Step | 1kHz/5kHz/100kHz | |
| Millimeter Band | 120m, 90m, 75m, 60m, 49m | |
| 41m, 31m, 25m, 21m, 19m | ||
| 16m, 15m, 13m, 11m | ||
| Airborne Band (AIR) | Frequency | 118MHz - 137MHz |
| Step | 5kHz/25kHz/1MHz | |
| Amateur Radio (SSB) | Mode | LSB / USB |
| Step | 10Hz/20Hz/1kHz/5kHz/9kHz/10kHz |
| Reception indicators | Rod antenna receiver sensitivity | FM(S/N=30dB) | ≤0.5μV |
| SW(S/N=20dB) | ≤10μV | ||
| LW(S/N=20dB) | ≤10μV | ||
| MW(S/N=20dB) | ≤10μV | ||
| Selectivity | FM | ≥60dB(±150KHz) | |
| SW | ≥60dB(BW=3KHz/±5KHz) | ||
| LW | ≥60dB(BW=3KHz/±9KHz) | ||
| MW | ≥60dB(BW=3KHz/±9KHz) | ||
| Signal-to-noise ratio | FM | ≥60dB | |
| LW | ≥60dB | ||
| SW | ≥60dB | ||
| MW | ≥60dB | ||
| AIR | ≥60dB |
