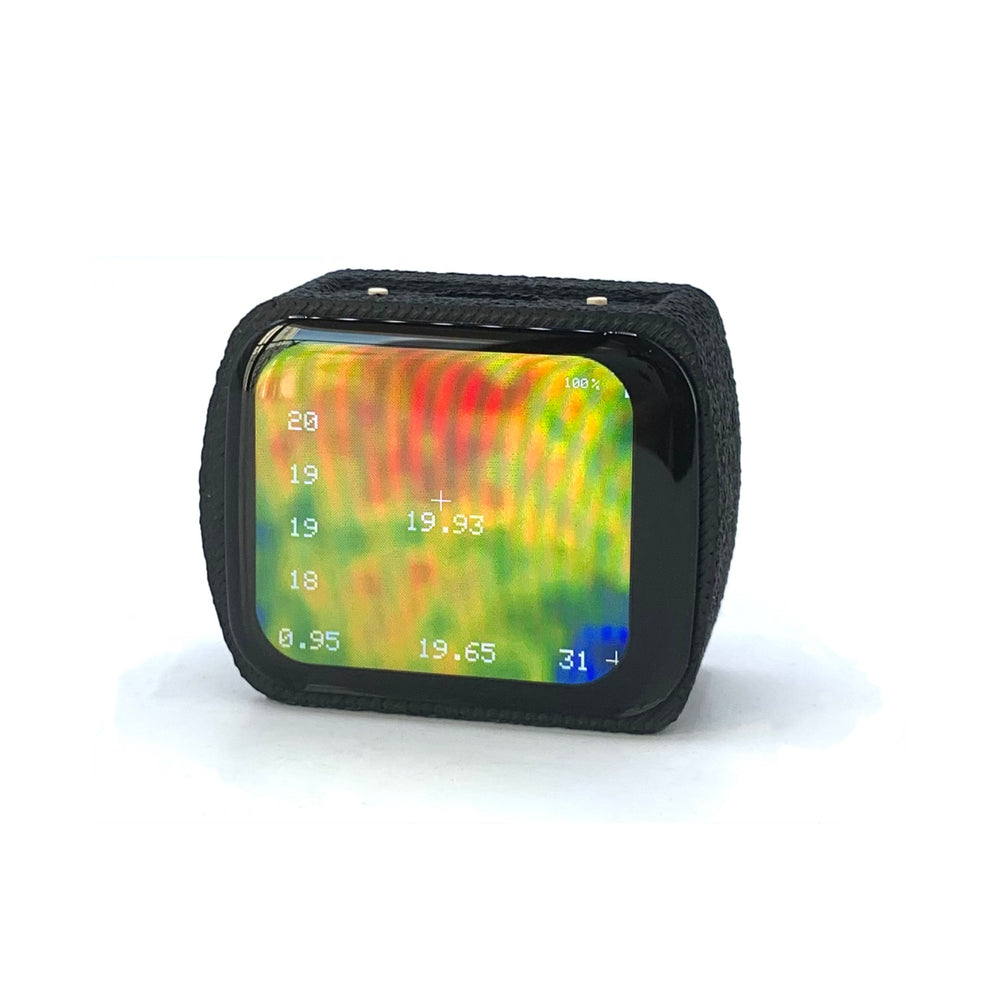

Mini MLX90640 Thermal Imaging Camera Temperature Measurement -40°C to 450°C 32x24 Infrared Sensor Portable ESP32 Processor - Black
$69.99
In Stock
Description
Specifications:
Material: PLA filament
Processor: ESP32 dual-core processor
Infrared Sensor Model: MLX90640ESF-BAB
Infrared Resolution: 32×24 pixel far-infrared array
Display Screen: 1.69” LCD screen, 280×240 pixel resolution
Temperature Measurement Range: -40°C to +450°C
Temperature Accuracy: ±2°C
Operating Temperature: 0°C to 50°C
Operating Humidity: RH 70% max
Refresh Rate: 0.5Hz to 16Hz
Field of View: 55° x 35°
Emissivity: Adjustable, set to 0.95 by default
External Ports: Micro memory card slot, USB Type-C for charging and data transfer
Charging Specs: USB Type-C, 5V/1A
Product Dimensions: 37mm x 46mm x 23mm
Product Weight: Approx. 35g
Battery Specifications: 3.7V 600mAh lithium-ion battery
Continuous Usage Time: ≥ 3 hours
Memory Card Compatibility: 1GB to 8GB memory cards (not included)
Features:
1.Compact and lightweight design: Ultra-small size (37mm×46mm×23mm) and weighs only around 35g for effortless portability.
2.High temperature range: Accurately measures temperatures from -40°C to +450°C, displayed in real-time with high/low/center point tracking.
3.Efficient power supply and storage: Built-in 600mAh battery supports ≥3 hours of continuous operation, Type-C charging with data export via computer U-disk mode.
4.Precision hardware: Equipped with an ESP32 dual-core processor and adjustable emissivity for consistent and accurate results.
5.Versatile applications: Non-contact infrared detection suitable for industrial, research, and safety monitoring scenarios.
Package Included:
1 x Thermal imaging device
1 x Carrying case
1 x Type-C cable
