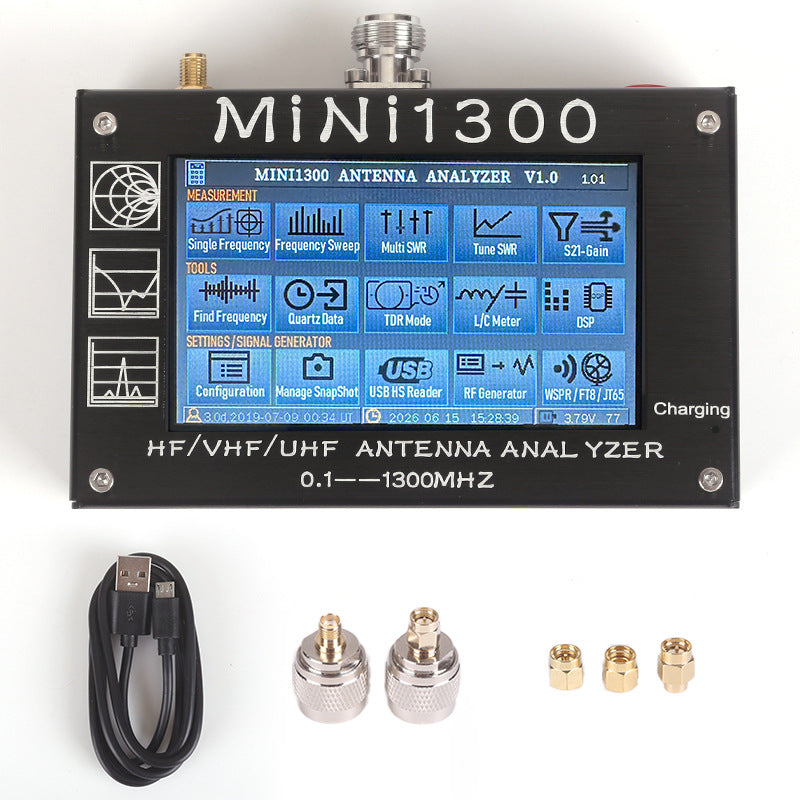

Mini 1300 Portable Antenna Analyzer 0.1-1300MHz SWR Meter Frequency Scan S21 Spectrum Analyzer TDR LC Meter Signal Generator USB Rechargeable VNA - Black

Specification

Product Name: MINI 1300 Portable Antenna Analyzer

Frequency Range: 0.1 - 1300 MHz

Input/Output Impedance: 50Ω

Measurement Parameters: SWR, R, +Jx, -Jx, Z, Return Loss

Measurement Modes: Single Point Measurement, Scan (Frequency Scan), TDR

SWR Measurement Range: Single Point Mode: 1.0 - 1999

SWR Measurement Range: Scan Mode: 1.0 - 20.0

Display Modes: Numeric Display, Curve Display, Analog Graph

Connector Type: UHF N Type / SMA (VNA)

Display Screen: 4.3 inch TFT LCD, 480x272, Capacitive Touch

Power Supply: USB or Built-in Li-ion Battery

Charging Current: Max 5V / 1.5A

External Storage: TF Card

Dimensions: 133 x 85 x 29 mm (excluding protruding ports)

Weight: 550 g

Features

1) Wide 0.1 - 1300 MHz frequency coverage for HF, VHF, and UHF applications.

2) 14-in-1 multifunction design for antenna analysis, frequency scan, S21 gain test, spectrum analysis, TDR, and signal generation.

3) Supports SWR, R, +Jx, -Jx, Z, and return loss measurement.

4) Offers single point, frequency scan, and TDR modes with numeric, curve, and analog graph display.

5) 4.3 inch capacitive touch screen, USB charging, built-in lithium battery, and TF card support for portable operation.

Package Included

1 x MINI 1300 Main Unit

1 x SMA Short-Open-Load Calibration Kit
