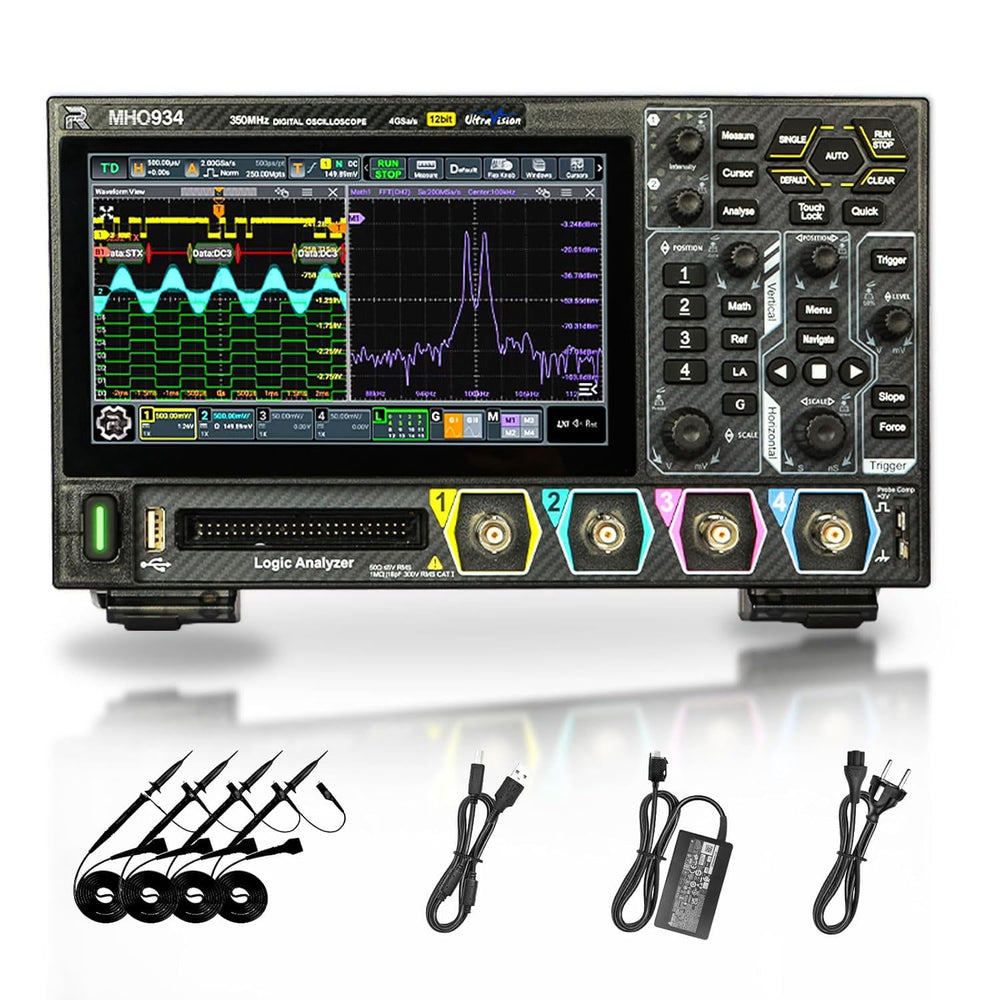

MH0934 MH0954 MH0984 High Precision Digital Oscilloscope 4 Channels 800MHz Bandwidth 12-Bit Resolution 4GS Sampling Rate Touchscreen USB HDM Signal Analysis
$1,199.99
In Stock
Description
Specifications:
Bandwidth Up to: MH0934 - 350MHz, MH0954 - 500MHz, MH0984 - 800MHz
Channels: 4
Vertical Resolution: 12-bit
Input Impedance: 50Ω/1MΩ
Memory Depth: 100Mpts, 500Mpts (Paid Upgrade)
Sampling Rate: Up to 4GS/s
Waveform Capture Rate: 30,000wfms/s (Normal Mode); 1,000,000wfms/s (Fast Acquisition Mode)
Minimum Vertical Scale: 200μV/div
Minimum Time Base: 500ps/div
Digital Channels (Optional): 16 channels, 200MHz (Logi Probe Required)
Frequency Counter Digits: 3–6 digits
Accumulator Depth: 48 bits
FFT Analysis: Supported
Serial Decoding Protocols: I2C, SPI, UART, CAN, LIN (Standard); CAN-FD, FlexRay, I2S, MIL-STD-1553B (Paid Upgrade)
Built-in AFG: 2 channels, 100MHz (Paid Upgrade)
Display: 7-inch touchscreen (1024×600 resolution)
Interfaces: USB, LAN, HDM, Web Remote Control
Weight: 1.78kg
Dimensions: 265 x 161 x 77mm (LxWxH)
Power Supply: AC/DC
Power Consumption: 70W
Features:
1.High Bandwidth Across Models
Offers users flexible options with bandwidth up to 800MHz tailored to professional applications. The 4-channel capability ensures complex signal analysis and advanced system debugging.
2.Precision and Speed
Equipped with 12-bit vertical resolution, 4GS/s sampling rate, and up to 1,000,000 waveforms capture per second, enabling advanced and accurate signal measurements in critical scenarios.
3.Comprehensive Protocol Analysis
Supports a variety of standard and optional protocol decoding, including I2C, SPI, UART, CAN, and MIL-STD-1553B, contributing to convenient troubleshooting for embedded systems.
4.User-Friendly Interface
The 7-inch high-resolution touchscreen and HDM support enhance user interaction while USB, LAN, and web remote control options improve connectivity and adaptability.
5.Compact and Portable Design
With a lightweight of 1.78kg and compact dimensions, it is easy to carry, making it suitable for both on-site and laboratory workflows without compromise in performance.
Package Included:
1 x Digital Oscilloscope
4 x Oscilloscope Probes
1 x USB Cable
1 x Power Cord
1 x Grounding Wire
