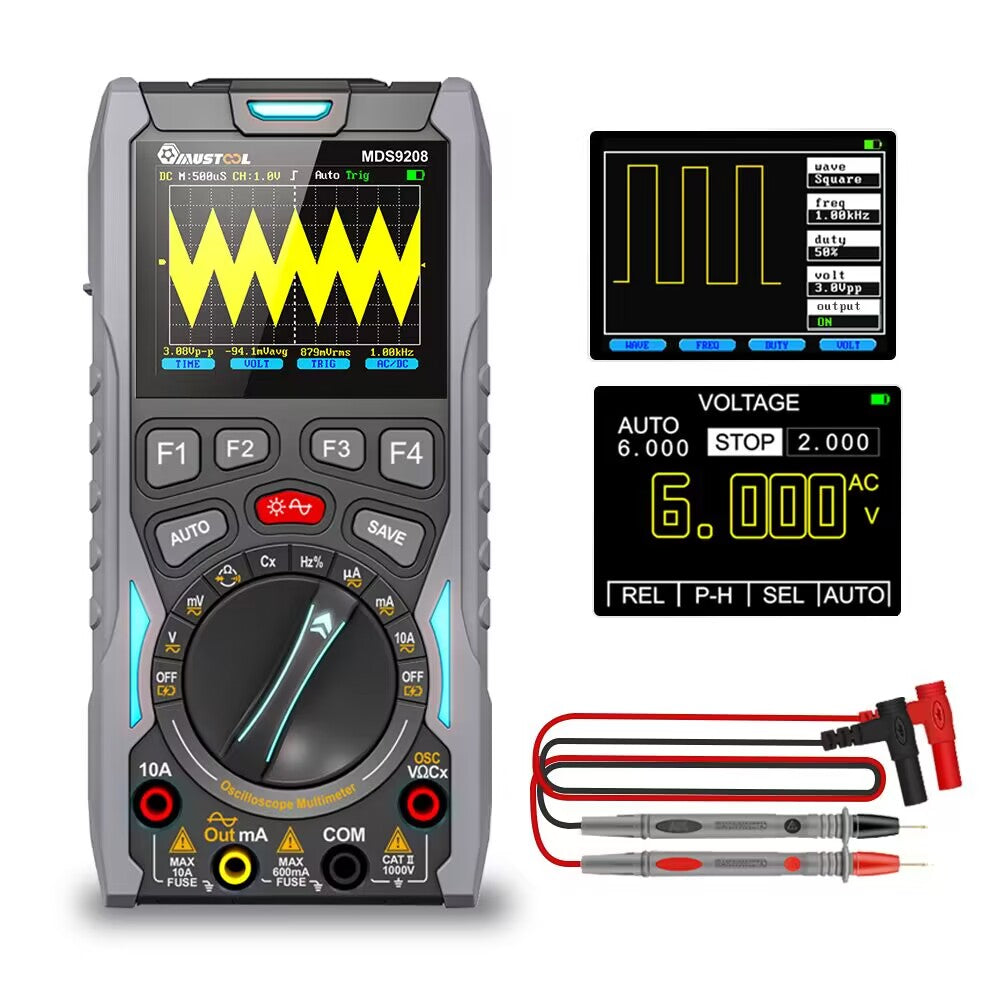

MDS9208 3In1 Oscilloscope Multimeter Signal Generator 12MHz 50Msps Portable High Storage Capacity Low Power Consumption
Description
Features:
- Oscilloscope + Multimeter + Signal-Generator function 3 in 1.
- It has 2.4 inches color screen, wonderful display effect !
- We upgraded the bandwith to 12MHz with 50Msps Sampling Rate
- High Storage Capacity With a storage capacity for 100 sets of multimeter data and 10 waveforms,this device ensures you don't lose important data points. By simply pressing the "SAVE" key, your current waveform is securely stored.
-Powered by a lithium battery(run 6H on a single charge), It includes a low battery reminder, and automatic shutdown to preserve battery life when not in use.
Mode |
MT8208 |
MDS9208 |
Waveform measurement bandwidth |
1MHz |
12MHz ↑ |
Sampling rate |
2.5MHz |
50Msps ↑ |
Color indicator light |
/ |
Different gears and colors ↑ |
Signal function |
/ |
YES ↑ |
High-pressure test |
/ |
Up to 1600V without pressure pen |
Battery |
/ |
Upgrade to lithium battery(included) |
Specifications:
Display: 320*240 color LCM, white backlight
Battery: Lithium, low battery reminder
Usage Time: Approx. 6 hours
Usage Environment: 0℃~+40C, <75%RH
Dimensions: 153mm75mm30mm
Analog Bandwidth: ACV/DCV ≤ 12MHz
Signal Source Output: Square wave, triangular wave, sine wave
Observation Area: 2.4 inches
Input Resistance: 10MΩ
Power Consumption: About 250mA
Storage Capacity: 100 sets of DMM data+10 waveforms
Storage Conditions: -10° C~+60° C,<90% RH
NOTE: Battery included!!!
Package Included:
1 x 3-in-1 Oscilloscope + Multimeter + Signal Generator
1 X Test Probe
1 X USB Cable
1 X Manual
1 x Box
