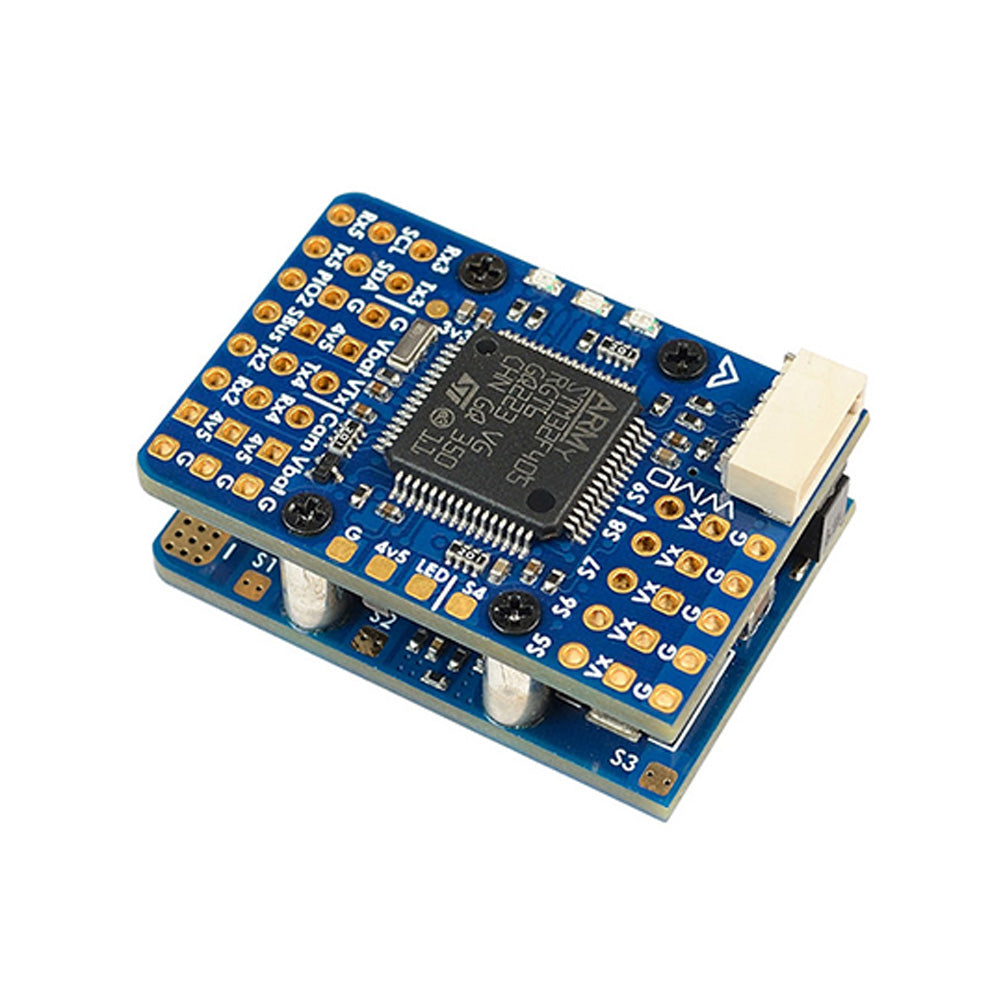

F405-WMO Flight Controller ICM42688P IMU MatekF405-TE ArduPilot for Fixed Wing RC Airplane

Specification:

Model: Flight Controller F405-WMO

MCU: STM32F405RGT6, 168MHz , 1MB Flash

IMU: ICM42688-P

Baro: SPL06-001

OSD: AT7456E

Blackbox: SD card slot

- 4x UARTs

- 10x PWM outputs

- 1x I2C

- 2x ADC (VBAT, Current)

- 1x spare PINIO

- Vbat output ON/OFF control

- USB/Beep Extender with Type-C(USB2.0)

- Built in inverter on UART2-RX for SBUS input

Power

- 5.4~30V DC IN (2~6S LiPo)

- 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)

- PDB/Current sense resistor: 90A continuous, 132A burst.

- BEC 5V(4v5) 2A for FC & Peripherals

- BEC Vx 4.5A cont.(7A peak) for servos, 5V/ 6V option

- Filtered Vbat for VTX and camera

- LDO 3.3V 200mA

- Battery Voltage Sensor: 1k:20k

FC Firmware

ArduPilot: MatekF405-TE

INAV: MATEKF405TE_SD

Physical

Dimensions: 32 x 22 x 12.7 mm

Weight: 9g

Package Included:

1x F405-WMO

1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P cable for USB extender

Dupont 2.54 pins (Board is shipped unsoldered)
