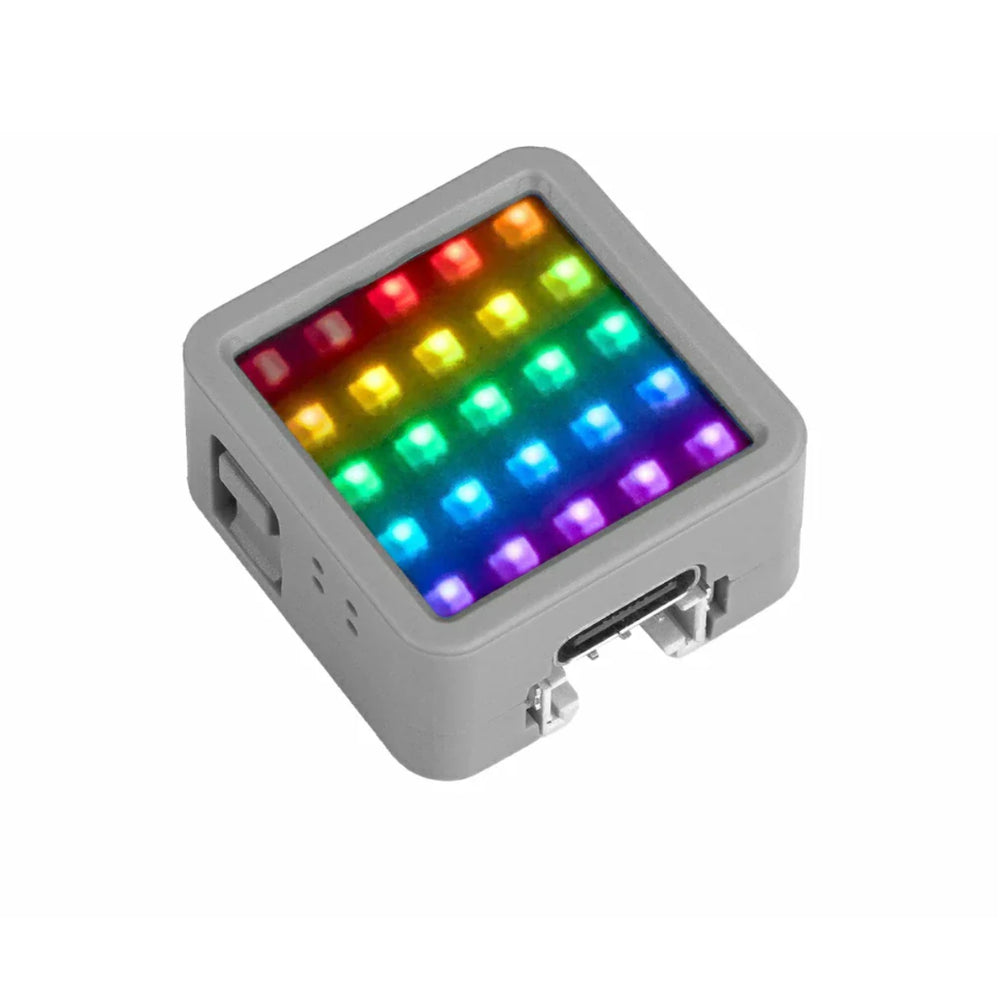

Atom Matrix Development Kit V1.1 ESP32 5x5 RGB LED High Performance USB WIFI UiFlow MicroPython IoT module

Specification:
Model: C008-B-V11
Product Name: ATOM Matrix V1.1 ESP32 Development Kit
SoC: ESP32‑PICO‑D4, dual‑core 32‑bit processor, up to 240 MHz
Performance: 600 DMIPS
Memory: 520 KB SRAM, 4 MB Flash
Wireless: 2.4 GHz Wi‑Fi
Input Voltage: 5 V @ 500 mA (USB‑C)
LED Display: 5x5 RGB LED matrix, 25 x WS2812C‑2020
Interfaces: 1 x USB Type‑C, 1 x HY2.0‑4P (Grove: I2C + IO + UART), external pins 2.54 mm pitch
Sensor: BMI270 6‑axis IMU (accelerometer + gyroscope)
Others: Built‑in user button (G39), IR transmitter, reset button, M2 screw hole
Dimensions: 24 x 24 x 13.9 mm / 0.94 x 0.94 x 0.54 in
Weight: Approx. 7.3g
Programming Platforms: UiFlow, ArduinoIDE, MicroPython

Introduction: Atom-Matrix v1.1 is an iterative upgrade of the Atom-Matrix. This product replaces the MPU6886 from the previous generation with a BMI270 six-axis IMU sensor, effectively improving attitude detection accuracy and response speed, making it better suited for high-precision applications such as motion capture and attitude control. The main controller adopts the ESP32-PICO-D4 solution with integrated Wi-Fi connectivity and onboard 4 MB SPI flash. It also features an infrared emitter and a 5×5 RGB LED matrix display. A programmable button is located beneath the LED matrix, supporting custom trigger L0GIC for convenient implementation of IR remote control, visual interaction, and command triggering. This product is ideal for embedded development and prototyping scenarios that require high-precision attitude detection, infrared remote control, and visual interactive feedback.

Features:
1. Compact ESP32‑PICO‑D4 core module with integrated Wi‑Fi for IoT and embedded projects.
2. Front‑side 5×5 addressable RGB LED matrix for icons, animations and status indication.
3. Built‑in BMI270 IMU enables motion capture, gesture control and attitude analysis.
4. USB Type‑C and HY2.0‑4P Grove port for easy connection to sensors, actuators and power.
5. On‑board programmable button, IR transmitter and reset key for interactive control.
6. Supports UiFlow graphical programming, ArduinoIDE and MicroPython with online tutorials and examples.

Package Includes:
1 x ATOM Matrix V1.1 ESP32 Development Kit
