LoRa32 868Mhz ESP32 LoRa OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module ESP-32 SMA IP5306

• Antenna: YES

Product Description:

Working voltage: 1.8~3.7v

Acceptable current: 10~14mA

Transmit current: 120mA@+20dBm

90mA@+17dBm

29mA@+13dBm

Operating frequency:  433/868/915MHz

Transmit power: +20dBm

Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps

-136dBm@LoRa &125Khz&SF=12&293bps

-118dBm@LoRa &125Khz&SF=6&9380bps

-123dBm@FSK&5Khz&1.2Kbps

Frequency error: +/-15KHz

FIFO space:  64Byte

Data rate: 1.2K~300Kbps@FSK

0.018K~37.5Kbps@LoRa

Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM，OOK

Interface form: SPI

Operating temperature: -40℃- +85℃

Digital RSSI function:

Automatic frequency correction

Automatic gain control

Fast wake-up and frequency hopping

Highly configurable data packet handler

SMA Antenna

IP5306

Github:

https://github.com/Xinyuan-LinkMejor/TTGO-LoRa-Series

https://github.com/LinkMejor/ESP32-Paxcounter

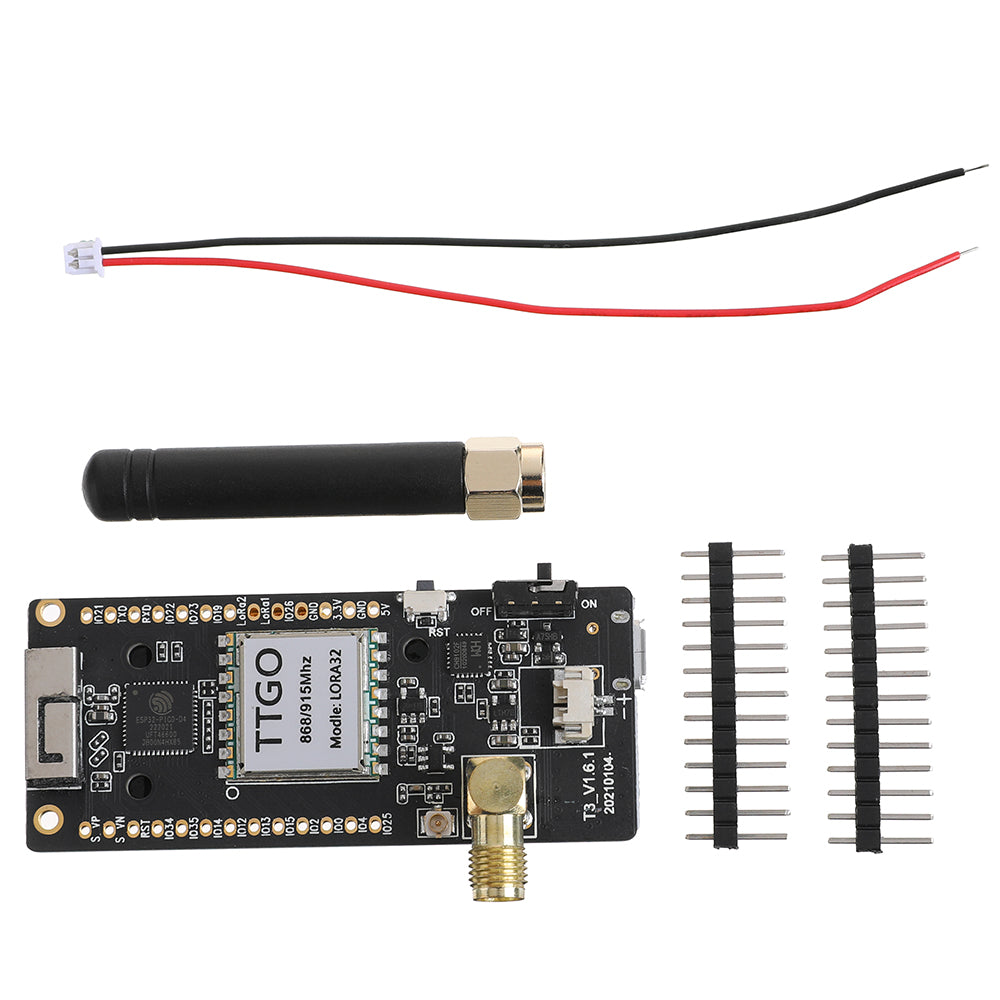

Package includes:

1 x TTGO LoRa32 868Mhz Module

2 x Pin

1 x Antenna

1 x Power Cable

(Notice:The shipping list does not include battery and SD card)
