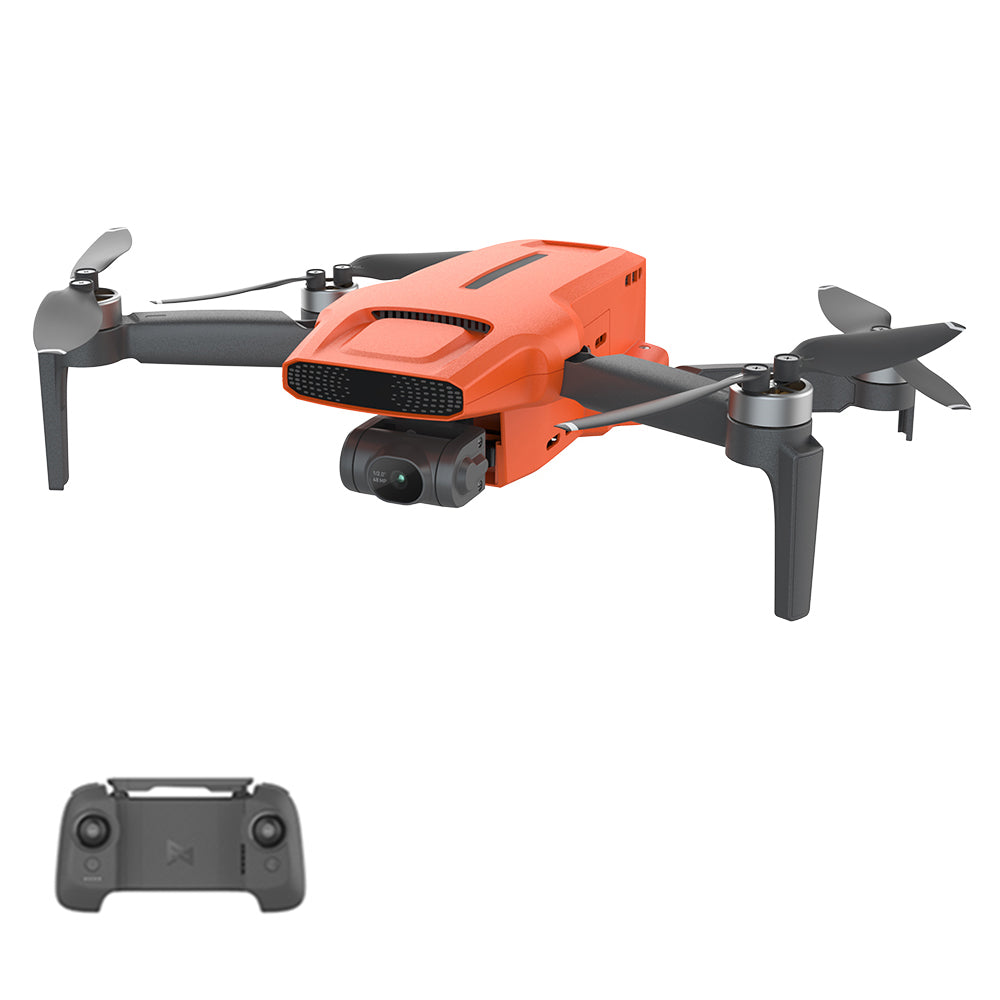

X8 MINI 3 SoLink 9KM FPV Super Night Video Mode With 4K 60fps 1/2" CMOS Camera 3-axis Mechanical Gimbal 32mins Flight Time 250g Ultralight Foldable RC Drone Quadcopter RTF
Description
- Type: Professional Aerial Drone
- Brand: LinkMejor
- Control FPV Distance: 8KM-10KM
- Gimble: 3 Axis Brushless Gimble
- Construction: Foldable
- Camera Resolution: 4K
Get Extra 25% OFF Coupons, Grab Now! BG82a2eb
Specifications:
Aircraft |
Dimensions |
145 x 85 x 56mm (Folded) 200 x 145 x 56mm (Unfolded) |
| Color |
Orange |
|
| Diagonal Distance |
214mm | |
| Model | FMWRJ04A3 | |
| Takeoff Weight (with battery) | Approx. 245g (with the Intelligent Flight Battery) |
|
| Max Ascension Speed |
5m/s |
|
| Max Descent Speed | 3.5m/s | |
Max Flying Speed |
18m/s (in a windless environment at sea level ) |
|
| Max Takeoff Altitude |
≤ 4000m |
|
| Hovering Accuracy |
Vertical: ±0.1m (when Vision Positioning is active) ±0.5m (when GPS Positioning is active) Horizontal: ±0.3m (when Vision Positioning is active) ±0.5m (when GPS Positioning is active) |
|
| Max Tilt Angle |
35° |
|
| Max Wind Speed Resistance |
10.7m/s |
|
| Max Hovering Time | 29 minutes |
|
|
Maximum Flight Time |
32mins (the Intelligent Flight Battery) |
|
| GNSS | GPS/Galileo/BeiDou/GLONASS | |
| Operation Frequency |
5.725 - 5.825GHz |
|
| Operating Temperature |
0~40℃ |
|
Gimbal Camera |
Three-axis Mechanical Gimbal |
-115° ~ 40° (Pitch)
-40° ~ 40° (Roll)
-40° ~ 40° (Yaw) |
| Controllable Rotation Range |
10° ~ -90° (Pitch) |
|
|
Angular Vibration Range |
±0.005° |
|
|
Image Sensor |
1/2-inch CMOS |
|
| Lens |
FOV 79° |
|
| Aperture |
F / 1.6 |
|
| Format Length |
4.71mm |
|
| Format Equivalent |
24mm |
|
| Focus | 1m to ∞ |
|
|
Effective Pixels |
48 million pixels |
|
| ISO Range |
Video 100-26500
Photo 100-3200 |
|
| Shutter Speed |
1/8000s - 2s |
|
| Max Photo Size |
8064 x 6048 |
|
| Max Video Resolution |
3840 x 2160 @60/30/25/24fps |
|
| Max Video Bitrate |
100Mbps |
|
| Supported File System |
FAT32/exFAT |
|
| Photo Format |
JPG/DNG |
|
| Video Format |
MP4(H.265) |
|
| Recommended Memory Card |
Micro SD 8-256GB (U3 and above) |
|
Remote Controller |
Model |
FMYKQ04A3 |
|
Weight |
About 260g |
|
| Dimensions |
165 x 89 x 47mm |
|
| Operation Frequency |
2.4000 GHz - 2.4835 GHz
5.725 GHz - 5.850 GHz |
|
| Battery Type |
Li-ion |
|
| Capacity |
3500mAh |
|
| Nominal Voltage |
3.7V |
|
| Input |
5V=2A |
|
| Max Battery Life | 8 hours (without charging the mobile device)
4 hours (charging the mobile device) |
|
|
Max Signal Effective Range FCC
(No interference, No obstruction) |
Approximately 9KM |
|
| Minimum Latency |
Approx. 120 milliseconds |
|
| Supported Mobile Device Interface Types |
Lighting,USB-C |
|
| Operating Temperature |
0 - 40℃ |
|
| Charging Temperature | 5 - 40℃ |
|
Intelligent Flight Battery |
Battery Type |
Li-ion 2S |
| Weight |
Approx. 85g |
|
| Capacity |
2200mAh |
|
| Nominal Voltage |
7.7V |
|
| Charging Limited Voltage |
8.8V |
|
| Energy |
16.92Wh |
|
| Charging Temperature Range |
5 - 40℃ |
|
Intelligent Flight Battery Plus |
Battery Type |
Li-po 2S |
| Weight |
Approx. 160g |
|
| Capacity |
3100mAh |
|
| Nominal Voltage |
7.2V |
|
| Charging Limited Voltage |
8.4V |
|
| Energy |
22.32Wh |
|
| Charging Temperature Range |
5 - 40℃ |
Features:
- 250g-Class Ultralight Design
- SoLink Dual-Band 9KM Video Transmission
- AI Super Night Video
- 1/2-inch 48MP Sensor 4K 60fps Video
- 8K Time-Lapse Photography
- Three-Axis Mechanical Gimbal
- Level 5 Strong Wind Resistance
- USB Type C Fast-Charging Battery
- Intelligent Flight Mode
- SAR Model with 6X digital zoom, GPS positioning
Package Included:
Two Batteries Version: 1 x MINI 3 Quadcopter (with camera) 1 x Remote Controller 2 x Battery 1 x USB Cable 2 x Spare Propeller 2 x RC Connected Cable 1 x Gimbal Cover 1 x Storage Bag 1 x Manual
