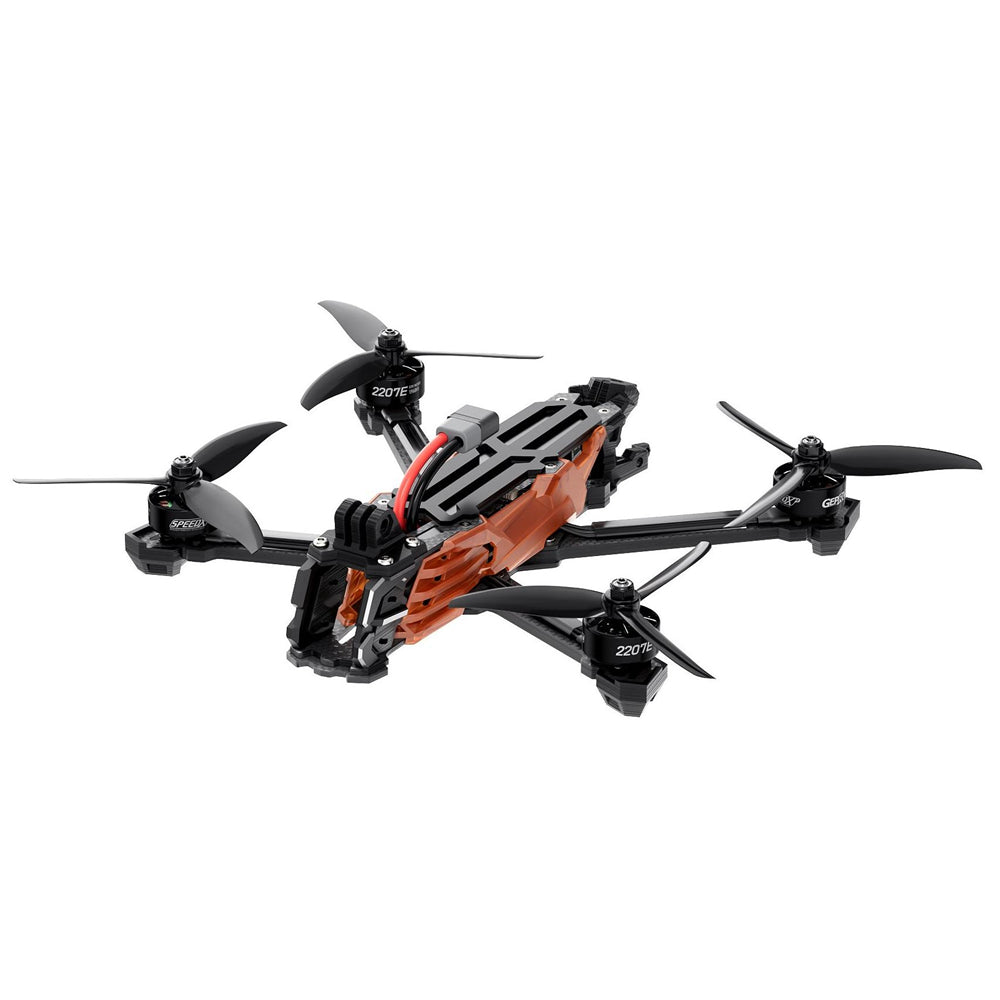

Vapor-D5 238mm 5 Inch 6S Freestyle RC WTFPV Drone PNP NO VTX NO Camera Compatible with DJI O4 Pro Air Unit
Description
Description:
The Vapor-Series continues to lead in inovation, now fully compatible with the DJI O4 Air Unit Pro.
The GEPRC team has redesigned the lens mount and added vibration-damping silicone to minimize resonance. With newly designed side plates with a sharp, boldd look, the frame is more striking and seamlessly integrates with the DJI O4 Air Unit Pro.
Powered by the STM32F722 MCU and the TAKER H60_BLS 60A 4-in-1 ESC combo, it delivers quick, precise response and powerful output. Paired with SPEEDX2 E-series high-performance motors, the system offers smooth handling and explosive power, creating an immersive flying experience where the FPV drone feels like an extension of yourself.
The Vapor-O4-series is available in Wide X and DC models, with both 5-inch and 6-inch size options to suit every flying need.
Feature:
- Supports the DJI O4 Air Unit Pro with a powerful CMOS sensor for better light sensitivity and sharper image detail.
- CNC aluminum alloy lens mount enhances the boldd, mech-style look.
- Comes with GEPRC SPEEDX2 E series motors for strong, responsive power.
- Front lip design adds extra protection for the lens, making it more crash-resistant.
- Classic 5mm carbon fiber arm with newly molded side plates for a tough, balanced frame.
Specification:
Brand: GEPRC
Model: Vapor-D5 O4 Pro WTFPV
Model |
Vapor-D5 O4 Pro WTFPV |
Vapor-X5 O4 Pro WTFPV |
Frame |
Vapor-D5 Frame |
Vapor-X5 Frame |
Wheelbase |
238mm |
230 mm |
Top Plate |
2.0 mm |
|
Middle Plate |
2.0 mm |
|
Bottom Plate |
2.5 mm |
|
Arm Thickness |
5.0 mm |
|
FC |
GEP-F722-HD v2 |
|
MCU |
STM32F722 |
|
Gyro |
ICM42688-P(SPI) |
|
Barometer |
BMP280 |
|
OSD |
Betaflight OSD w/AT7456E |
|
ESC |
TAKER H60_BLS 60A 4IN1 ESC |
|
VTX |
/ |
|
Camera |
/ |
|
Antenna |
/ |
|
Connector |
XT60 |
|
GPS |
/ |
|
Motor |
GEPRC SPEEDX2 2207E 1960 KV |
|
Propeller |
GEMFAN 5136 |
|
PNP Version Weight |
405±5g |
399g±5g |
Receiver: |
PNP |
|
|
Recommended Battery (Not included) |
6S LiPo 1550mAh – 2200mAh |
|
Package Included:
1 x Vapor-D5 WTFPV
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x L-shaped screwdriver 3.0mm
1 x GPro mount
1 x GPS mount
1 x Vapor-side-panel
