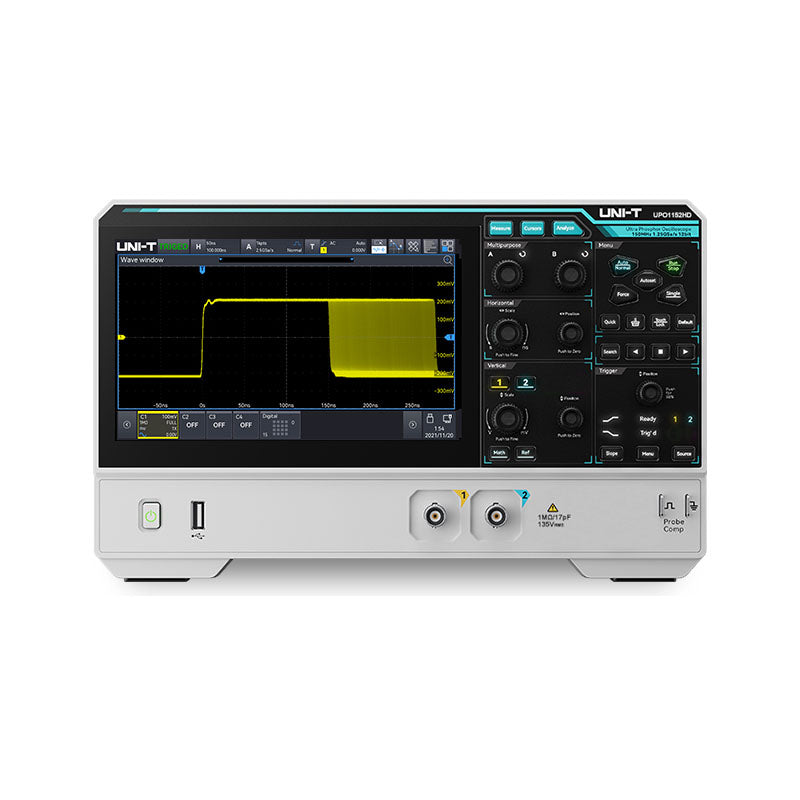

UPO1152HD UPO1154HD Oscilloscope 2/4 Channels 150MHz Bandwidth 12-bit ADC 1.25GSa/s Sampling Rate Large Storage Depth High-Definition Touch Screen

Model: UPO1152HD (2 Channels), UPO1154HD (4 Channels)

Bandwidth: 150MHz

Sampling Rate: 1.25GSa/s (Single Channel), 625MSa/s (Dual Channel), 312.5MSa/s (Four Channel)

Storage Depth: Automatic (limit to 5Mpts), 25kpts, 250kpts, 500kpts, 5Mpts, 50Mpts, 100Mpts

Waveform Capture Rate: Ultra Phosphor 3.0 100,000wfms/s (Standard), 500,000wfms/s (Sequential Mode)

Rise Time: ≤2.2ns

Vertical Resolution: 12-bit

Vertical Gear: 500µv/div to 10V/div

Time Base Gear: 2ns/div to 1ks/div

Sampling Method: Real-Time Sampling

Waveform Recording & Playback: Hardware real-time recording up to 100,000 frames

Enhanced FFT Point Count: Up to 1Mpts

Frequency Meter: 6

Display: 7-inch 1024x600 High-definition Capacitive Touch Screen

Size: 282mm x 175mm x 49mm

Weight: Approx. 1.6kg

1. High Sampling Rate for Accuracy: Equipped with an impressive sampling rate of up to 1.25GSa/s on a single channel, enabling precise waveform measurements and detailed signal visualization.

2. 12-bit Vertical Resolution: Provides exceptional signal clarity, offering detailed and accurate data capture for intricate analysis in various applications.

3. Large Storage Depth Options: Adjustable storage depth settings, up to 100Mpts, ensure extended signal analysis capability for continuous and complex waveforms.

4. Fast Waveform Capture: Ultra Phosphor 3.0 technology delivers up to 500,000 waveforms per second in sequential mode, making it ideal for capturing dynamic signals efficiently.

5. Enhanced Display Interface: The 7-inch high-definition capacitive touch screen delivers crystal-clear visuals and intuitive operation for improved user experience.

1 x Oscilloscope

1 x Power Line

1 x USB Cable

1 x Ground Wire

1 x Data Download Guide

1 x Certificate of Conformity

Optional:

4 x 200MHz Probes (for UPO1154HD)

or

2 x 200MHz Probes (for UPO1152HD)
