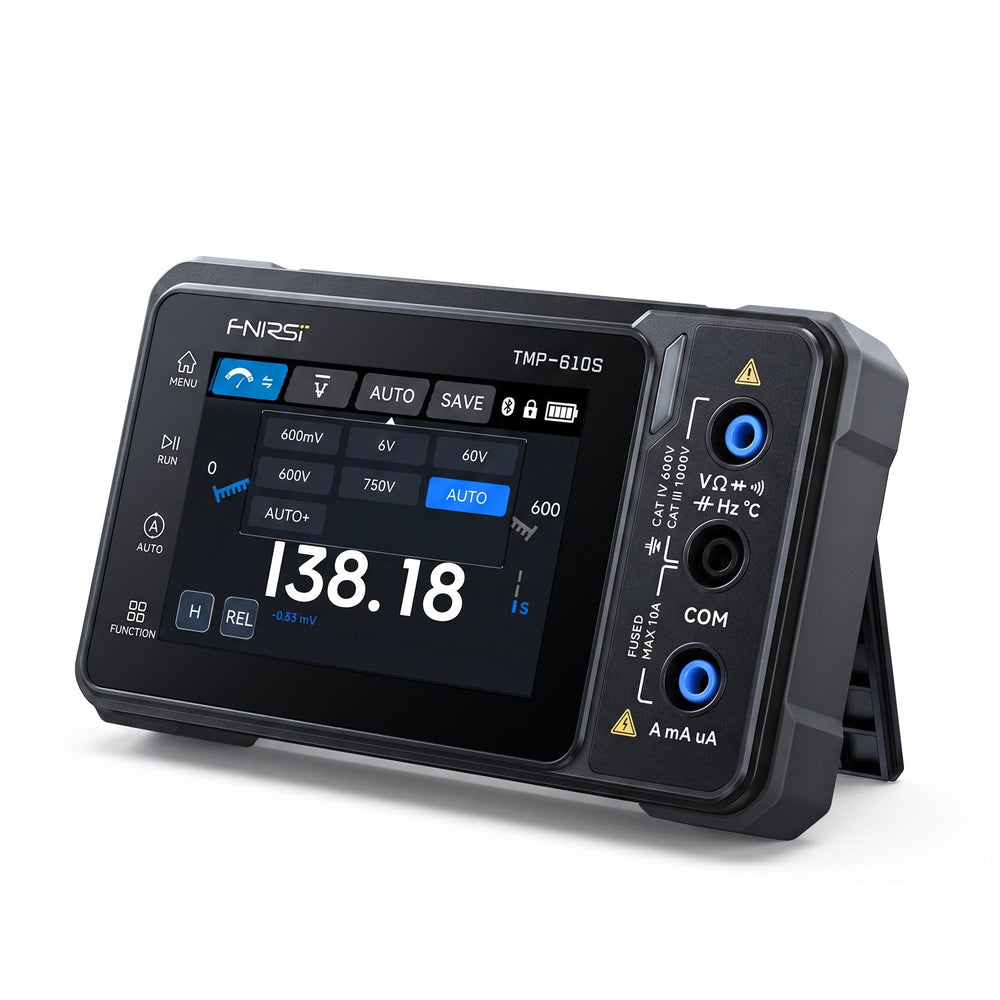

TMP-610 TMP-610S Handheld Digital Multimeter Oscilloscope 3-in-1 with Signal Generator Bluetooth App Control 10MHZ 48MSa/s 60000 Counts Electrical Tester DMM Scope Meter

TMP-600 & TMP-610S

Multimeter

Function

Range

DC voltage

600mV/6V/60V/600V/1000V

AC voltage

600mV/6V/60V/600V/750V

DC current

600uA/6000uA/60mA/600mA; 6A/10A

AC current

600uA/6000uA/60mA/600mA; 6A/10A

Resistance

600Ω/6KΩ/60KΩ/600KΩ/6MΩ; 60MΩ

Capacitance

60nF/600nF/6uF/60uF/600uF/6mF/60mF

Frequency

10Hz~60MHz

Temperature

-40°C~1000°C (-40°F~1832°F)

Continuity

0Ω~1KΩ

Diode

0V~3.0V, 0Ω~1KΩ

AC frequency response

10KHz

TMP-610S

Oscilloscope

Parameter

Specification

Real-time Sampling Rate

48MSa/s

Analog Bandwidth

10MHz

Input Impedance

1MΩ

Coupling Mode

AC/DC

Test Voltage Range

1:1 Probe: 80Vpp(±40V);
1:10 Probe: 800Vpp(±400V)

Vertical Sensitivity

10mV/div ~ 10V/div

Vertical Displacement

Adjust with indication

Horizontal Time Base Range

50ns ~ 20s

Trigger Mode

Auto, Normal, Single
