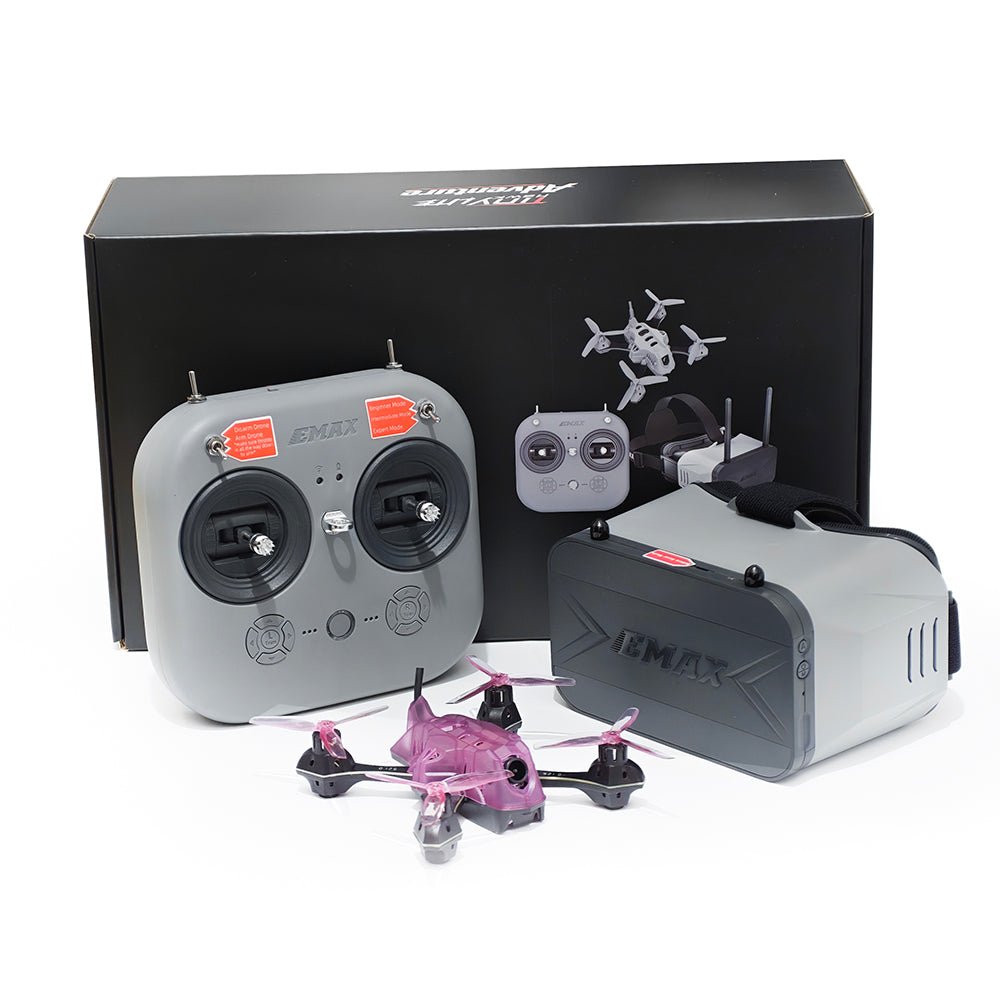

Tinyhawk Lite Adventure Analog 1S ELRS Outdoor RC FPV Racing Drone RTF with E8 Transmitter Remote Controller Transporter II Goggles for Beginners

Aircraft Model: Tinyhawk Lite Adventure

Wheelbase

115mm

Maximum Dimensions

LxWxH=148x144x45mm

Weight

Approx. 59 g (without battery cartridge)

Motor

1020 coreless motor, DC 3.7 V

Propellers

65 mm three-blade propellers

Main Control Board

STM32F411 (100 MHz) MCU, 1S input voltage,

onboard ELRS (2.4 GHz) receiver (SPI communication)

Camera

E02

VTX

32-bit 40-channel open-source VTX

Power: 0/25 mW/100 mW/400 mW

Battery Cartridge

1S HV 850mAh

Transmitter Model: E8 Transmitter (ELRS 2.4 GHz)

Maximum Dimensions

LxWxH=150x140x45mm

Weight

Approx. 260 g (without battery)

Number of Channels

8 channels

Protocol

ELRS 2.4 GHz protocol

Operating Frequency

2.4 GHz band (2400-2483.5 MHz)

Power

10mW/25mW/50mW/100mW

Battery

Built-in 18650 Li-ion battery

Charging System

Built-in USB 1 A linear Li-ion charging system

Operating Voltage

3.7-4.2V

External Ports

Type-C port, 3.5 mm audio port (wired trainer port)

Other

Supports simulator use, stick calibration, left/right-hand mode switching, firmware updates via USB, adjustable power,

adjustable transmit/telemetry rates, and binding-phrase changes

FPV Goggles Model: Transporter II

Maximum Dimensions

LxWxH=155x100x90mm

Weight

Approx. 398 g (including head strap and antennas)

Screen Resolution

480x272

Display Size

4.3 inches

Battery

Built-in 1300 mAh Li-ion battery

Voltage

3.3V-4.2V

Operating Frequency

5.8 GHz band (5658-5945 MHz)

Charging System

Built-in USB 1 A linear Li-ion charging system

External Ports

Type-C port, external mount port
