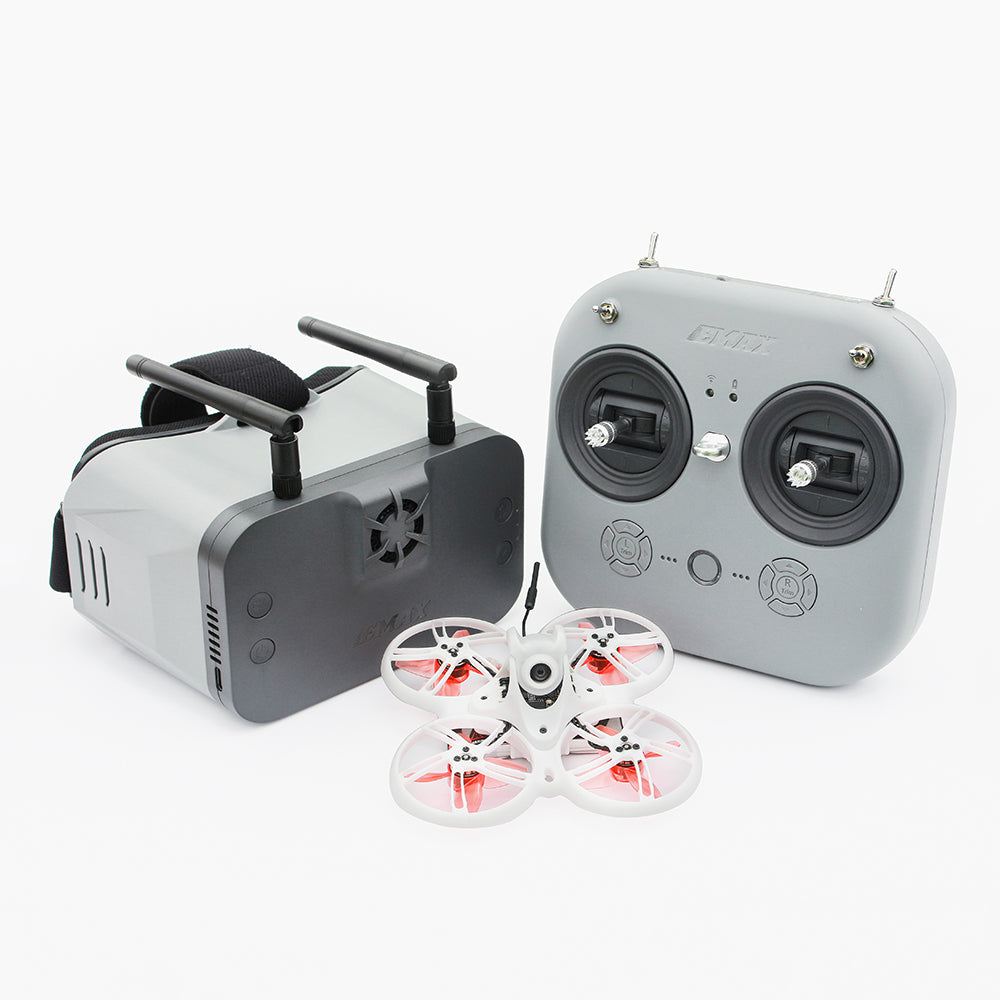

Tinyhawk III Plus Analog / HD Zero Digital 2 Inch 1S Whoop FPV Racing Drone BNF RTF

Aircraft model

 HD version

Analog version

Wheelbase

76mm

Maximum appearance size

L×W×H=105×105×45mm

Weight

about 35.5g (excluding battery)

about 32.5g (excluding battery)

Motor

TH0802 II 15000KV

Propeller

Avan TH Turtlemode-2 (Old version)

AviaTH Propeller ( New Version)

Main control board

F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard ELRS (2.4G) receiver (SPI communication), input voltage 1-2S

Camera

HDZERO Nano Lite Camera

RunCam Nano 6

Image transmission

HDZero whoop Lite 0/25mW/200mW

32-bit 40CH open source image transmission

0/25mW/100mW/200mW

Battery

1S HV 650mAh

Remote Controller (Only RTF Version has) :       E8 Transmitte(ELRS-2.4G)

Maximum appearance size

L×W×H=150×140×45mm

Weight

about 260g (excluding battery)

Number of channels

8 channels

Protocol

ELRS-2.4G protocol

Working frequency

2.4gHz frequency band (2400-2483.5MHz)

Power

10mW/25mW/50mW/100mW

Battery

Built-in 1800mAh 18650 lithium-ion battery

Charging system

Built-in USB1A linear lithium-ion battery charging system

Working voltage

3.7-4.2V

External interface

Type-C interface. 3.5mm audio interface (wired trainer interface)

Others

Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power, support adjustable send/return rate, support changing binding key

FPV Goggles ( Only RTF Version has)

Transporter II HD

Transporter II

Maximum appearance size

145×155×92mm (excluding antenna)

145×155×190mm (including antenna)

L×W×H=150×100×90mm

Weight

about 425g (including headband and antenna)

about 398g (including headband and antenna)

Screen resolution

720*1080

480x800

Display size

4.45 inches

4.3 inches

Battery

Built-in one 2200mAh-2C lithium battery

Built-in one 1300mAh lithium battery

Voltage

3.7-4.2V

Working frequency
