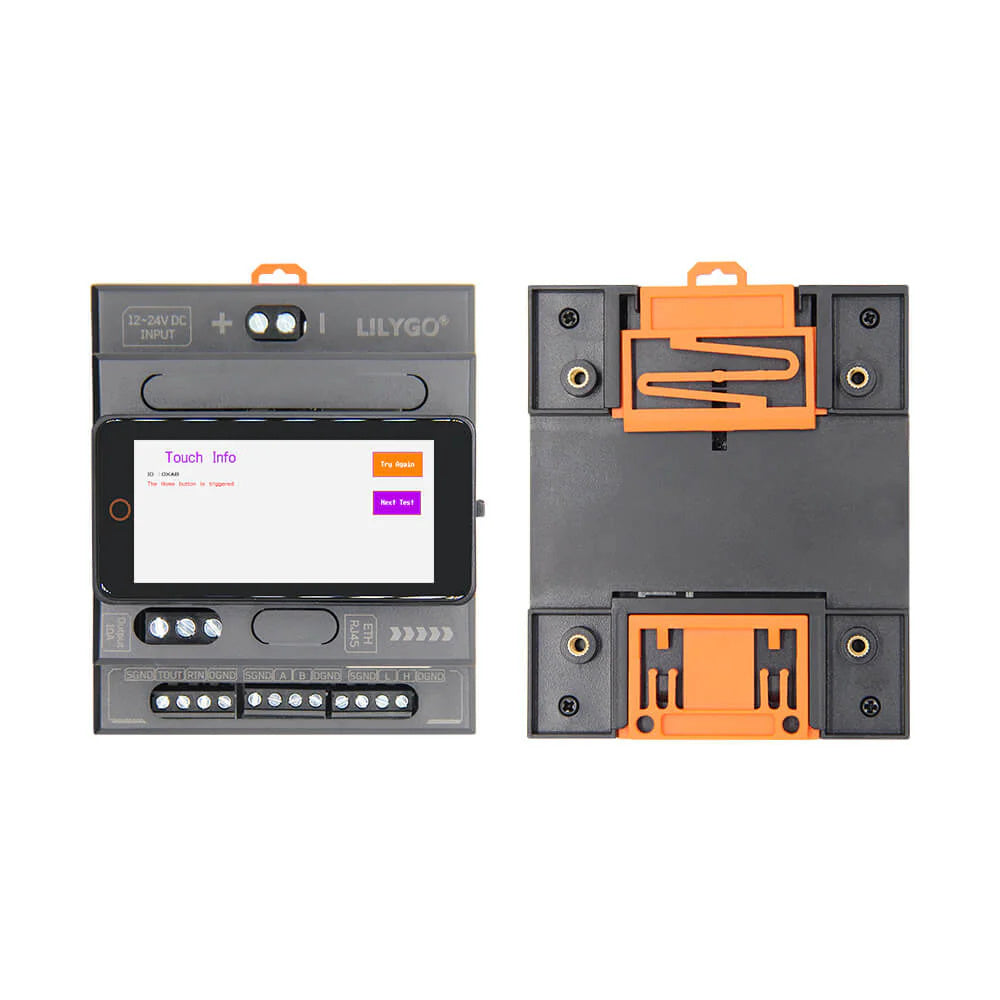

T-Connect Pro ESP32-S3-R8 RS485 RS232 CAN Ethernet Module 2.4GHz Wi-Fi Bluetooth 5 LoRa 16MB Flash 8MB PSRAM 2.33 inch TFT LCD Industrial Control Development Board - Black

Sample Code For Reference[Github]

Specifications:

- MCU: ESP32-S3-R8

- Flash: 16MB

- PSRAM: 8MB

- Programming Platforms: Arduinos-IDE, VS Code

- Onboard Functions: Relay, Capacitive Touch, DC Input

- Communication Support:

  - Wi-Fi: 2.4GHz

  - Bluetooth: 5.0 (LE)

  - LoRa Chip: SX1262 (Bands: 433, 868, 915, 920 MHz)

  - RS485 Module: TD501D485H-A

  - RS232 Module: TD501D232H

  - CAN Module: TD501MCANFD (Isolation Voltage: 2500V)

  - Ethernet Module: W5500 (Bus Interface: SPI 4-Wire)

- Display: 2.33 inch TFT LCD (Drive Chip: ST7796, Resolution: 222 RGB x 480)

- Size: 88 x 72 x 25mm

- USB Charging: 5V, 500mA

Features:

1. Versatile Connectivity:

   - Supports various communication protocols including Wi-Fi, Bluetooth 5 (LE), and LoRa, expanding your connectivity options for diverse applications.

2. High-Resolution Display:

   - Equipped with a 2.33-inch TFT LCD featuring a sharp 222 RGB x 480 resolution, perfectly suited for intricate visual displays and interfaces.

3. Robust Microcontroller:

   - The ESP32-S3-R8 MCU ensures high performance with 16MB Flash and 8MB PSRAM, capable of handling complex processing tasks efficiently.

4. Multi-programming Platforms:

   - Compatible with both Arduinos-IDE and VS Code, offering flexibility and ease of development for different programming preferences.

5. Integrated Interfaces and Modules:

   - Incorporates RS485, RS232, CAN, and Ethernet modules, making it an ideal controller for industrial and network applications with a variety of I/O demands.

Package Included:

1 x T-Connect Pro

1 x Antenna
