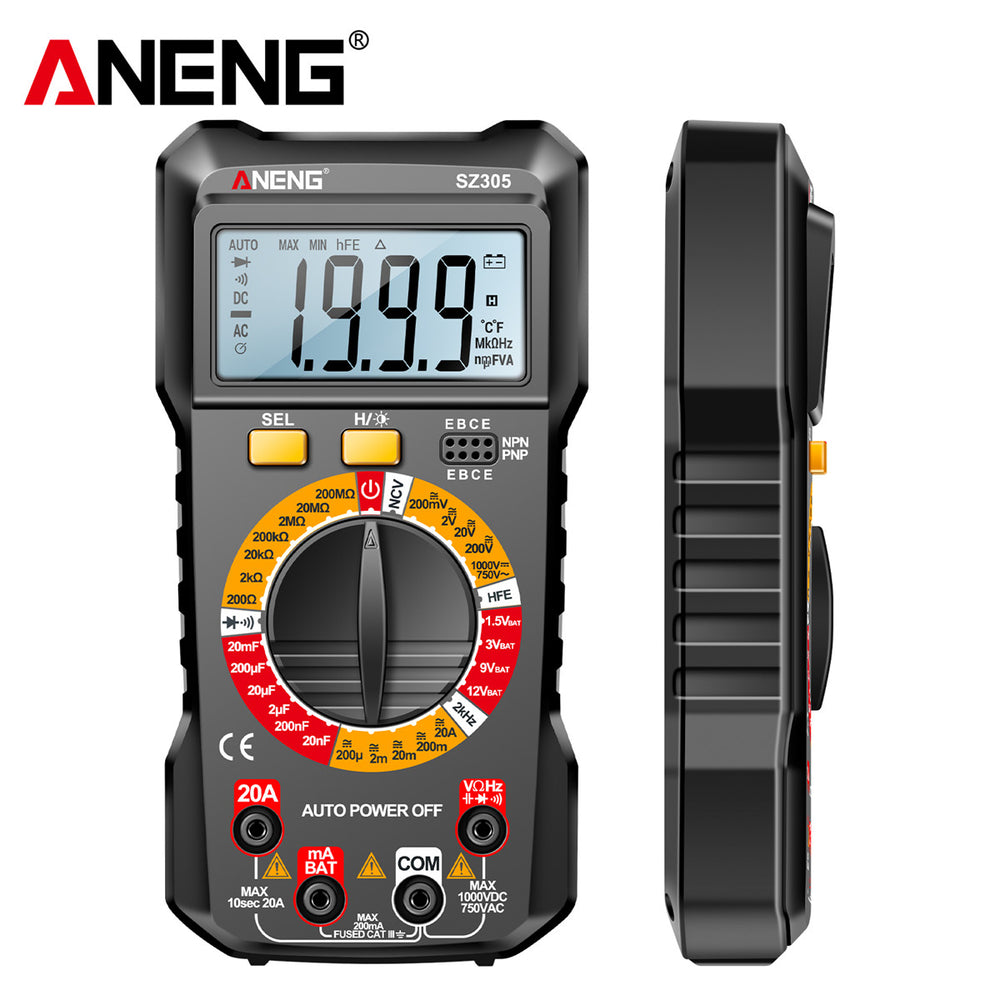

SZ305 1999 Counts Multimeter Capacitor Testers Professional Smart Voltmeter AC/DC Votage Current Resistance Ohm Test Tools - Black
Description
Features:
Comprehensive Measurement Capabilities: The ANENG SZ305 Digital Multimeter is a robust device capable of measuring AC/DC voltage, AC/DC current, resistance, capacitance, and frequency, ensuring a wide range of electrical testing possibilities.
Enhanced Functionalities: The multimeter comes with diode data retention, hFE triode, a buzzer, and non-contact voltage (NCV) detection features. It also includes a comprehensive battery detection system for 1.5V, 3V, 9V, and 12V batteries.
User-Friendly Design: With a digital display with backlight for easy reading, automatic power-off for energy efficiency, data retention capability, and a low battery indication feature, the SZ305 offers a seamless user experience.
Durable and Lightweight: Made with durable ABS material and weighing just 158g, this multimeter combines longevity and convenience for everyday use.
Specifications:
Function |
Resolution |
Range |
Accuracy |
AC Voltage |
0.1mV-1V |
200mV-750V |
±(1.5%+5d) |
DC Voltage |
0.1mV-1V |
200mV-1000V |
±(1.5%+10d) |
AC Current |
0.1uA-10mA |
200uA-10A |
±(2.5%+10d) |
DC Current |
0.1uA-10mA |
200uA-10A |
±(2.0%+10d) |
Resistance |
0.1Ω-100kΩ |
200MΩ |
±(5.0%+10d) |
Capacitance |
20mF |
0.01nF-10uF |
±(6.0%+20d) |
Frequency |
0.1Hz-1Hz |
2kHz |
±(1.5%+8d) |
Package Included:
1 x ANENG SZ305 Digital Multimeter
1 x User Manual
1 x Original Packaging Box
