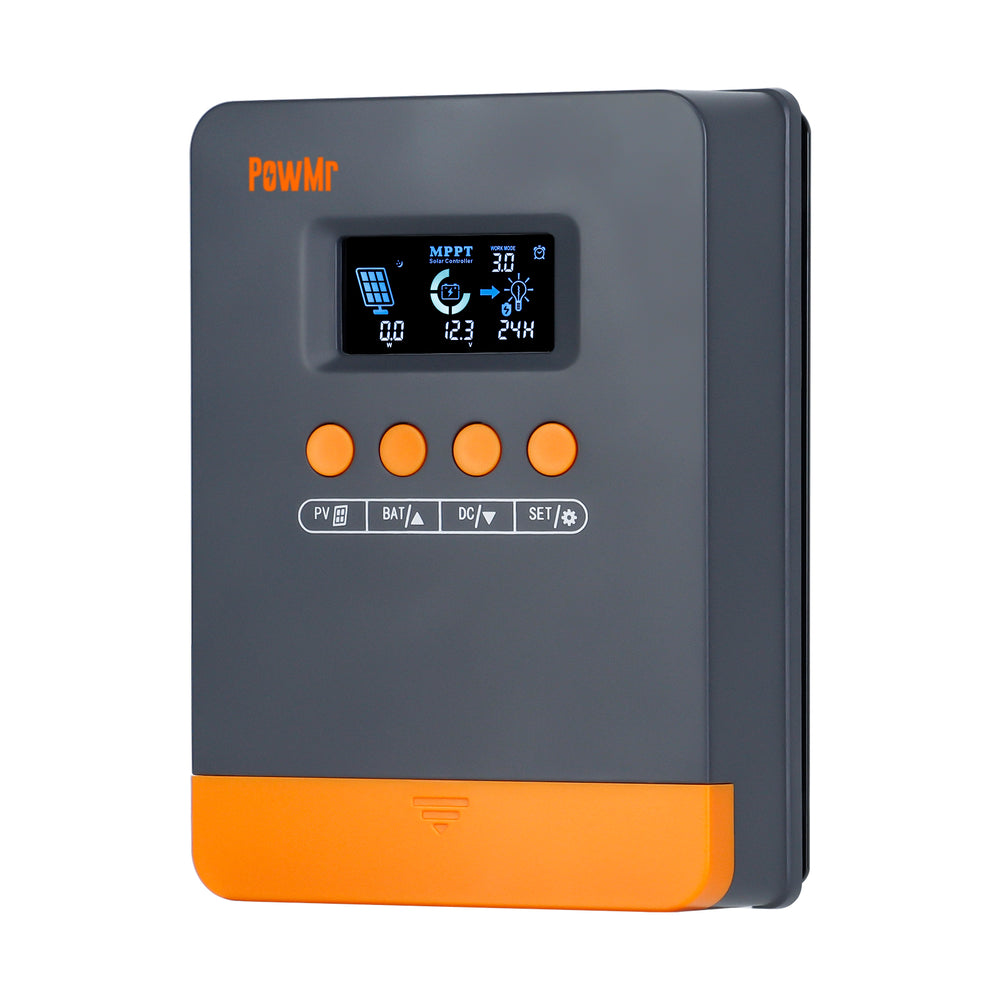

Solar Charge Controller 25A 35A 45A 12V/24V Max Power 100V High Efficiency 98% Auto Voltage Recognition

Specifications:

Model: 25A, 35A, 45A

Maximum PV Open Circuit Voltage: 100V

Maximum Input Power:

300W (12V System), 600W (24V System) for 25A

420W (12V System), 840W (24V System) for 35A

540W (12V System), 1080W (24V System) for 45A

MPP Voltage Range:

<60V (12V System) / <80V (24V System) for 25A

<60V (12V System) / <100V (24V System) for 35A and 45A

Battery Voltage Range: 9~30V

Rated Charge Current: 25A, 35A, 45A

Conversion Efficiency: >98%

Maximum MPPT Efficiency: >99%

Operating Temperature Range: -35℃~+45℃

Humidity: <95%, Non-condensing

Altitude: <3000m

IP Level: IP32

Dimensions:

160x115x51mm (25A)

195x135x65mm (35A, 45A)

Net Weight:

500g (25A)

900g (35A)

1035g (45A)

Features:

Advanced MPPT Technology: Ensures maximum power extraction from your solar panels, optimizing energy conversion and efficiency.

Auto System Voltage Recognition: Automatically detects 12V/24V systems, making installation and monitoring easy and user-friendly.

High Conversion Efficiency: Achieves conversion efficiency of over 98%, guaranteeing superior performance in energy management.

Robust Operational Range: Capable of operating under extreme temperatures from -35°C to +45°C and at altitudes up to 3000 meters.

Smart Battery Management: Features a 3-stage charging algorithm, enhancing battery life and performance.

Package Included:

Type A:

1 x Solar Controller (25A)

Type B:

1 x Solar Controller (35A)

Type C:

1 x Solar Controller (45A)

Type D:

10 x Plugs
