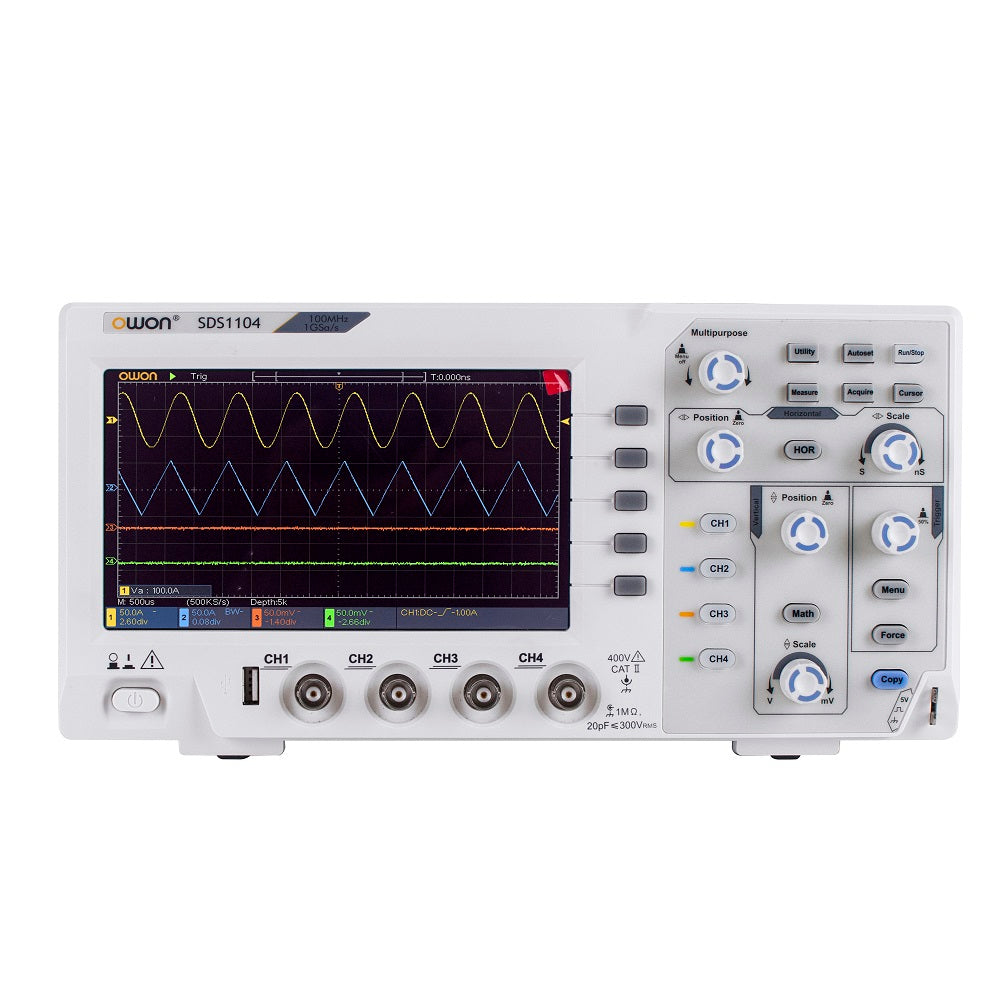

SDS1104 Oscilloscope 100MHz Bandwidth 4-Channels 1GS/s Sample Rate 7 Inch High Resolution LCD for Electronic Circuit Debugging and Testing
Description
Features:
High Performance: The OWON SDS1104 oscilloscope offers a 100MHz bandwidth and a 1GS/s sample rate, ensuring accurate and high-resolution signal observations.
Four Channels: The device boasts a 4-channel configuration, offering a broader range of signal tracking and compatibility with various testing and debugging requirements.
Advanced Display: It features a 7-inch, high-resolution LCD, providing clear and easy-to-read measurements.
Special Features: With SCPI and LabVIEW support, the device enhances functionality and versatility for the user.
Thin Design: Despite the powerful performance, it retains an thin body, ensuring it’s convenient for carrying and handling.
Model |
SDS1104 |
|
Bandwidth |
100MHz |
|
Sample Rate |
1GS/s |
|
Horizontal Scale (s/div) |
2ns/div - 1000s/div, step by 1 - 2 - 5 |
|
Rise Time (at input, typical) |
≤3.5ns |
|
Channel |
4 |
|
Display |
7" color LCD, 800 x 480 pixels |
|
Input Impedance |
1MΩ ± 2%, in parallel with 20pF±5pF |
|
Max Input Voltage |
400V (PK - PK) (DC+AC, PK - PK) |
|
DC Gain Accuracy |
±3% |
|
Record Length |
20K |
|
DC Accuracy (average) |
Average≥16：±(3% reading + 0.05 div) for △V |
|
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
|
Sample Rate / Relay Time Accuracy |
±100ppm |
|
Interpolation |
sin (x) / x |
|
|
Interval (△T) Accuracy (full bandwidth) |
Single : ±(1 interval time + 100ppm x reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns) |
|
Input Coupling |
DC, AC , and GND |
|
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
Vertical Sensitivity |
5mV/div - 5V/div (at input) |
|
Trigger Type |
Edge, Video |
|
Trigger Mode |
Auto, Normal, and Single |
|
Trigger Level |
±5 divisions from screen center |
|
Line / Field Frequency (video) |
NTSC, PAL and SECAM standard |
|
Cursor Measurement |
△V, and △T between cursors |
|
Automatic Measurement |
Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B, area, cycle area, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
|
Waveform Math |
＋, －, x, ÷, invert, FFT |
|
Waveform Storage |
16 waveforms |
|
|
Lissajous Figure |
Bandwidth |
Full bandwidth |
Phase Difference |
±3 degrees |
|
Communication Interface |
USB host, USB device |
|
Frequency Counter |
available |
|
Power Supply |
100V - 240V AC, 50/60Hz, CAT II |
|
Power Consumption |
＜15W |
|
Fuse |
2A, T class, 250V |
|
Dimension (W x H x D) |
301 x 152 x 70 mm |
|
Device Weight |
1.10 kg |
|
