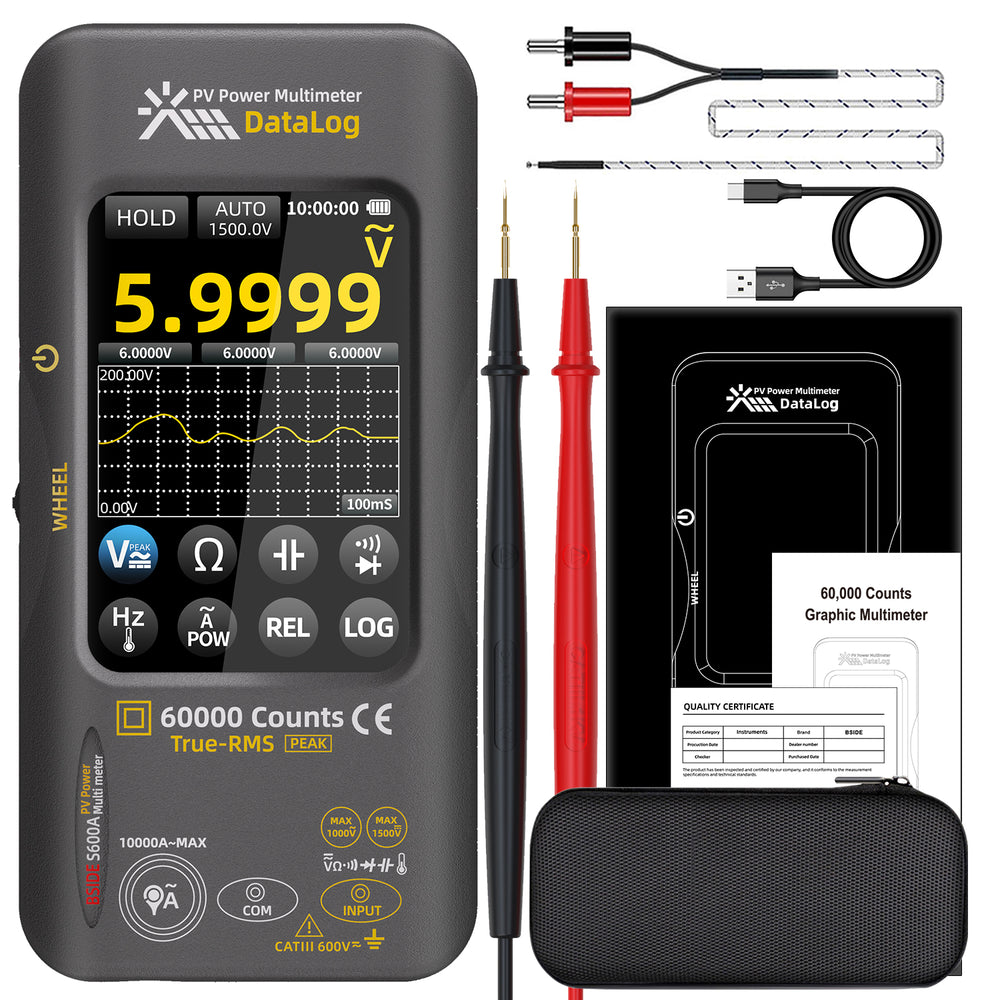

S600A Graphic Multimeter 3.98TFT Touch Screen 60000 Counts Data Logger True-RMS Graphic Tester Photovoltaic Multimeter - Black

>>Please click here to download the S600A Chinese and English manual<<

Specifications

Product Name: 60,000 Counts Graphic Multimeter

Model: S600A

Overall Dimensions: 169mm x 81mm x 26.8mm

Net Weight: 260g (With battery)

Display Screen: 3.98TFT color screen

Charging Interface: Type-C Port

Battery Type: 3000mAh (Lithium battery)

Auto Power Off: Support

Data Record Export: Support

Working Environment: Temperature: 0~40°C, Humidity: < 75%

Storage Environment: Temperature: Temperature: -20~60°C, Humidity: < 80%

Operation Mode: Touch screen operation / Jog key operation

Features

1) Features a full touch screen for one-tap control. Slide to adjust parameters and scan waveforms, allowing for efficient one-handed operation.

2) Equipped with a scroll wheel key for instant, fast parameter adjustment. Maximizes efficiency for a smooth, one-handed blind operation.

3) High-precision 60000 counts with a 3.98-inch TFT color screen. Clearly displays measurements and graphical waveforms for detailed analysis.

4) Integrated data logging function with export support. Conveniently record measurement data for analysis and reporting.

5) Specifically designed for photovoltaic applications. Measures up to 1500V DC, making it ideal for solar system installation and maintenance.

Package included

1 x S600A Multimeter

1 x Pair of Test Leads

1 x K-type Thermocouple

1 x Charging Cable

1 x Carrying Case

1 x User Manual
