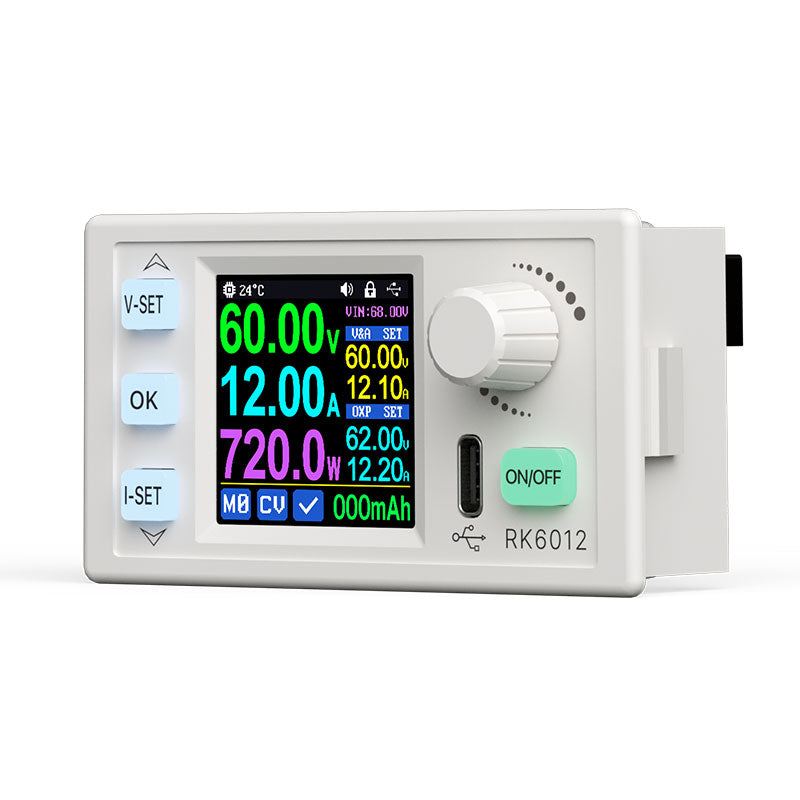

RK6012 RK6012BT 60V 12A 720W Step-Down DC-DC Voltage Transformer Model Adjustable Digital Control DC Regulated Power Supply Constant Voltage Current Meter

Specification:

Model: RK6012/RK6012-BT (optional) Input voltage range: 12-70.00V Output voltage range: 0-60.00V Output current range: 0-12.00A Output power range: 0-720W Input voltage measurement resolution: 0.01V Output voltage setting measurement resolution: 0.01V Output current setting measurement resolution: 0.01A Input voltage measurement accuracy: ±(1%+5 digits) Output voltage accuracy: ±(0.3%+3 digits) Output currentaccuracy:±(0.5%+2 digits) Output ripple typical:100mV VPP① Working temperature range: -10℃~40℃ External sensor Temperature detection range:-10℃~100℃/0℉~200℉ External sensor Temperature detection accuracy:±3℃/±6℉ Constant voltage moderesponse time: 2ms（0.1A-5A Load） Constant voltage mode load regulation: ±(0.1%+2 digits) Constant current mode load regulation: ±(0.1%+3 digits) Capacity measurement range: 0-9999.99Ah Energy measurement range: 0-9999.99Wh Capacity and energy statistical error: ±2％ Buck working mode: （input voltage÷1.1)-1② Over temperature protection: System temperature >85℃ Screen brightness setting: 0-5(6 level in total) Screen: 1.54 inch 240*240 color HD display Cooling fan start condition：Output current >6A or System temperature >55℃ Cooling fan shut down condition：Output current<5.9Aand System temperature <45℃ Weight(with package): About 0.17kg Product dimension: 79*43*55mm Support USB communication: yes Support Bluetooth communication: Only RK6012-BT supports ①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals ②for example: input voltage is 24V，the max output voltage is 20.8V

Package includes:

1 x Power supply
