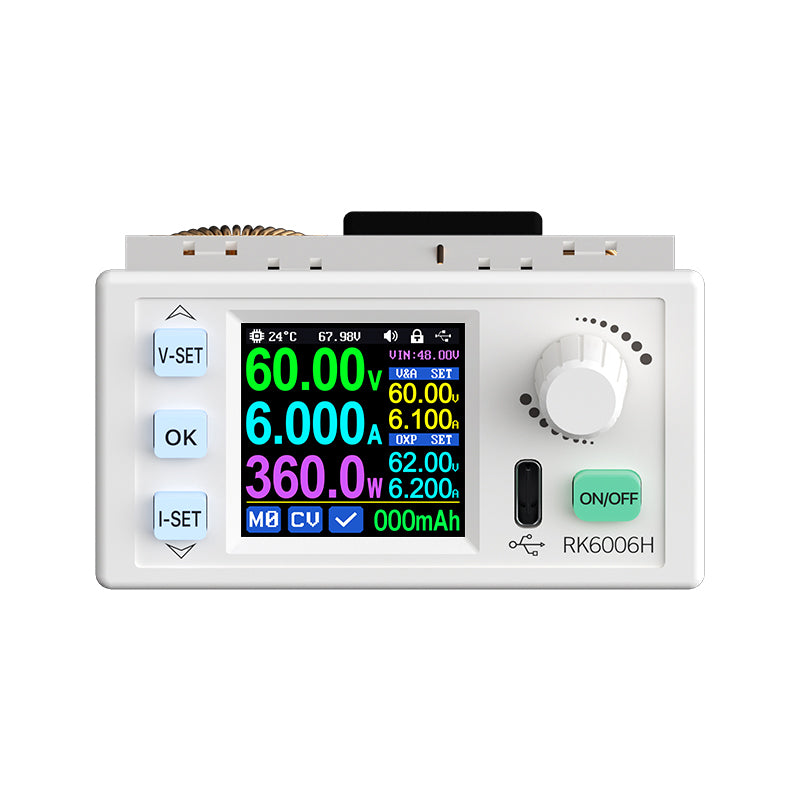

RK6006H/RK6006H-BT 60V 6A 360W Step Up Step Down Voltage Module Adjustable Digital Control DC Regulated Power Supply Constant Voltage Current Meter

Specification:

Model: RK6006H/RK6006H-BT (optional) Input voltage range: 7-70.00V Max input current: 8A Output voltage range: 0-60.00V Output current range: 0-6.000A Output power range: 0-360.0W Input voltage measurement resolution: 0.01V Output voltage setting measurement resolution: 0.01V Output current setting measurement resolution: 0.001A Input voltage measurement accuracy: ±(1%+5 digits) Output voltage accuracy: ±(0.3%+3 digits) Output currentaccuracy:±(0.5%+5 digits) Output ripple typical:100mV VPP① Working temperature range: -10℃~40℃ Constant voltage moderesponse time: 2ms（0.1A-5A Load） Constant voltage mode load regulation: ≤0.5% or ≤100mV（greater one） Constant current mode load regulation: ≤0.5% or ≤100mV（greater one） Capacity measurement range: 0-9999.99Ah Energy measurement range: 0-9999.99Wh Capacity and energy statistical error: ±2％ Buck boost mode Over temperature protection: System temperature>85℃ Screen brightness setting: 0-5(6 level in total) Screen: 1.54 inch 240*240 color HD display Cooling fan start condition：Input current>5A or output current>5A or System temperature>55℃ Cooling fan shut down condition：Output current<4.9Aand System temperature<45℃ Weight(with package):About 0.17kg Product dimension: 79*43*55mm Support USB communication: yes Support Bluetooth communication: Only RK6006H-BT supports

Note: This device does not contain temperature sensor cable ①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals ②for example: input voltage is 24V，the max output voltage is 20.8V

Package includes:

1 x Power supply
