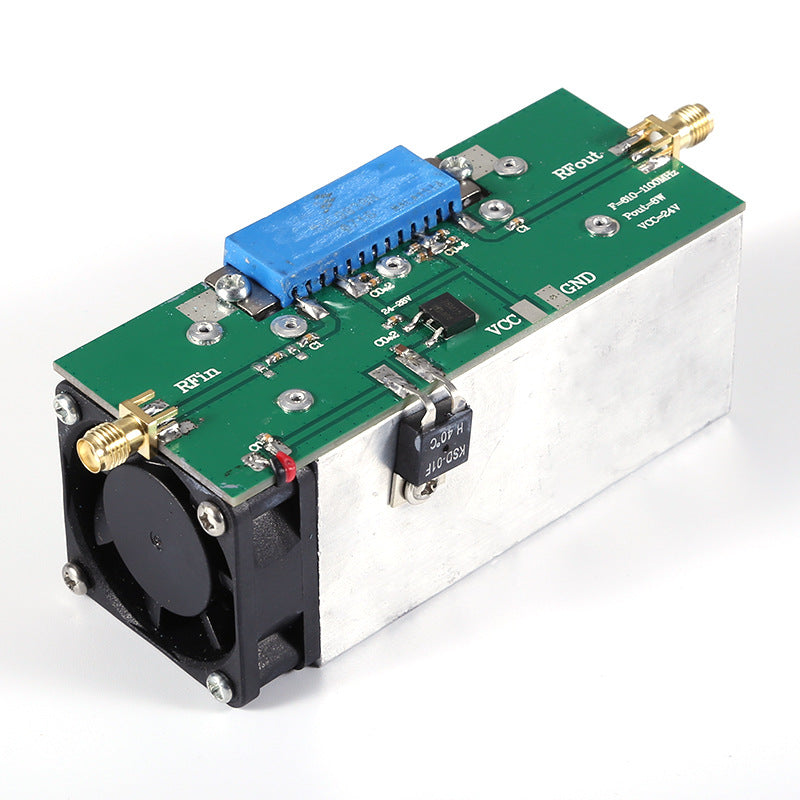

RF Power Amplifier 600-1100MHz 30dB Gain 8W Output 24-28V SMA-K Interface Active Air Cooling Compact Design for Enhanced Signal Boost - Green

Specifications:

- Operating Frequency: 600-1100MHz

- Operating Voltage: 24-28V

- Operating Current: 800mA

- Gain: 30dB

- Output Power: 8W (P1, Pmax)

- System Impedance: 50 Ohms

- Maximum Input: 20mW (13dBm)

- Interface Type: SMA-K (Standard Female, Outer Thread Inner Hole)

- Dimensions: 40*100*48mm (L*W*H, excluding connectors)

- Cooling Method: Active Air Cooling

Features:

1. Wide Frequency Range: With an operating frequency range from 600 to 1100MHz, this RF power amplifier is perfect for a variety of applications requiring exceptional signal clarity and strength.

2. Robust Power Supply: Operates smoothly on a voltage range of 24-28V, ensuring consistent performance under varying power conditions, making it a reliable choice for professional applications.

3. High Gain Performance: Provides a substantial gain of 30dB, amplifying weak signals effectively and allowing for greater reach and improved signal strength.

4. Efficient Output: Capable of delivering an impressive output power of 8W, ensuring that your system obtains the necessary power to function optimally.

5. Compact and Easy to Install: The compact dimensions of 40*100*48mm make it easy to integrate into your existing setup without taking up much space. Active air cooling helps maintain optimal operating temperatures.

Package Included:

1 x RF Power Amplifier
