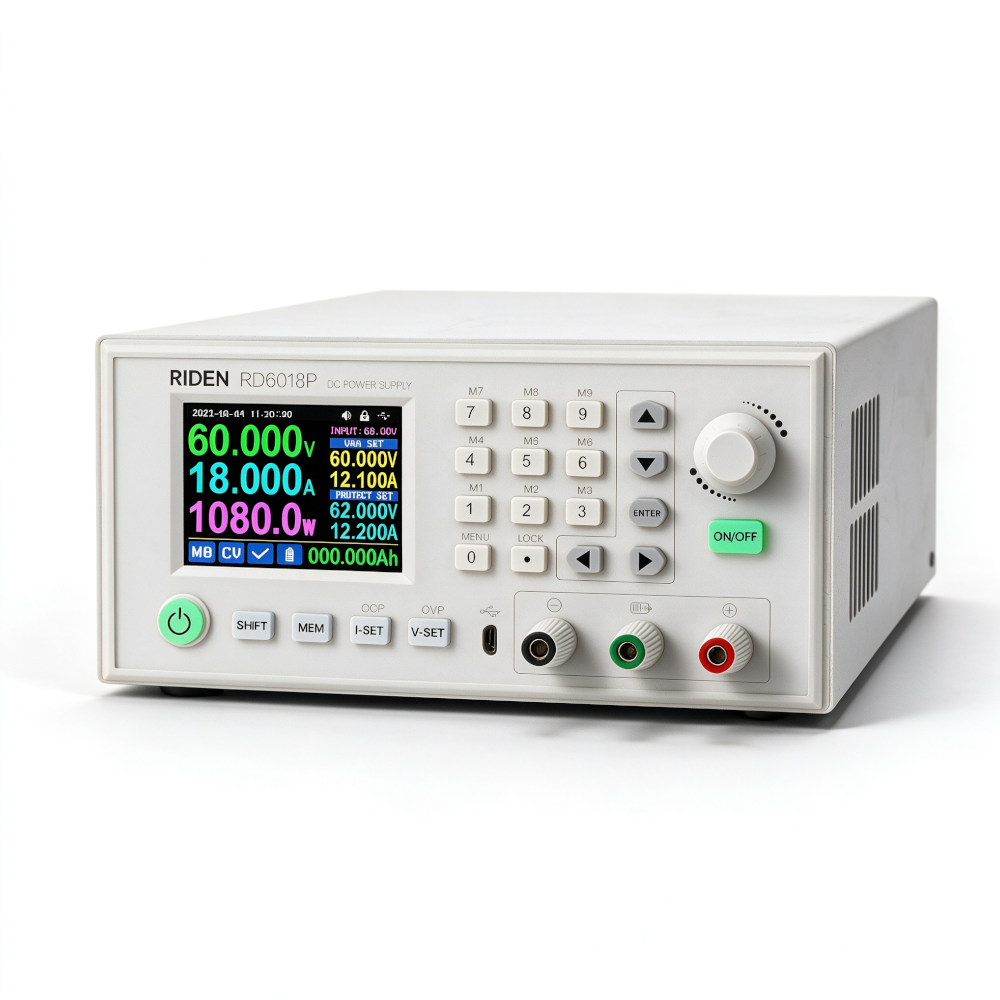

RD RD6018P 1080W Completed Set 60V 18A AC to DC Digital Adjustable Lab Bench Power Supply for Repair CNC Adjustable DC Regulated Power Supply

Note about the noise about 1200W PSU: 1. There is a high-frequency noise when the switching power supply is unloaded, Due to the large output power range of the product, in order to reduce the power consumption of the switching power supply when no-load, the PWM control chip will jump some control cycles. Assume that the original working frequency is 60KHZ. If there are more skipping cycles, the working frequency will be reduced to less than 20KHZ. This Sometimes a noise audible to human ears is produced. The size of this noise is also related to the production process of the transformer. Since the winding and paint impregnation of each transformer coil are slightly different, the noise of each product's operation is slightly different. 2. There is a loud sound when the fan is running; when the ambient temperature is high, the fan may work even if it is unloaded. These are normal phenomena. It is recommended to turn off the AC switch when the product is not in use! If you mind it, please do not buy it. NOTE: 1. This Set is already assembled, you can connect AC power directly! Now there are 2 choices(US/EU Plug) , the only difference is the AC cable and input AC voltage request. others are same. 2. This set does not have the WiFi card for APP connection, and does not have battery(CR1220) for date/time display 3. If you want to install the WiFi card, you need to know that you must install the battery first, if you instll the WiFi card, you cannot remove it and install the battery again. 4. 1200W PSU is 1200W under 220V AC input, but it is only 1000W under 110V AC input, please be careful when making orders.

Specification:

Model: RD6018P Completed Set

Input voltage range: 100-120V/200-240V AC

Output voltage range: 0-60.000V

Output current range: 0-18.000A

Output power range: (AC220V)0-1080W / (AC110V)0-950W

Output voltage resolution: 1mV

Output current: 1mA

Output voltage accuracy: 0.05%+4mV

Output currentaccuracy: 0.1%+6mA

Default cutoff current value when charging: 10mA

Output ripple typical: 20mV

Working temperature range: -10℃~40℃

External sensor Temperature detection range: -10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy: ±3℃/±6℉

Constant voltage moderesponse time: 22uS @0.5A-18A

Constant voltage mode load regulation: ±(0.1%+0.2mV)

Constant current mode load regulation: 0.1%+3mA

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: （input voltage÷1.1）-1

Over temperature protection: System temperature>90℃

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4 inch color HD display

Cooling fan start condition: Output current>6A or System temperature>45℃

Cooling fan shut down condition:Output current <5.9A and System temperature <40℃

Package size: 41x24x17cm

Package weight: about 3.6kg

Package includes:

1 x Power Supply
