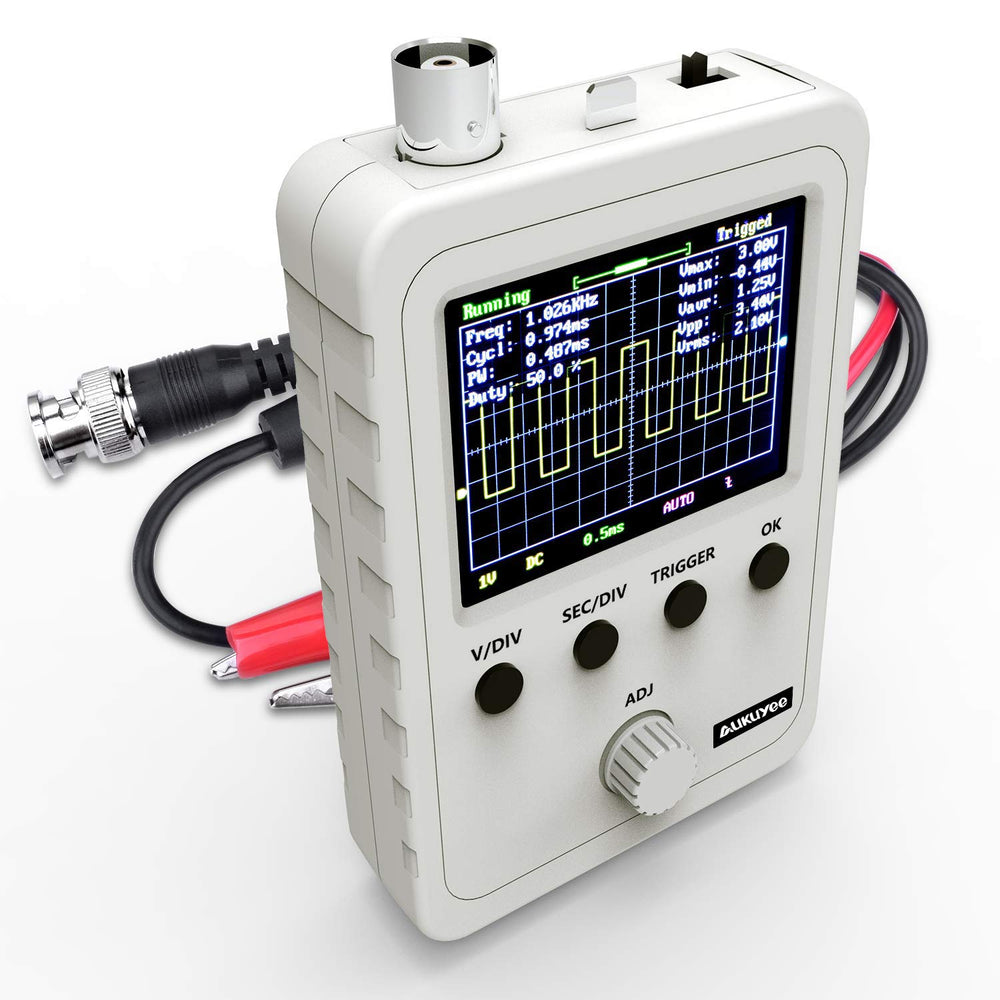

Q15001 Handheld Digital Oscilloscope Kit 2.4" TFT Display 5mV/div-20V/div Sensitivity Pre-Assembled with Rotary Encoder and Power Supply

Features:

Upgraded Sensitivity: The Q15001 model offers enhanced sensitivity ranging from 5mV/div to 20V/div, providing a wider and higher sensitivity for more accurate measurements. Calibration is recommended before use.

Integrated Design: The display and MCU are mounted on the same board to eliminate inter-board pin-headers. Analog channels are on a separate board, improving the separation of analog and digital circuits for better performance.

Rotary Encoder: The addition of a rotary encoder facilitates quicker and easier parameter adjustments, enhancing the user experience and efficiency.

Assembly-Free: The Q15001 comes pre-assembled, eliminating the need for DIY assembly and potential welding issues, saving users time and effort while ensuring immediate usability.

Complete Package: Includes a Q15001 oscilloscope, BNC-clip cable, and power supply. It also comes with detailed operation instructions, a troubleshooting guide, and a schematic for comprehensive support.

Specifications:

Brand: FNIRSI

Model: Q15001

Display: 2.4" TFT

Sensitivity Range: 5mV/div - 20V/div

Design: Integrated display and MCU

Additional Feature: Rotary Encoder

Assembly: Pre-assembled

Optional Plug Type: EU Plug/US Plug

Package Included:

1 x Assembled Oscilloscope

1 x BNC-Clip Cable

1 x Power Supply (Plug Type As Your Choice)

1 x English User Manual

1 x Troubleshooting Guide

1 x Schematic
