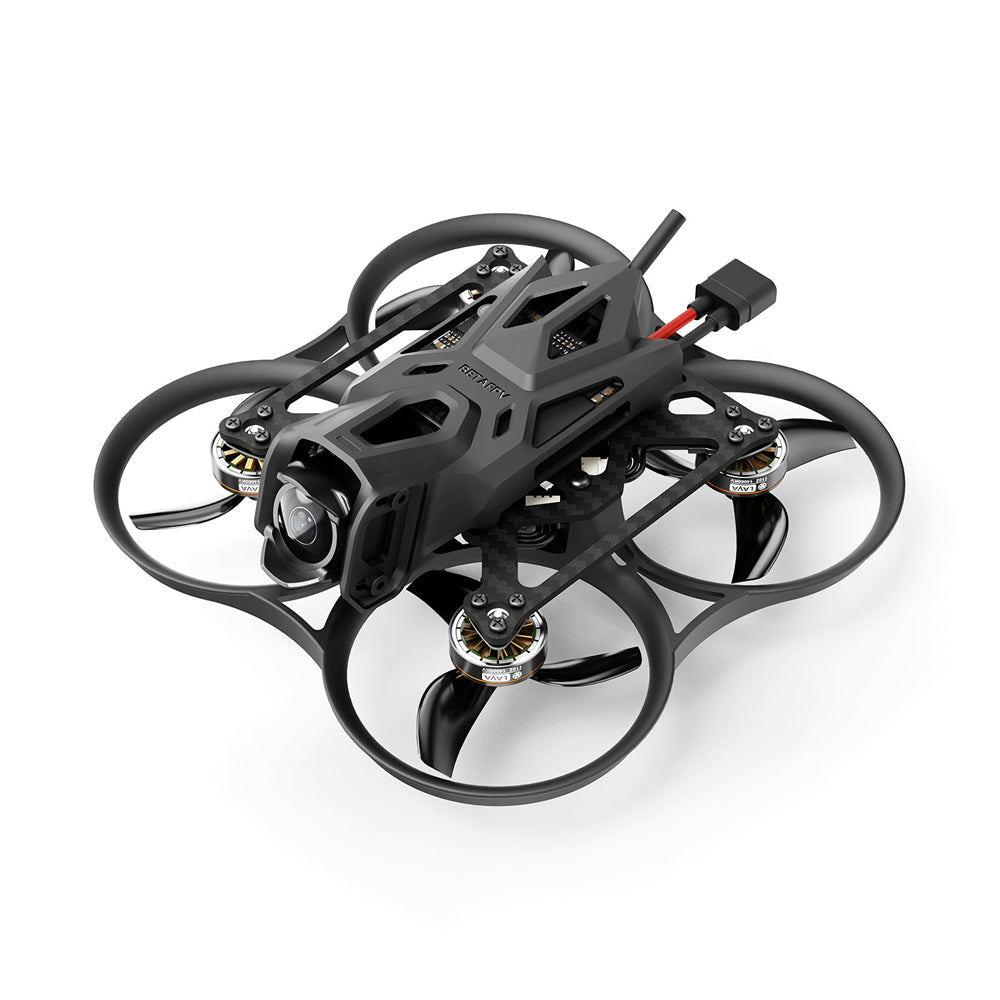

Pavo Pico II HD O4 Wide 80mm 2S Brushless Cinewhoop FPV Racing Drone ELRS SBUS BNF with F4 20A AIO FC 1102 14000KV Motor

Description:
The next-generation Pavo Pico II is the ultimate compact cinewhoop, completely redesigned for the DJI O4 system. It features a new rigid frame with guided mounting for easy assembly, the innovative O4 Bracket II with 4 shock absorbers to eliminate jello, and a new carbon plate that fits the O4, O4 Wide and O4 Pro air units. Powered by upgraded 1102 motors for 10% more power and efficiency, all in a lightweight design, it delivers stunning, smooth 4K footage wherever you fly. Maximum Performance, Minimal Size.

Bullet Points:
- O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.
- Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
- DJI O4, O4 Wide & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates O4, O4 Wide and O4 Pro for stunning HD footage and build versatility.
- New Propulsion: The upgraded 1102 motors and GF 45mm props deliver a remarkable 10% power increase for explosive thrust, while also enabling extended flight times.
- Small and Lightweight: At a mere 53.7g/59.0g with an 80mm wheelbase, this pocket-sized powerhouse combines an ultra-lightweight design with the raw thrust.
- Advanced Flight Controller: F4 20A AIO FC with dual BECs, supporting 9V 2A for HD VTX and 5V 3A for external devices.

Specifications:
Model: Pavo Pico II
Product Name: 80mm 2S Brushless Whoop Quadcopter
Color: Black
Wheelbase: 80mm
Frame: Pavo Pico II Brushless Whoop Frame
FC: F4 2-3S 20A AIO FC
Motor: 1102 | 14000KV
Propellers: GF 45mm 3B Propellers
Battery Connector: XT30
Battery Slot: 16*12.7mm
Flight Time: 6:10 (O4 Wide version with 2S 550mAh batteries)
Weight: 59.0g
RX Version(Optional): Serial ELRS, DJI SBUS

Cinematic Clarity in the Palm of Your Hand
Under 60g with an 80mm wheelbase, the Pavo Pico II delivers breathtaking HD performance in a compact design. Paired with the DJI O4 and O4 Wide Air Unit—offering a remarkable 159° ultra-wide FOV—it captures 4K/60fps video with ultra-low 20ms latency and incredible 10km transmission range. From tight indoor spaces to wide-open skies, experience cinematic quality wherever you fly.

O4 Bracket II: Eliminate the Jello
Building on our prroven design, the next-generation O4 Bracket II is engineered for one goal: perfect jello-free video. The first-generation bracket untilizes separate shock-absorbing components for the O4 camera, which is lightweight but complex to assemble and occasionally prone to jello from imperfect installation. In contrast, the O4 Bracket II introduces a fully integrated vibration-damping system. The camera is securely mounted with 4 screws for simplicity and rigidity, while 4 soft-mounted shock-absorbing balls replace rigid connections to isolate vibrations effortlessly. This refined approach eliminates complexity while delivering superior damping performance and long-term stability—so you can focus on capturing flawlesss video.

Pavo Pico II Frame
The Pavo Pico II frame revolutionizes assembly simplicity. Featuring embedded nuts, it requires just four screws for a secure connection that withstands crashes and ensures hassle-free building. Its advanced injection-molding technology combines a supported structure and three guided mounting points, guaranteeing perfect carbon plate alignment every time while eliminating flex for an incredibly rigid platform. This streamlined approach makes building a durabl and high-performance setup easier than ever.

The newly designed carbon plate seamlessly integrates the DJI O4, O4 Wide and O4 Pro, future-proofing your build and empowering you to capture stunning HD footage without compromise. With pre-tuned PID parameters optimized for O4 systems, achieving peak performanc is effortless—simply select your configuration via the OSD and fly with confidence.

For pilots seeking even greater versatility, the frame supports extensive DIY customization. Attach battery straps or 3D-printed components to accommodate various battery sizes, tailoring your setup to match specific flight preferences and performance requirements.

Flight Controller
The Pavo Pico II features an F4 2-3S 20A AIO Flight Controller specifically designed for HD VTX. Equipped with a dual BEC solution, it provides stable power outputs of 9V 2A for the DJI O4 system and 5V 3A for external devices. The 20A ESC ensures agile and dynamic flight performance, while dedicated HD VTX 6-Pin connectors and a conveniently positioned USB ports simplify installation and maintenance. This FC brings exceptional reliability and professional-grade functionality for Pavo Pico II.

Powerful Propulsion System
Experience a leap in performance with the all-new 1102 14000KV motors and custom-engineered Gemfan 45mm 3 blade props. This optimized combination delivers a massive 10% increase in propulsion for explosive acceleration, while also achieving remarkable efficiency for extended flight times up to 6:30 minutes.

Recommended Parts (Not Included):
Frame: Pavo Pico II Brushless Whoop Frame
Motor: 1102 | 14000kv Brushless Motor
Propeller: GF 45mm 3-Blade Propeller
Battery: 2S 580mAh/680mAH Battery, 2S 450mAh Battery, 2S 550mAh Battery
FC: F4 2-3S 20A AIO FC
Accessory: Canapy II for O4 Air Unit, O4 Air Unit Bracket II
Supported VTX: DJI O4 Air Unit, O4 Wide Air Unit, O4 Air Unit Pro

Package Included:
1 * Pavo Pico II Brushless Whoop Quadcopter (O4 Wide Version)
1 * DJI O4 Air Unit User Manual
4 * GF 45mm 3-Blade Propellers
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
2 * Shock-absorbing Balls for O4 Air Unit Bracket II (8.8mm)
1 * Phillips Screwdriver
1 * H1.5 Hex Screwdriver
