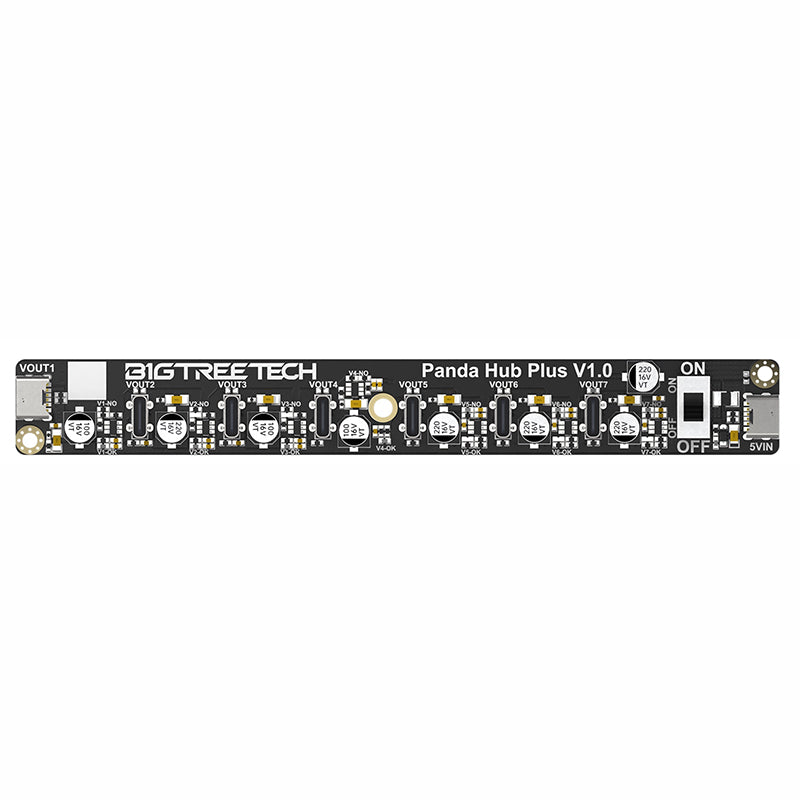

Panda Hub Plus Power Management Multi-Device Power Extended Connections Smart Control for Bambu Lab A1 P1 X1 3D Printer

Specifications:
Product Name: Panda Hub Plus
Features: Neat chamber installation with 7 precision power outputs.
Application Scenarios: Internal power supply for P1 series printers with neat cable management. Centralized power supply for printer peripherals.
Compatibility: P1P / P1S / X1C / X1E / A1 / A1 mini
Power Input: Type-C input (included adapter: 5V / 5A). Can also be powered via Panda Branch Plus 5V/5A output.
Built-in Gateway: None
Output Ports: 3 × Type-C (3A), 4 × Type-C (1.5A). Total: 7 outputs with a shared main switch.
Web UI + BIQU APP Control: None
Protection Features: ESD Protection, Over-Current Protection.
Important Notes: Uses included 5V / 5A adapter or Panda Branch Plus 5V/5A output.
Dimensions: 160 × 20 mm

Features：
1. Neat In-Chamber Installation: Designed to mount directly inside P1 series printers, hiding cables for a clean and professional setup.
2. 7-Port Power Expansion: Expands a single power source into seven Type-C outputs to run multiple accessories like lights, fans, and cameras at once.
3. Versatile Power Delivery: Features three high-power 3A ports for demanding devices and four standard 1.5A ports for lower-consumption peripherals.
4. Flexible Powering Options: Can be powered directly from the printer’s main supply (saving an outlet) or with the included 5V/5A wall adapter.
5. One-Touch Master Control: A convenient physical switch allows you to cut power to all 7 ports simultaneously for complete shutdown and safety.
6. Essential Safety Protections: Integrated ESD and Over-Current protection shields your valuable printer and accessories from electrical faults.

Package Includes：
1x Panda Hub Plus
1x Power Adapter (5V / 5A)
2x USB-C Cables
10x Cable Clips
1x C14 to C13 Cable
1x PTFE Tube Silicone Guide
3x M3×14 Screws
2x M3×20 Screws
