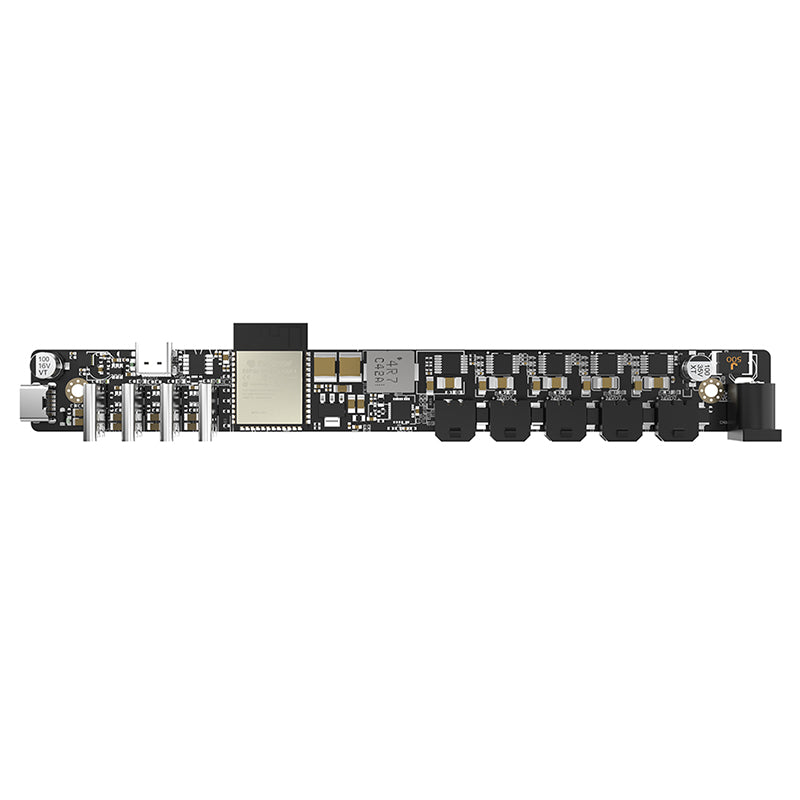

Panda Branch Plus Power Management Multi-Device Power Extended Connections Smart Control for Bambu Lab A1 P1 X1 3D Printer

Specification:
Product Name: Panda Branch Plus
Features: MQTT gateway + 10 independent power outputs.
Application Scenarios: Centralized power supply for printer peripherals. Connection of multiple MQTT sub-devices.
Compatibility: P1P / P1S / X1C / X1E / A1 / A1 mini
Power Input: DC 5.5×2.1 (included adapter: 24V / 2.8A)
Built-in Gateway: Integrated MQTT gateway, supports up to 20 sub-devices.
Output Ports: 1 × Type-C (5A), 4 × Type-C (1.5A), 5 × MX3.0 2-pin (2A). Total: 10 independently switchable outputs.
Web UI + BIQU APP Control: Yes (indicated by a checkmark)
Protection Features: ESD Protection, Over-Current Protection, Short-Circuit Protection.
Important Notes: Uses included 24V / 2.8A adapter.
Dimensions: 180 × 20 mm

Features:
1. All-in-One Power Hub: Consolidate your setup with 10 independent power outputs (5x Type-C, 5x MX3.0) to centrally manage and power multiple printer accessories and peripherals.
2. Integrated MQTT Gateway: Transforms your printer into a smart hub, enabling the connection and communication of up to 20 sub-devices like lights, fans, and sensors.
3. High-Current Power Supply: Includes a dedicated 24V / 2.8A power adapter, providing ample and stable current to run several devices simultaneously without power loss.
4. Wireless Web Control: Easily access and control each of the 10 power channels remotely through an intuitive Web UI on your phone or computer, giving you full command of your setup.
5. Comprehensive Safety System: Equipped with ESD, over-current, and short-circuit protection to safeguards both the hub and your connected devices from potential electrical issues.
6. Global Compatibility: The power adapter comes with a full set of international plugs (US, EU, UK, AU), making it ready for use anywhere in the world right out of the box.

Package Include:
1x Panda Branch Plus
1x Power Adapter
2x USB-C Cables
10x Cable Clips
2x M3×14 Screws
2x KM3×15 Screws
