P210 70MHz-6GHz SDR Development Board+Aluminum Alloy Shell ZYNQ7020 AD9361 with Open Source Code for Pluto SDR - Black

Features:

- HAMGEEK P210 is a cost-effective SDR development board

- Open-source code

- Can be run offline

- Supports development via host computers

- Strongerlogic capabilities: Integrated dual-core Cortex-A9 processor (766MHz) and 85K logicunit

- 4 ports: ETH, SD card slot, USB-OTG and USB-UART ports make it easy to use during the development process

- Powerful features and better performance: It is for ZED-FMCOMMS2-3/Open WIFI/Pluto SDR. It also supports development via an host

computer (for official host computer/Matlab/GUN Radio, etc.)

- RF IC: AD9361

- Number of channels: 2T2R MIMO

- Baseband processor: For ZYNQ XC7Z020

- DDR3: 512M

- Host interface: 1G ETH

- Transmission data bandwidth with HOST: P210-12MSPS

- Transmission data bandwidth with HOST (burst sampling): 61.44MSPS

- API: For ADl iiO

- Suitable for hobbyists and makers to develop and DIY

Advantages of HAMGEEK P210:

1. RF:

- RF IC: AD9361

- Frequency Range: 70MHz to 6GHz (AD9361)

- RF Channel: 2RT, 2x2 MIMO

- Signal Bandwidth: 200K to 56MHz (AD9361)

2. Data Processing Unit:

- ZYNQ SoC: XC7Z020CLG400i, dual-core cortex-A9 at 766MHz, 85k logicunit

- DDR3 RAM: 1GByte

- QSPI flash: 32MB

3. Interfaces:

- Gigabit Ethernet

- USB2.0 OTG

- SD card slot

- Integrated USB-JTAG, USB-UART

- Expansion ports supported

4. Clock & Power Supply:

- TCXO: 0.5ppm

- Power supply: Powered via USB port

Hardware Configuration:

- FPGA: ZYNQ-XC7Z020-CLG400

- RF chip: AD9361

- Memory: 512MB 16Bit DDR3

- Interfaces: 1G-ETH/SD-CARD slot/USB-OTG/USB-UART

- SMA ports: 2 for TX and 2 for RX

- Hardware frequency range: 70MHz-6GHz

- Signal bandwidth: 200KHz-56MHz

Package Included:

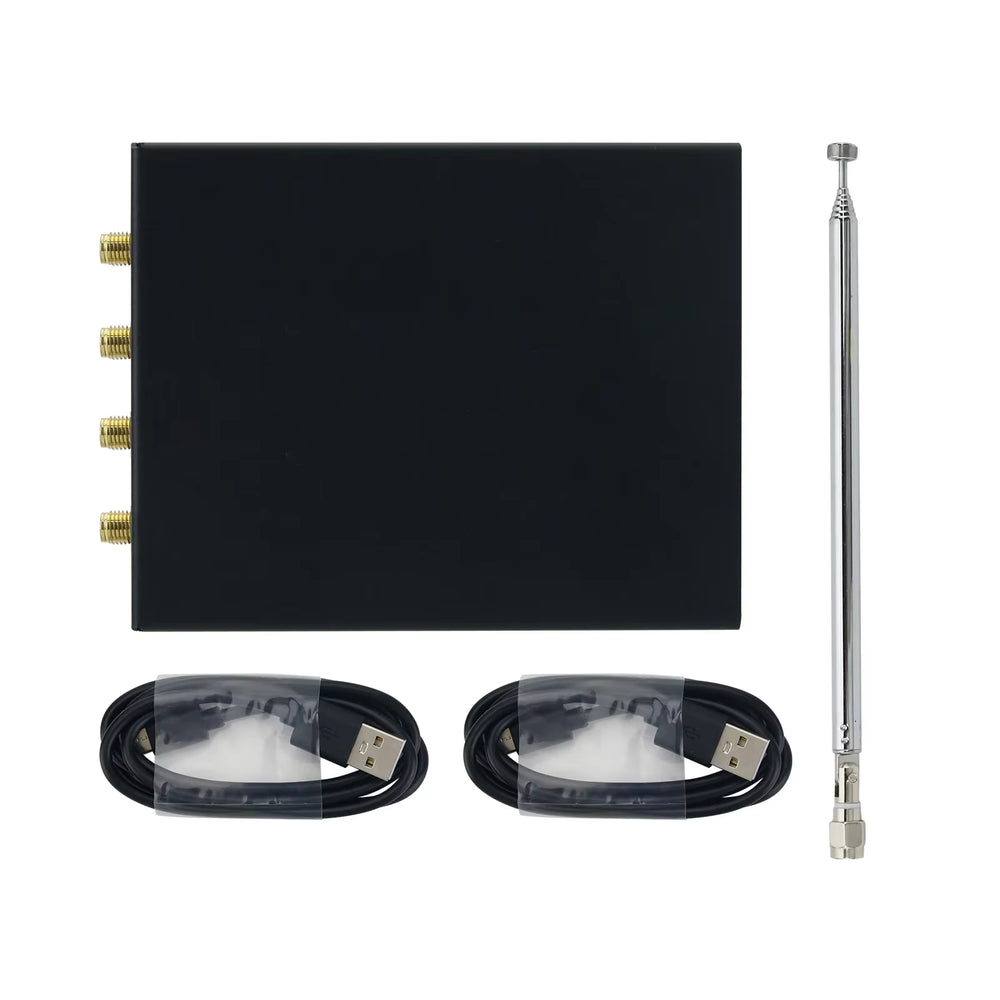

1 x HAMGEEK P210 SDR Development Board with Shell

2 x USB Cables

1 x Antenna
