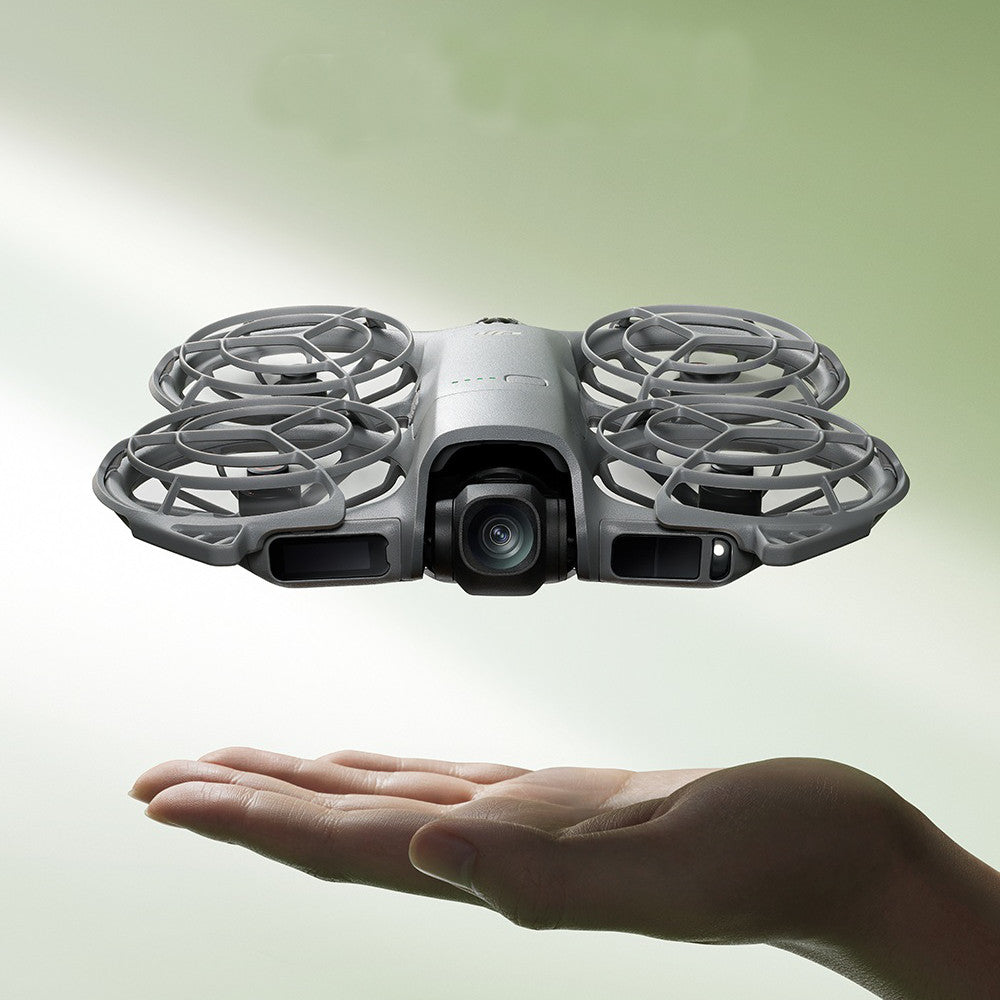

NEO 2 Palm VLOG Selfie 151g Ultralight with 4K 60fps Video 12MP 1/2" CMOS Sensor 2-Axis Gimbal Omnidirectional Obstacle Sensing Gesture Control RC Drone Quadcopter RTF
Description
Note:
The drone has been activated before shipment; please consider this before purchasing.
Specifications:
NEO
|
Takeoff Weight |
151 g (without Digital Transceiver) 160 g (with Digital Transceiver) |
| Dimensions |
147 × 171 × 41 mm (L×W×H, without Digital Transceiver) 167 × 171 × 54 mm (L×W×H, with Digital Transceiver) |
|
| Max Ascension Speed |
0.5 m/s (Cine Mode) 3 m/s (Normal Mode)
5 m/s (Sport Mode) |
|
| Max Descent Speed |
0.5 m/s (Cine Mode) 3 m/s (Normal Mode)
3 m/s (Sport Mode) |
|
| Max Horizontal Speed |
8 m/s (Normal Mode) 12 m/s (Sport Mode)
12 m/s (Tracking Status) |
|
| Max Takeoff Altitude |
2000 m |
|
| Max Flying Time |
Approx. 19 mins (Approx. 17 mins with the Propeller Guards) Each battery allows Neo 2 to perform at least 20 palm takeoff and landing for shoots in succession |
|
| Max Hovering Time |
Approx. 18 mins (16.5 minutes with the Propeller Guards) |
|
|
Max Flying Distance |
7 km |
|
|
Max Wind Speed Resistance |
10.7 m/s (Level 5) | |
| Global Navigation Satelite System |
GPS + Galileo + BeiDou |
|
| Hovering Accuracy Range |
Vertical: ±0.1 m (with vision positioning) ±0.5 m (with satelite positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with satelite positioning) |
|
| Operating Temperature | -10° to 40° C (14° to 104° F) | |
| Internal Storage | 49GB | |
|
Class |
C0 (EU) |
|
Camera
|
Image Sensor |
1/2-inch CMOS Sensor |
| Lens |
FOV: 119.8° Format Equivalent: 16.5 mm
Aperture: f/2.2
Focus: 0.7 m to ∞ |
|
| ISO Range |
Photo 100-3200 (Single Auto) 100-12800 (Burst Auto/Timed Auto) 100-12800 (Manual) Video 100-12800 (Auto) 100-12800 (Manual) |
|
| Shutter Speed |
Video: 1/8000-1/30 s Photo: 1/8000-1/10 s |
|
| Max Image Size |
12 MP Photo 4000×3000 (4∶3)
4000×2250 (16∶9) |
|
| Still Photography Modes |
Single/Timed Shot Single Shot: 12 MP Timed Shot: 12 MP, 2/3/5/7/10/15/20/30/60 s | |
| Photo Format |
JPEG |
|
| Video Resolution |
Horizontal Shooting: 4K (4:3): 3840×2880@60/50/30fps 1080p (4:3): 1440×1080@60/50/30fps 4K (16:9): 3840×2160@100*/60/50/30fps 1080p (16:9): 1920×1080@100*/60/50/30fps Vertical Shooting: 2.7K (9:16): 1512×2688@60/50/30fps |
|
| Video Format |
MP4 |
|
| Max Video Bitrate |
80Mbps |
|
| Supported File System |
exFAT |
|
| Color Mode |
Normal |
|
|
EIS |
Supports RockSteady and turning stabilization off. |
|
Gimbal |
Stabilization |
2-axis mechanical gimbal (tilt, roll) |
| Mechanical Range |
Tilt: -125° to 105° Roll: -43° to 43° | |
| Controllable Range |
Tilt: -90° to 70° |
|
| Max Control Speed (tilt) |
100°/s |
|
| Angular Vibration Range |
±0.01° |
|
| Image Roll Correction |
Supports correction of footage recorded on the drone. |
|
Sensing |
Sensing Type |
Omnidirectional monocular vision system, paired with a downward infrared sensing system and forward-facing LiDAR |
| Forward |
Measurement Range: 0.5-10 m Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s | |
| Backward | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s | |
| Lateral | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s | |
| Upward | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 3 m/s | |
| Downward | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 3 m/s | |
| Infrared Sensor | Forward-Facing LiDAR: Measurement Range: 0.3-8 m (reflectivity > 10%) FOV: Horizontal 60°, Vertical 60° Downward-Facing Infrared Sensor: Measurement Range: 0.3-8 m (reflectivity > 10%) | |
| Operating Environment |
Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 5) Downward: Surfaces with discernible patterns and adequate lighting (lux > 5), and surfaces that are diffusely reflective with a reflectivity above 20% (e.g., walls, trees, people). |
|
|
|
Capacity | 1606 mAh |
| Weight |
46 g |
|
| Nominal Voltage |
7.16 V |
|
| Max Charging Voltage |
8.6 V |
|
| Type |
Li-ion |
|
| Chemical System | LiNiMnCoO2 | |
| Energy |
11.5 Wh |
|
| Charging Temperature |
5° to 40° C (41° to 104° F) |
|
| Charging Time |
When Using the Two-Way Charging Hub (65W max charging power): Approx. 68 minutes to charge three batteries simultaneously from 0% to 100% When Directly Charging the Aircraft Body (15W max charging power): Approx. 70 minutes to charge from 0% to 100% |
|
Video Transmission |
Video Transmission System | Standard: Wi-Fi Video Transmission Optional: DJI Neo 2 Digital Transceiver (O4) |
| Live View Quality | With DJI RC-N3 Remote Controller: Up to 1080p/60fps With DJI Goggles N3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/100fps | |
| Operating Frequency | 2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 26 dBm (FCC) < 14 dBm (CE) < 26 dBm (SRRC) | |
| Communication Bandwidth | Max 60 MHz | |
| Max Transmission Distance (unobstructed, free of interference) | FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km | |
| Max Transmission Distance (unobstructed, with interference) | Strong Interference: Urban landscape, approx. 1.5-3 km Medium Interference: Suburban landscape, approx. 3-6 km Low Interference: Suburb/Seaside, approx. 6-10 km | |
| Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-3 km | |
| Max Download Speed | Wi-Fi: 80 MB/s | |
| Lowest Latency | With DJI RC-N3 Remote Controller or DJI RC 2 Remote Controller: Approx. 120 ms With DJI Goggles N3 (1080p/60fps Video Transmission): Lowest latency at 54 ms With DJI Goggles 3 (1080p/100fps Video Transmission): Lowest latency at 50 ms | |
| Max Video Bitrate | 60 Mbps |
|
| Antenna | 2 antennas, 1T2R | |
|
WiFi & Bluetooth |
WiFi Protocol | 802.11a/b/g/n/ac/ax |
| Operating Frequency | 2.400 GHz to 2.4835 GHz 5.725 GHz to 5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 26 dBm (FCC/SRRC) < 14 dBm (CE) | |
| Effective Operating Range | 500 m | |
| Bluetooth Protocol | Bluetooth 5.2 | |
| Operating Frequency | 2.400 GHz to 2.4835 GHz | |
| Transmitter Power (EIRP) | < 10 dBm | |
Battery Charging Hub |
Input |
5 V, max 5 A 9 V, max 5 A 12 V, max 5 A 15 V, max 4.33 A 20 V, max 3.25 A |
| Output (Charging) |
5 V, 2 A |
|
| Charging Method |
3 batteries charged simultaneously |
|
| Compatibility |
DJI Neo 2 Intelligent Flight Battery |
|
| Charger | Recommended Charger |
DJI 65W Portable Charger USB Power Delivery charger |
RC-N3 Remote Controller:
| Max Operating Time | Without charging any mobile device: 3.5 hours When charging a mobile device: 1.5 hours |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Charging Time | 2 hours |
| Charging Method | 5 V, 2 A |
| Battery Capacity | 2600 mAh |
| Weight | Approx. 320 g |
| Dimensions | 104.2×150×45.2 mm (L×W×H) |
| Operating Frequency | 2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC) |
Features:
- Palm Takeoff & Landing, Gesture Control.
- Faster, Smoother Tracking with ActiveTrack.
- Easy Moment Capture with SelfieShot.
- Omnidirectional Obstacle Sensing and Versatile Flight.
- 4K High-Quality Imaging.
- Lightweight, Portable Design with Full-Coverage Propeller Guards.
Package Included:
DJI NEO 2 (Drone Only):
1 x DJI NEO 2 Aircraft 1 x Intelligent Flight Battery 2 x Spare Propellers 1 x Propeller Guard (Pair) 1 x Gimbal Protector 1 x USB-C to USB-C Date Cable 1 x Screwdriver 4 x Spare Propeller Screw
DJI NEO 2 FLY More Combo (Drone Only):
1 x DJI NEO 2 Aircraft 3 x Intelligent Flight Battery 1 x Two-Way Charging Hub 2 x Spare Propellers 1 x Propeller Guard (Pair) 1 x Gimbal Protector 1 x USB-C to USB-C Date Cable 1 x Screwdriver 4 x Spare Propeller Screw
DJI NEO 2 FLY More Combo (RC-N3):
1 x DJI NEO 2 Aircraft 1 x DJI RC-N3 Remote Controller 3 x Intelligent Flight Battery 1 x Two-Way Charging Hub 2 x Spare Propellers 1 x Propeller Guard (Pair) 2 x RC-N Series RC Cable (USB-C&Lighting) 1 x DJI NEO 2 Digital Transceiver 1 x Gimbal Protector 1 x USB-C to USB-C Date Cable 1 x Screwdriver 4 x Spare Propeller Screw
DJI NEO 2 Motion FLY More Combo:
1 x DJI NEO 2 Aircraft 1 x DJI RC Motion 3 1 x DJI Goggles N3 3 x Intelligent Flight Battery 1 x Two-Way Charging Hub 2 x Spare Propellers 1 x Propeller Guard (Pair) 1 x DJI NEO 2 Digital Transceiver 1 x Gimbal Protector 1 x USB-C to USB-C Date Cable 1 x Screwdriver 4 x Spare Propeller Screw
