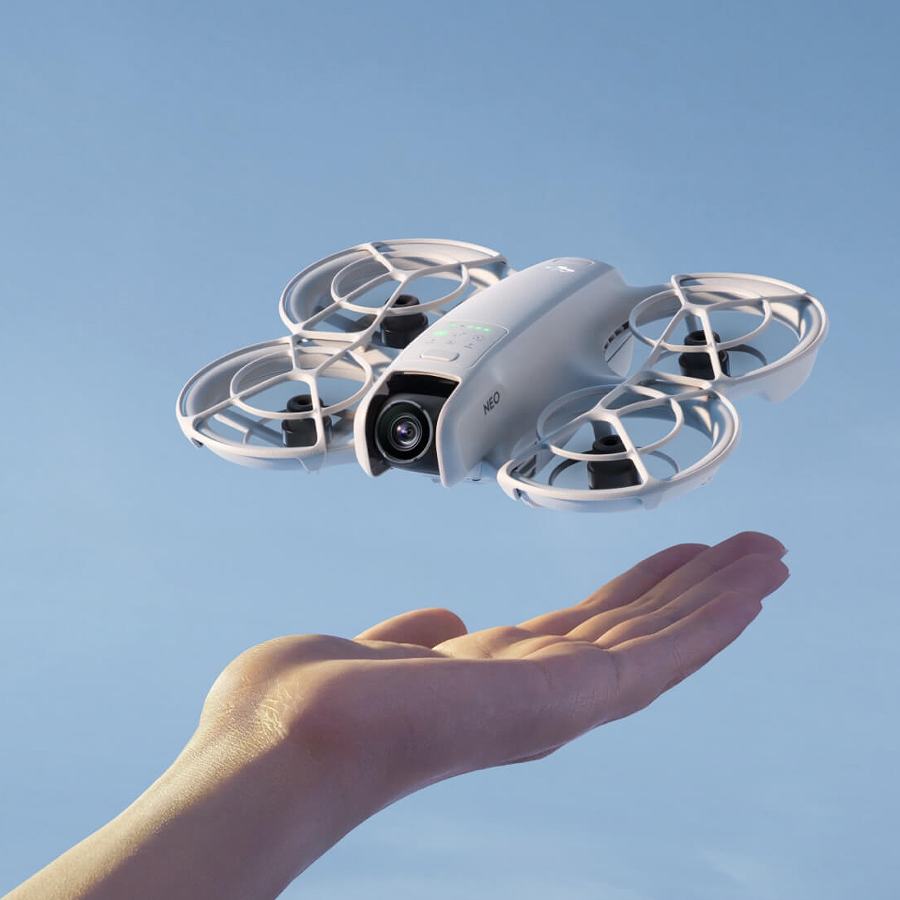

NEO 135g Ultralight with 4K Ultra-Stabillized Video AI Subject Tracking Quickshots Multiple Control Palm Takeoff Landing RC Drone Quadcopter RTF
Description
- Type: Professional Aerial Drone
- Brand: LinkMejor
- Construction: Unfoldable
- Camera Resolution: 4K
Specifications:
NEO
|
Takeoff Weight |
Approx. 135 g |
| Dimensions | 130 × 157 × 48.5 mm (L×W×H) |
|
| Max Ascension Speed |
0.5 m/s (Cine Mode) 2 m/s (Normal Mode)
3 m/s (Sport Mode) |
|
| Max Descent Speed |
0.5 m/s (Cine Mode) 2 m/s (Normal Mode)
2 m/s (Sport Mode) |
|
| Max Horizontal Speed (near sea level, no wind) |
6 m/s (Normal Mode) 8 m/s (Sport Mode)
16 m/s (Manual Mode) |
|
| Max Takeoff Altitude |
2000 m |
|
| Max Flying Time |
Approx. 18 mins (Approx. 17 mins with the Propeller Guards) Each battery allows Neo to perform at least 20 palm takeoff and landing for shoots in succession |
|
| Max Hovering Time |
Approx. 18 mins (Approx. 17 mins with the Propeller Guards) |
|
|
Max Flying Distance |
7 km |
|
|
Max Wind Speed Resistance |
8 m/s (Level 4) |
|
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
|
|
Class |
C0 (EU) |
|
Camera
|
Image Sensor |
1/2-inch Image Sensor |
| Lens |
FOV: 117.6° Format Equivalent: 14 mm
Aperture: f/2.8
Focus: 0.6 m to ∞ |
|
| ISO Range |
100-6400 (Auto) 100-6400 (Manual) |
|
| Shutter Speed |
Video: 1/8000-1/30 s Photo: 1/8000-1/10 s |
|
| Max Image Size |
12 MP Photo 4000×3000 (4∶3)
4000×2256 (16∶9) |
|
| Still Photography Modes |
Single/Timed Shot |
|
| Photo Format |
JPEG |
|
| Video Resolution |
EIS Off: 4K (4:3): 3840×2880@30fps
1080p (4:3): 1440×1080@60/50/30fps
EIS On:
4K (16:9): 3840×2160@30fps
1080p (16:9): 1920×1080@60/50/30fps |
|
| Video Format |
MP4 |
|
| Max Video Bitrate |
75Mbps |
|
| Supported File System |
exFAT |
|
| Color Mode |
Normal |
|
|
EIS |
Supports RockSteady, HorizonBalancing, and turning stabilization off. |
|
Gimbal |
Stabilization |
Single-axis mechanical gimbal (tilt) |
| Mechanical Range |
Tilt: -120° to 120° |
|
| Controllable Range |
Tilt: -90° to 60° |
|
| Max Control Speed (tilt) |
100°/s |
|
| Angular Vibration Range |
±0.01° |
|
| Image Roll Correction |
Supports correction of footage recorded on NEO Live view correction is unavailable only when used with additional accessories. |
|
Sensing |
Sensing Type |
Downward Visual Positioning |
| Downward |
Precise Hovering Range: 0.5-10 m |
|
| Operating Environment |
Downward: Non-reflective, discernible surfaces with diffuse reflectivity of >20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions) |
|
|
|
Capacity | 1435 mAh |
| Weight |
Approx. 45 g |
|
| Nominal Voltage |
7.3 V |
|
| Max Charging Voltage |
8.6 V |
|
| Type |
Li-ion |
|
| Energy |
10.5 Wh |
|
| Charging Temperature |
5° to 40° C (14° to 104° F) |
|
| Charging Time |
When Using the Two-Way Charging Hub (60W max charging power): Approx. 60 minutes to charge three batteries simultaneously from 0% to 100% When Directly Charging Neo (15W max charging power): Approx. 50 minutes to charge from 0% to 100% |
|
Wi-Fi |
Protocol |
802.11a/b/g/n/ac |
| Operating Frequency |
2.400-2.4835 GHz
5.725-5.850 GHz |
|
| Transmitter Power (EIRP) |
2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz:
＜20 dBm (FCC/SRRC)
＜14 dBm (CE) |
|
|
Effective Operating Range |
50 m |
|
|
Bluetooth |
Protocol |
Bluetooth 5.1 |
| Operating Frequency |
2.400-2.4835 GHz |
|
| Transmitter Power (EIRP) |
＜ 10 dBm |
|
Battery Charging Hub |
Input |
5 V, 3 A 9 V, 3 A
12 V, 3 A
15 V, 3 A
20 V, 3 A |
| Output (Charging) |
5 V, 2 A |
|
| Charging Type |
3 batteries charged simultaneously |
|
| Compatibility |
LinkMejor Neo Intelligent Flight Battery |
|
| Charger | Recommended Charger |
LinkMejor 65W Portable Charger USB Power Delivery charger |
RC-N3 Version:
| LinkMejor RC-N3 Remote Controller | Operating Temperature | Without Charging Any Mobile Device: 3.5 hours When Charging a Mobile Device: 1.5 hours |
| Operating Temperature |
-10° to 40° C (14° to 104° F) | |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
|
| Charging Time |
2 hours |
|
| Charging Type |
5 V, 2 A |
|
| Battery Capacity |
2600 mAh |
|
| Weight |
Approx. 320 g |
|
| Dimensions |
104.2×150×45.2 mm (L×W×H) |
|
| Operating Frequency |
2.400-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz |
|
Transmitter Power (EIRP) |
2.4 GHz: ＜33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
＜33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC) |
|
| Video Transmission | Video Transmission System | O4 |
| Live View Quality |
With LinkMejor RC-N3 Remote Controller: Up to 1080p/60fps With LinkMejor Goggles 3 plus LinkMejor RC Motion 3/LinkMejor FPV Remote Controller 3: Up to 1080p/60fps |
|
| Operating Frequency |
2.400-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz |
|
| Transmitter Power (EIRP) |
2.4 GHz: ＜26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
＜26 dBm (FCC)
< 14 dBm (CE)
< 26 dBm (SRRC) |
|
| Communication Bandwidth |
Max 40 MHz |
|
| Max Transmission Distance
(unobstructed, free of interference) |
FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km |
|
|
Max Transmission Distance
(unobstructed, with interference) |
Strong Interference (urban landscape): Approx. 1.5-3 km
Medium Interference (suburban landscape): Approx. 3-6 km
Low Interference (suburb/seaside): Approx. 6-10 km |
|
| Max Transmission Distance
(obstructed, with interference) |
Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km |
|
| Max Download Speed |
Wi-Fi: 25 MB/s |
|
| Lowest Latency |
With LinkMejor RC-N3 Remote Controller: Approx. 120 ms |
|
| Max Video Bitrate |
50Mbps |
|
| Antennas | Two antennas, 1T2R |
Features:
- 135g Only, Light & Portable
- Palm Takeoff & Landing
- Easy Editing with QuickShots
- Multiple Control Options
- 4K Ultra-Stabilized Video
- Full-Coverage Propeller Guards
Package Included:
LinkMejor NEO (NO RC):
1 x LinkMejor NEO 1 x Intelligent Flight Battery 1 x Propeller Guard 2 x Spare Propellers 1 x Gimbal Protector 1 x Type-C to Type-C PD Cable 1 x Screwdriver 4 x Spare Propeller Screw
LinkMejor NEO Combo (RC-N3):
1 x LinkMejor NEO
1 x LinkMejor RC-N3 Controller
3 x Intelligent Flight Battery
1 x Two-Way Charging Hub
1 x Propeller Guard
2 x Spare Propellers
1 x Gimbal Protector
1 x RC Cable (USB-C Connector)
1 x Type-C to Type-C PD Cable
1 x Screwdriver
4 x Spare Propeller Screw
