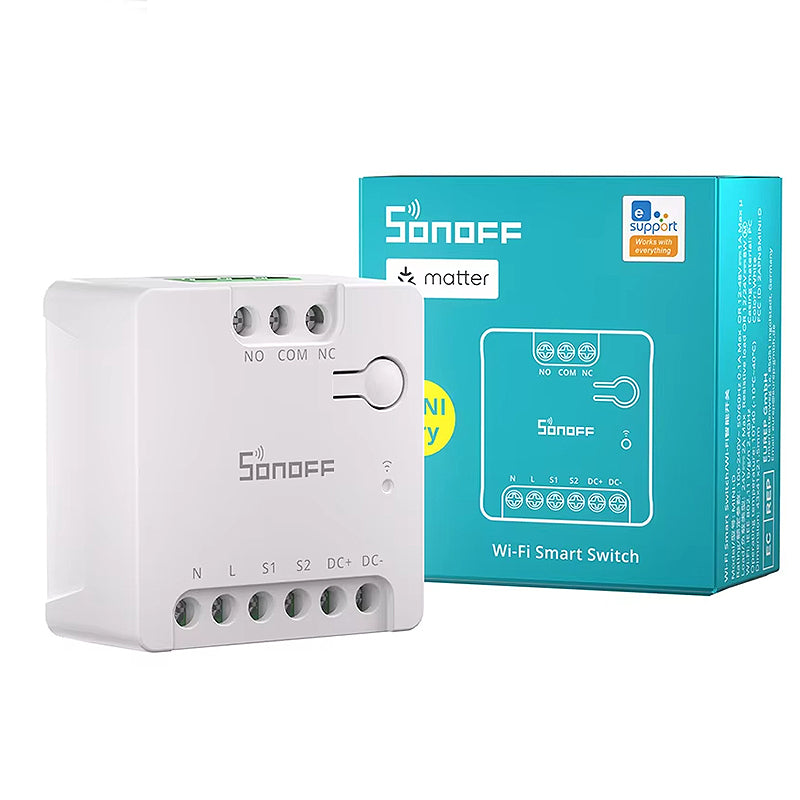

MINI-D Dry WiFi Smart Switch with Matter Dry Contact Output AC/DC Input Compatible Alexa & Google Home for Garage Doors Boilers Low Power DC Motors/Solenoid Valves

This product is compatible with the eWeLink APP, but not the Tuya APP.

SONOFF MINI-D USER MANUAL：

http://myosuploads3.banggood.com/products/20250610/20250610074918SKUL07847UserManual.pdf

Specification:
Model: MINI-D
Color: White
Net Weight: 34.5g
Casing Material: PC
Wireless Connection: Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Max Load: 24V---2A Max Resistive Load OR 12/24V---8W
Rating: 100-240V~ 50/60Hz 0.1A Max OR 12-48V---1A Max

Features:
1. Matter Protocol Compatibility: Seamlessly integrates with platforms like Alexa, Google Home, and Apple Home.
2. Flexible Input Options: Supports both AC (110-240V) and DC (12-48V) inputs.
3. Versatile Dry Contact Output: Supports both Normally Open (NO) and Normally Closed (NC) configurations.
4. Low-Power DC Motor Support: Can handle low-power DC motor loads up to 8W max.
5. Advanced Smart Control: Allows creation of smart scenes, group control, and power-on state management via the eWeLink app.
6. Upgraded ESP32 Chip: Ensures reliable performance and enhanced connectivity.

Package Include:
1x SONOFF MINI-D Dry Contact WiFi Smart Switch
1x User Manual
