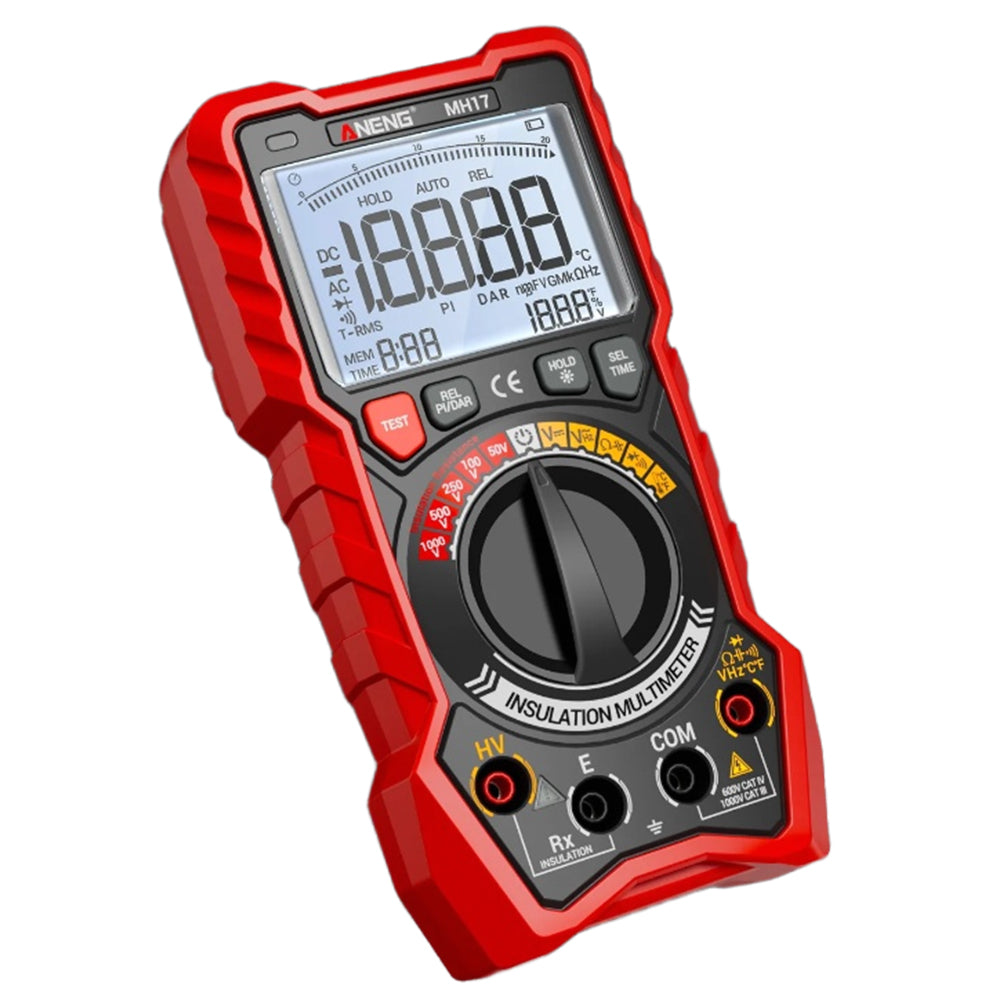

MH17 Insulation Multimeter True RMS 19999 Count Megohmmeter AC DC Voltage Tester Capacitance Resistance Rechargeable Lithium Battery High Voltage Alarm Backlit LCD Auto Ranging Flashlight
$49.49
In Stock
Description
Specifications:
AC Voltage: 0V–1000V | Resolution: 0.0001V–0.1V
DC Voltage: 0V–750V | Resolution: 0.0001V–0.1V
Capacitance: 0nF–99.99mF | Resolution: 0.001nF–0.01mF
Resistance: 0Ω–19.99MΩ | Resolution: 0.01Ω–0.01MΩ
Insulation Resistance: 0.001MΩ–20GΩ
Insulation Voltage Options: 0V/100V/250V/500V/1000V
Frequency Measurement: 9.999Hz–999.9kHz | Resolution: 0.001Hz–0.1kHz
Temperature: -20 to 1000°C (-4 to 1832°F) | ±1°C/±1°F
True RMS Function: Supported
Maximum Count: 19,999
Material: ABS/PVC/Silicone
Battery Type: 14500 Lithium battery (Rechargeable)
Features:
1. Dual Measurement Functions
Combines insulation resistance testing and multimeter capabilities for measuring voltage, resistance, capacitance, and more in one versatile device.
2. Enhanced Safety Measures
Includes high-voltage alarm, zero-fire wire detection, and stylus protected test pens for added safety during operation.
3. Professional Insulation Analysis
Allows Polarization Index (PI) and Dielectric Absorption Ratio (DAR) assessments for in-depth performance evaluation in industrial and HVAC systems.
4. User Comfort and Utility
Equipped with a backlit LCD, flashlight, and auto-ranging functionality to ensure convenience during usage, even in dim environments.
5. Rechargeable Lithium Battery
Features a rechargeable design with a long-lasting lithium battery, reducing the hassle of frequent replacements and improving portability.
Package Included:
Basic Version:
1 x Packing box
1 x Insulation resistance multimeter
1 x Storage bag
1 x User manual
2 x Alligator clips
3 x 14500 Lithium batteries
1 x Battery charger
1 x Charging cable
1 x Test pen line
1 x Temperature cable
Pro Version:
1 x Packing box
1 x Insulation resistance multimeter
1 x Storage bag
1 x User manual
2 x Alligator clips
3 x 14500 Lithium batteries
1 x Battery charger
1 x Charging cable
1 x Test pen line
1 x Temperature cable
1 x 16-in-1 Combined Cable
