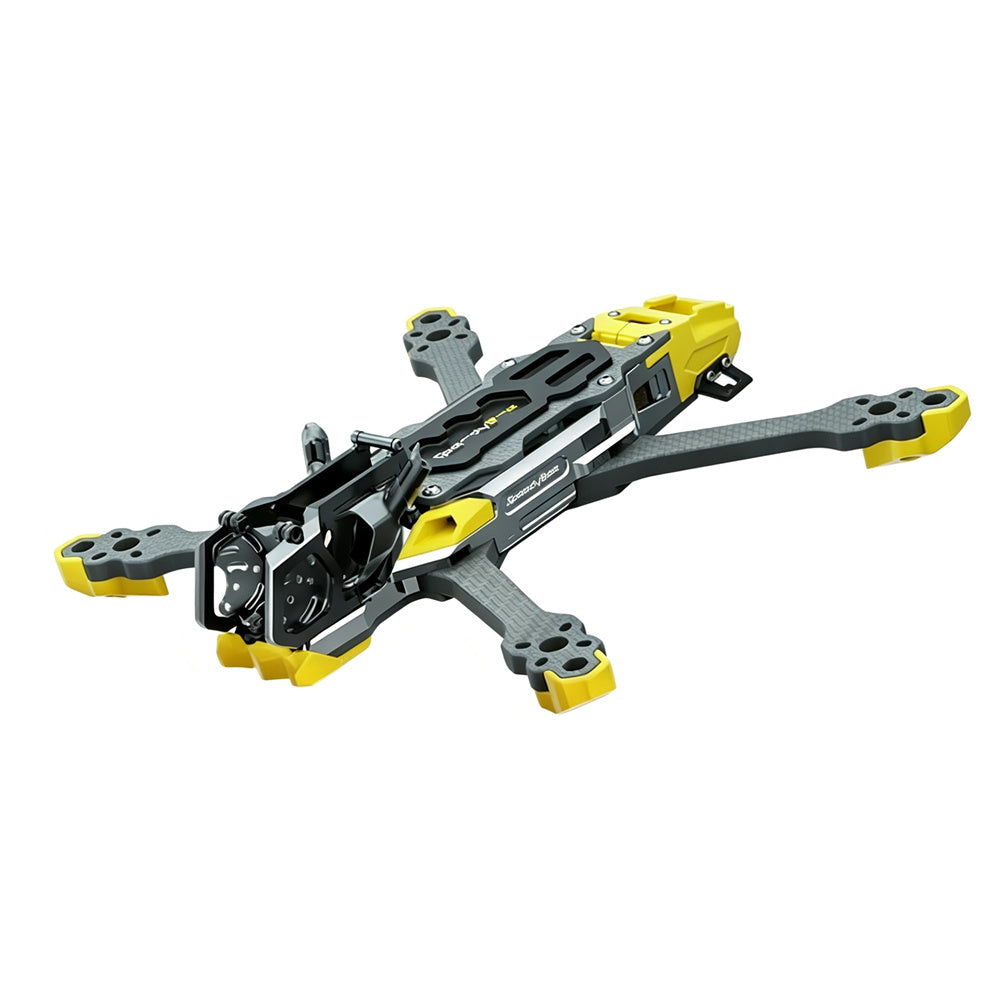

Master5 V3 224mm Wheelbase 5.1 Inch Frame Kit for DIY Freestyle RC FPV Racing Drones
Description
Specification:
Model: Master5 V3
Product Name: 5.1 Inch 224mm Wheelbase Frame Kit
| Parameter | Specification |
| Item | SpeedyBee Master5 V3 Frame |
| Supported Propeller | 5.1 Inch |
| Wheelbase | 224mm |
| Top Plate Thickness | 2.5mm (T300 3K) |
| Bottom Plate Thickness | 2.5mm (T300 3K) |
| Arm Thickness | 6mm (T300 3K) |
| Side Plate Material | Aviation Aluminum Alloy |
| FC Stack Mounting | 30.5mm×30.5mm / 25.5mm×25.5mm / 20mm×20mm |
| Motor Mounting | 16mm×16mm / 19mm×19mm |
| Electronics Layer Height | 20mm |
| VTX Mounting | Speedybee Series Quick-Release VTX Module |
| Frame Weight | 207±5g (Including Canopy and Landing Pads) |
| Injection Molded Parts | Landing Pads |
| 3D Printed Parts | Multi-Function Tail Mount, Receiver Mount, Receiver Antenna Protector, Front Lip Protector, Left/Right Air Intake Covers |
Feature:
- Integrated CNC aluminum side plates maximize 20mm internal space for electronics, lower the center of gravity and enhance overall frame stability for aggressive FPV flying.
- Modular camera nose supports quick-swap SpeedyBee HD transmission units and DJI O3/O4 Air Units, giving pilots flexible upgrades for freestyle and cinematic recording.
- Micro DC hybrid layout combines DC and wide X advantages, keeping props out of view for clean footage while maintaining responsive handling and precise control.
- Reinforced T300 3K carbon fiber arms with independent mounting allow fast arm replacement without full disassembly, ideal for frequent crashes during practice sessions.
- Built‑in RGB LED “meteor” strips and high‑power beeper increase night‑flight visibility, make wiring simple via integrated board, and provide clear location alerts after landing.
Package Included:
1 x SpeedyBee Master5 V3 Frame
