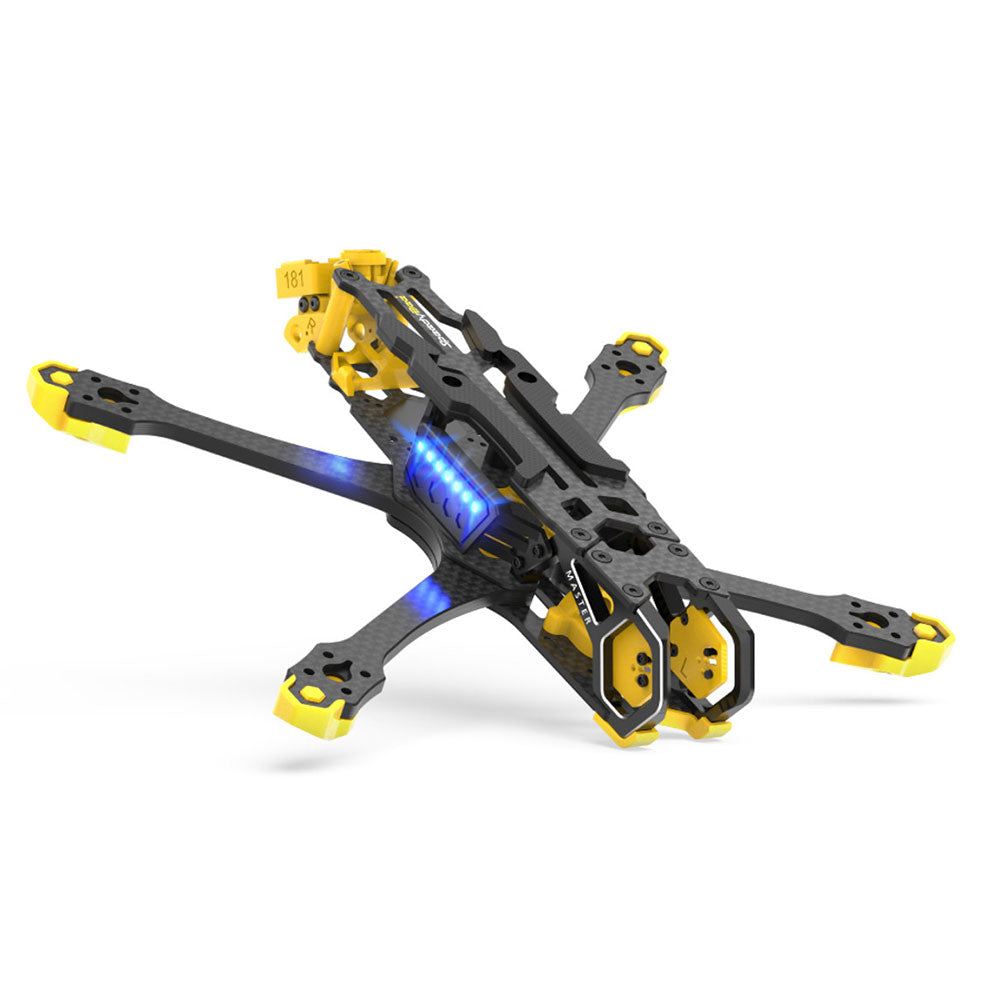

Master 5 V2 Spare Part 226mm Wheelbase 5 Inch Frame Kit / GPS Mount / Antenna Base for DIY Freestyle RC FPV Racing Drone
Description
- RC Drone Spare Parts: Frame Kit
Specifications:
Model: Master 5 V2
Optiona Version: Empty Frame Kit/Receiver Base/Capacitor & Beeper Base/ 121/181/220/151/880GPS Mount/
Antenna Base for DJI O3 /LED Protective Tube/Motor Wire Protective Sleeve/Stack Side Plate
Frame Kit Specification
Frame |
Master 5 V2 |
Wheelbase |
226mm |
Weight |
About 140g (non-3D printed parts included) |
Top plate thickness |
2.5mm(T300 3K) |
Middle plate thickness |
2mm(T300 3K) |
Bottom plate thickness |
2.5mm(T300 3K) |
Arm thickness |
5mm(T300 3K) |
Camera side plate thickness |
2mm TUPC |
Anti-vibration stack structure hardness |
Yellow HB80ã€Translucent HB50 |
3D printed part |
Yellow TPU |
Motor circlip spacing |
Φ8mm |
Compatible propellers |
5-5.1 inch |
Mounting holes for motors |
16*16mm |
FC mounting hole |
30.5×30.5(M3) & 20×20mm (M3) |
Drone head |
7075 CNC aluminum alloy |
Aluminum standoff |
7075 M3*23mm*(6mm/4.7mm)ã€M3*23mm*(4.6mm) |
Internal installation height |
23-30mm |
Standard antenna installation supporT |
SMA (single), 4mm for DJI O3, RunCam Link |
Standard GPS base size |
18*18*8mm (other size requiresan additional purchase) |
Rear Support Mounting Holes |
20*20mm - 25.5*25.5mm - 30.5*30.5mm |
Detachable stack protective plate RGB LED |
included |
Motor wire protection |
included |
|
Included 3D printed parts |
base for Gopro, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module |
Buzzer |
TMB12A05 |
Package Included:
| Version | Package Includded |
| Empty Frame Kit |
1x Master 5 V2 Frame 2x 250mm strap 1x bag of Screws & standoffs 1x Set of 3D Printing TPU Parts 1x 8pin cable 1x Red cable & black cable 4x LED Protective Tube 1x Beep |
| TPU Receiver Mount | 1x 3D Printing TPU Mount for Receiver |
|
Capacitor & Beeper Base |
1x 3D Printing TPU Base for Capacitor & Beeper |
|
121/181/220/151/880GPS Mount/ ( Optional) |
1x 3D Printing TPU GPS Mount for 121/181/220/151/880GPS |
|
Antenna Base for DJI O3 |
1x 3D Printing TPU Antenna Base for DJI O3 |
|
LED Protective Tube |
4x LED Protective Tube |
|
Motor Wire Protective Sleeve |
4x Motor Wire Protective Sleeve |
|
Stack Side Plate |
1x Stack Side Plate L+R |
