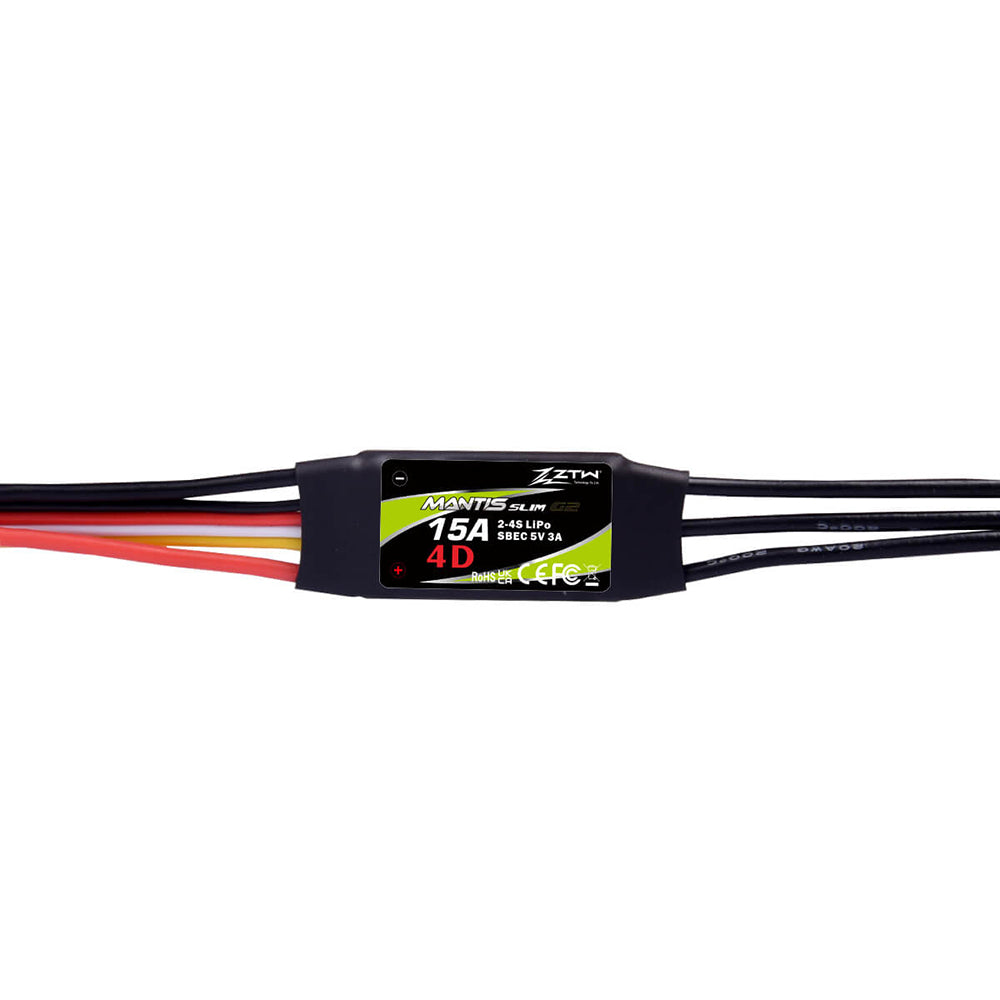

Mantis Slim 15A G2 New 32-Bit Brushless ESC With 5V/3A BEC 2-4S Forward/ Reverse for F3P 3D/ 4D RC Airplane

• RC Drone Spare Parts: ESC
• ESC Ampere: 0-20A

Specifications:

Brand Name: LinkMejor

Product Name: Mantis Slim 15A G2

PN#Model: 2015211

Input Wires: 20# 60mm(Red"1/Black"1)

Output Wires: 20# 60mm (Black*3)

Input Connectors: JST Female

Output Connectors: 2.0 Gold Female Connector

Continuous Current: 15A

Burst Current: 30A

Input Voltage: 2-4S LiPo /5-12NC

BEC Output: 5V / 3A

ESC programming via: Programming Way Transmitter/LCD Program Card G2/Android&lOS APP

Firmware Upgrade: Not Supported

Size: 25.5*15.0*5.2mm

Weight: 9g

Features:
- With the new unique circuit design and mature PCB board craft, and equipped with the powerful and high performance 32-bit microprocessor, which makes the ESC more durable and reliable.

- Well designed mini size and lighg weight fit for the indoor F3P airplane, and excellent customized algorithm makes the ESC respond more quickly.

- Super accurate and stable throttle linearity makes the ESC more smoother, enjoy your 3D/4D flying better.

- Two modes "Foward Only" and "Forward and Reverse" for ultimate 3D/4D flying.

- With synchronous rectification, it can significantly reduce the heating of the ESC, which makes the ESC is more energy-saving and driving efficiency.

- Built-in upgraded high power switching BEC 6V/3A, peak current can up to 5A, ensuring provide strong power output for servo.

- Multiple protection features: including overheat, low-voltage cutoff, signal loss, and more.

- Easily programmable via phone app, LCD card, or transmitter.
