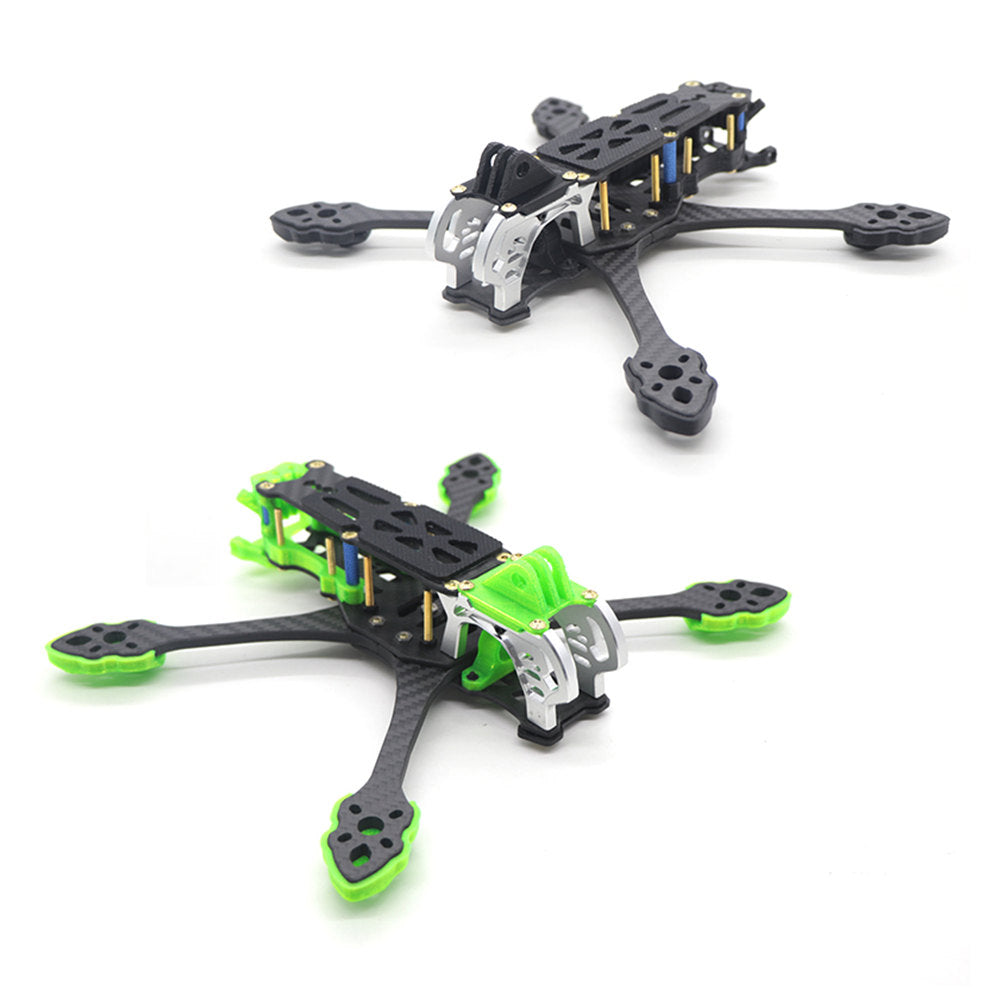

MAK5 225mm Wheelbase 3K Carbon Fiber 5 Inch Freestyle Frame Kit Support DJI Air Unit Digital System for RC Drone FPV Racing - Black

$36.99

In Stock

Description

Features:

- 7075 Aluminum alloy Side Plate, more durable and Pretect FPV Camera more effectively

- X Frame Arm design, flying more stable and flexible

- Compatible with DJI / Vista HD digital System and Analog VTX

- 19-20mm Camera Mounting Width

- Support 16x16mm and 19x19mm Motor Mounting Hole

- With TPU Mounting Base for Gopro

Specification:

Model: MAK5

Item Name: 225mm Wheelbase 5 Inch Frame Kit

Wheelbase: 225mm

Material: 3K Carbon Fiber

Upper Plate Thickness: 2.5mm

Bottom Plate Thickness: 2.5mm

Arm Plate Thickness: 5mm

Weight: 170g approxi. ( include 3D Printing Parts)

Flight Controller Mounting Hole: 30.5x30.5mm

VTX Mounting Hole: 30.5x30.5mm, 20x20mm

Motor Mounting Hole: 16x16mm, 19x19mm

Camera Mounting Hole: 19-20mm

Inner Height: 25mm

Screw Size: M2 and M3

Recommend Parts: ( NOT Included)

FC & ESC	iFlight BLITZ F7 V1.1 FC & 45A BL_S 4In1 ESC Stack VTX	HGLRC Zeus F748 Stack F722 F7 FC & 48A 4in1 ESC
Brushless Motor	iFlight XING-E Pro 2306 1700KV 3-6S Motor	iFlight XING2 2207 1855KV / 2755KV 4-6S Brushless Motor
Propeller	Gemfan Windancer 5043 5x4.3 5 Inch 3-Blade Prop	iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller
VTX & Camera	Caddx Ratel 2 1/1.8'' Starlight 1200TVL	RunCam Air Unit
Lipo Battery	TATTU R-LINE Version 3.0 14.8V 1300mAh 120C 4S Lipo	iFlight FULLSEND 22.2V 1300mAh 130C 6S Lipo

Package Included:

1x LinkMejor MAK5 Frame Kit
